HOOD AND FRONT BODY WORK - Z20NAE92AL/AR/BL/BR/F92AL/AR Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

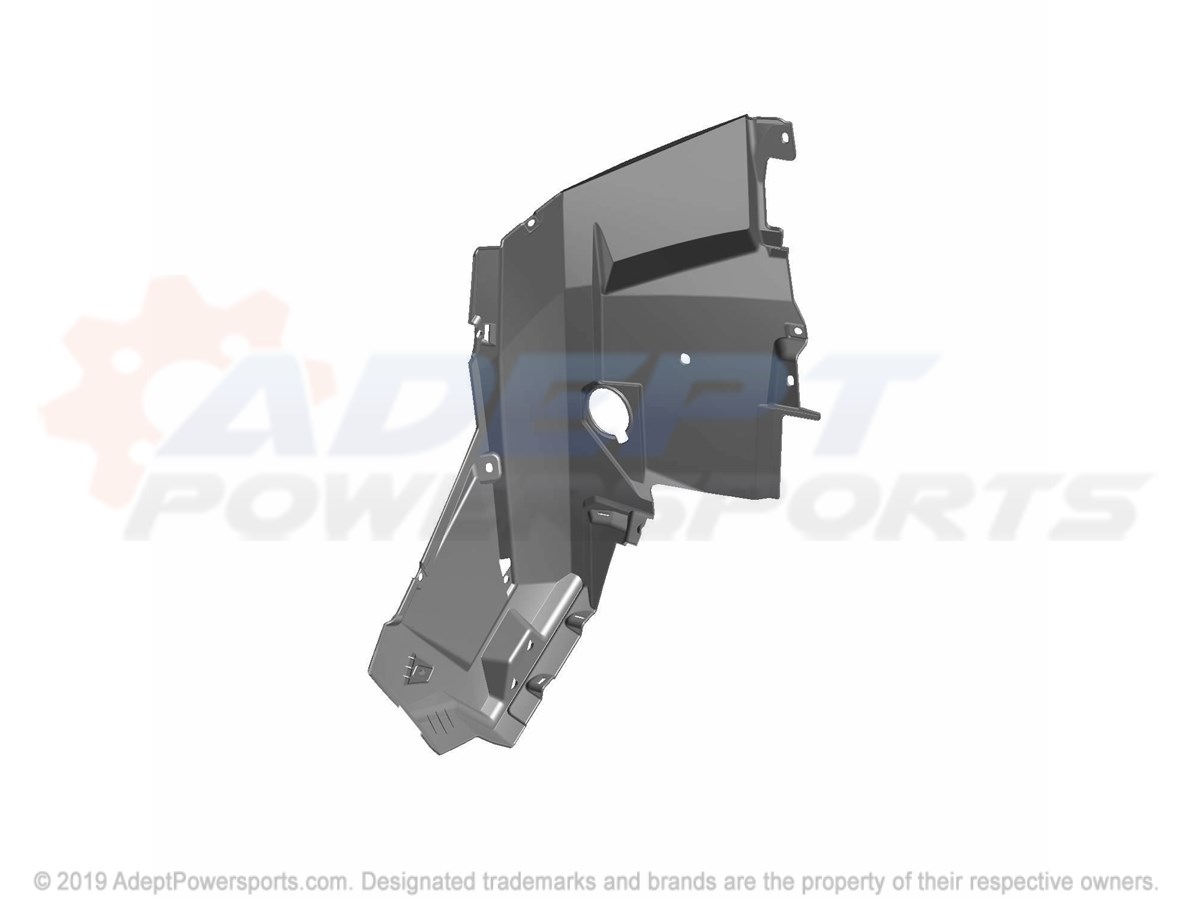

Polaris 5439760-070 Fender, Front, Flair, Lh, Black

FENDER, FRONT, FLAIR, LH, BLACK

Part #: 5439760-070 Required per assembly: 1
Currently Not Available
2

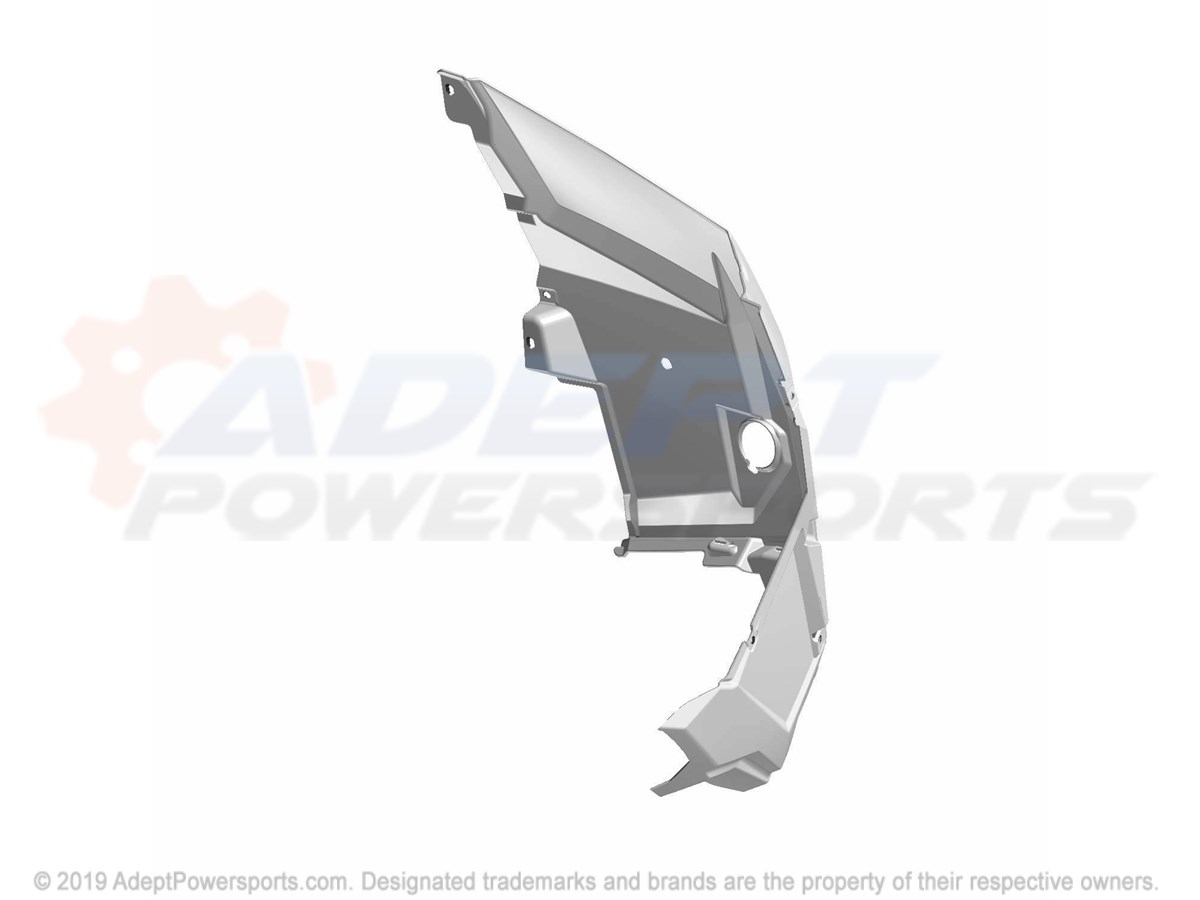

Polaris 5439761-070 Fender, Front, Flair, Rh, Black

FENDER, FRONT, FLAIR, RH, BLACK

Part #: 5439761-070 Required per assembly: 1
Currently Not Available
3
Polaris 5454653-293 Fender-Fr, Pntd, Lh, Indy, Red

FENDER-FR, PNTD, LH, INDY, RED

Part #: 5454653-293 Required per assembly: 1 Note: E92AR
Currently Not Available
3
Polaris 5454653-464 Fender-Fr, Pntd, Lh, St.Blk

FENDER-FR, PNTD, LH, ST.BLK

Part #: 5454653-464 Required per assembly: 1 Note: E92AL
Currently Not Available
4
Polaris 5454654-464 Fender-Fr, Pntd, Rh, St.Blk

FENDER-FR, PNTD, RH, ST.BLK

Part #: 5454654-464 Required per assembly: 1 Note: E92AL
Currently Not Available
4
Polaris 5454654-293 Fender-Fr, Pntd, Rh, Indy, Red

FENDER-FR, PNTD, RH, INDY, RED

Part #: 5454654-293 Required per assembly: 1 Note: E92AR
Currently Not Available
5
Polaris 5454429-266 Hood-Center, Pnt, Cr, Blk

HOOD-CENTER, PNT, CR, BLK

Part #: 5454429-266 Required per assembly: 1 Note: E92AL
Currently Not Available
5
Polaris 5454429-293 Hood-Center, Pnt, I.Red

HOOD-CENTER, PNT, I.RED

Part #: 5454429-293 Required per assembly: 1 Note: E92AR
Currently Not Available
6
Polaris 5451143 Latch-1/4 Turn

LATCH-1/4 TURN

Part #: 5451143 Required per assembly: 2
Currently Not Available
7
Polaris 5413428 Grommet, Latch

GROMMET, LATCH

Part #: 5413428 Required per assembly: 2
Currently Not Available
8
Polaris 7555919 Washer

WASHER

Part #: 7555919 Required per assembly: 2 Note: Washer
Currently Not Available
9
Polaris 5437772 Grommet-4Mm

GROMMET-4MM

Part #: 5437772 Required per assembly: 2
Currently Not Available
10
Polaris 7519650 Screw

SCREW

Part #: 7519650 Required per assembly: 6
Currently Not Available
11
Polaris 7519840 Screw

SCREW

Part #: 7519840 Required per assembly: 2
Currently Not Available
12

SCREW

Part #: 7519841 Required per assembly: 2
Currently Not Available
13
Polaris 7547674 Nut, U-Type

NUT, U-TYPE

Part #: 7547674 Required per assembly: 14
$2.99
$1.73
-
+
Add to cart
14

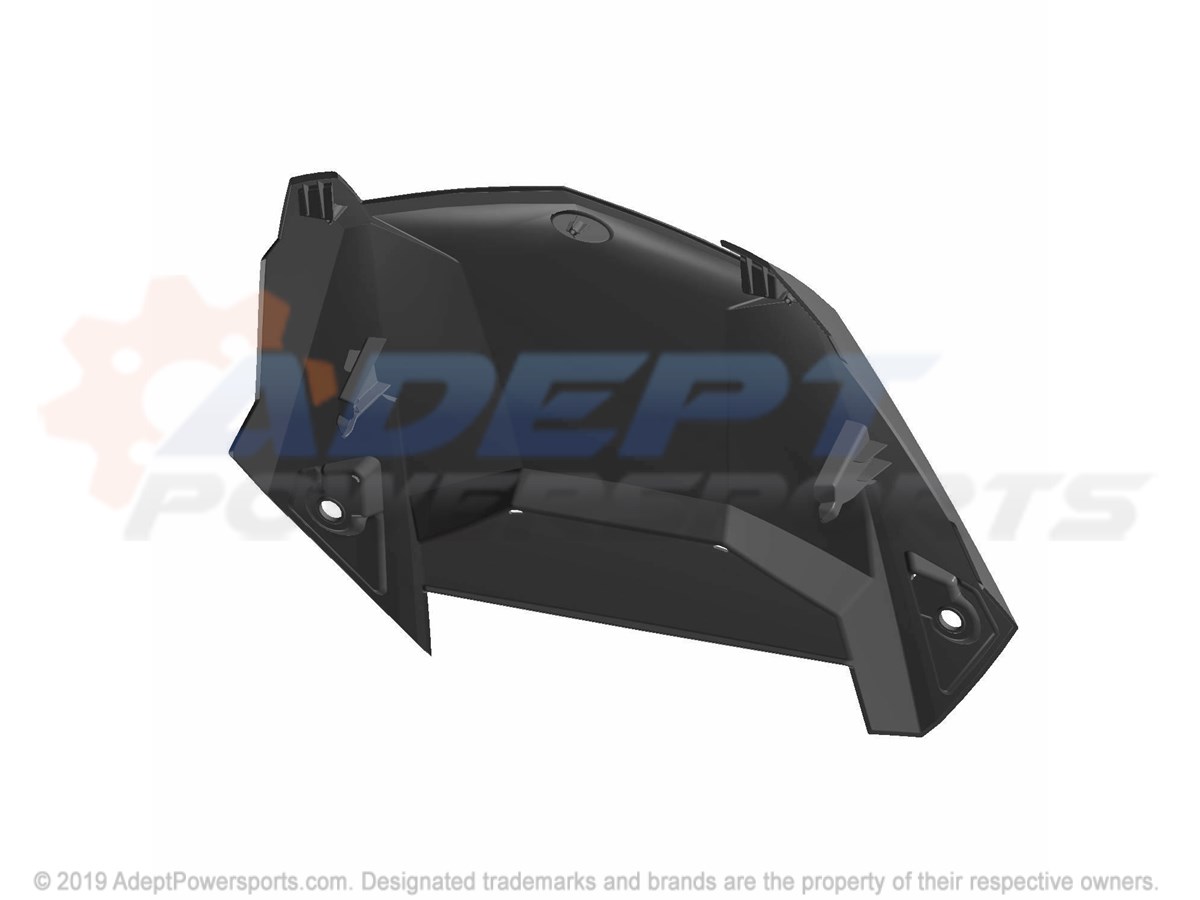

Polaris 5454297-070 Grille-Center, Hood, Blk

GRILLE-CENTER, HOOD, BLK

Part #: 5454297-070 Required per assembly: 1
Currently Not Available
15
Polaris 7518238 Screw

SCREW

Part #: 7518238 Required per assembly: 3
$3.79
$1.73
-
+
Add to cart
16
Polaris 7519112 Scr-Txth-M6x1.0X20 T40 Zpb

SCR-TXTH-M6X1.0X20 T40 ZPB

Part #: 7519112 Required per assembly: 2
Currently Not Available
