Cooling System replacement parts for 2020 Polaris RZR XP 1000 Tractor/EU/ZUG (R02)

OEM Parts Polaris 2020 Polaris RZR XP 1000 Tractor/EU/ZUG (R02) Cooling System

COOLING SYSTEM Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

-	ASSEMBLY, RADIATOR Part #: 1240712 Required per assembly: 1 Note: INCL. 2-5 Currently Not Available
2	CAP Part #: 1240694 Required per assembly: 1 Currently Not Available
3	ASSEMBLY, RADIATOR, CORE Part #: 1240745 Required per assembly: 1 Currently Not Available
4	FAN ASSEMBLY Part #: 2412447 Required per assembly: 1 Currently Not Available
5	BOLT Part #: 7519585 Required per assembly: 4 Currently Not Available
6	CAP, OVERFLOW Part #: 5430743 Required per assembly: 1 Currently Not Available
7	CAP, PLUG9X, (GREEN), FLEX, TEMP Part #: 5433774 Required per assembly: 1 Note: Plug, Cap ~~$4.79~~ $2.92 - + Add to cart
8	TANK, SURGE Part #: 5439202 Required per assembly: 1 Currently Not Available
9	GASKET Part #: 5810279 Required per assembly: 1 ~~$4.99~~ $2.92 - + Add to cart
10	FUEL, LINE, 1/4, ID(1525, CM.) Part #: 8450003-1525 Required per assembly: 1 Currently Not Available
11	GROMMET-TANK FITTING Part #: 7052028 Required per assembly: 4 Note: Grommet Currently Not Available
12	TUBE-COOLANT, 1" Part #: 5141612 Required per assembly: 1 Currently Not Available
13	BRKT-COOLANT, TUBE, BLK Part #: 5259433-329 Required per assembly: 1 Currently Not Available
14	BRKT-COOLANT, TUBE, BLK Part #: 5260766-329 Required per assembly: 1 Currently Not Available
15	BRACKET-COOLANT TUBE Part #: 5451221 Required per assembly: 4 Currently Not Available
16	SCREW Part #: 7519001 Required per assembly: 2 Currently Not Available
17	HOSE, UPPER, RADIATOR Part #: 5414528 Required per assembly: 1 Currently Not Available
18	HOSE, ENGINE, OUTLET, REAR Part #: 5414530 Required per assembly: 1 Currently Not Available
19	HOSE, LOWER, RADIATOR, LONG Part #: 5414532 Required per assembly: 1 Currently Not Available
20	HOSE, ENGINE, INLET, REAR Part #: 5414976 Required per assembly: 1 Currently Not Available
21	CLAMP, SPRINGBAND Part #: 7080844 Required per assembly: 6 Currently Not Available
22	BRACKET, UPPER, RADIATOR, MOUNT, BLACK Part #: 5256879-329 Required per assembly: 2 Currently Not Available
23	CLAMP, HOSE Part #: 7081192 Required per assembly: 2 Currently Not Available
24	SCREW Part #: 7518529 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
25	SCREW Part #: 7518158 Required per assembly: 2 Currently Not Available
26	TUBE-COOLANT, 1" Part #: 5141611 Required per assembly: 1 Currently Not Available
27	SCREW Part #: 7512026 Required per assembly: 1 Note: Screw Currently Not Available
28	SCREW Part #: 7518555 Required per assembly: 2 Note: Bolt, Flange Currently Not Available
29	RIVET Part #: 7661855 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
30	BRKT-BUMPER, MNT, FR, UP, LH, BLK Part #: 5264780-329 Required per assembly: 1 Currently Not Available
31	BRKT-BUMPER, MNT, FR, UP, RH, BLK Part #: 5264781-329 Required per assembly: 1 Currently Not Available

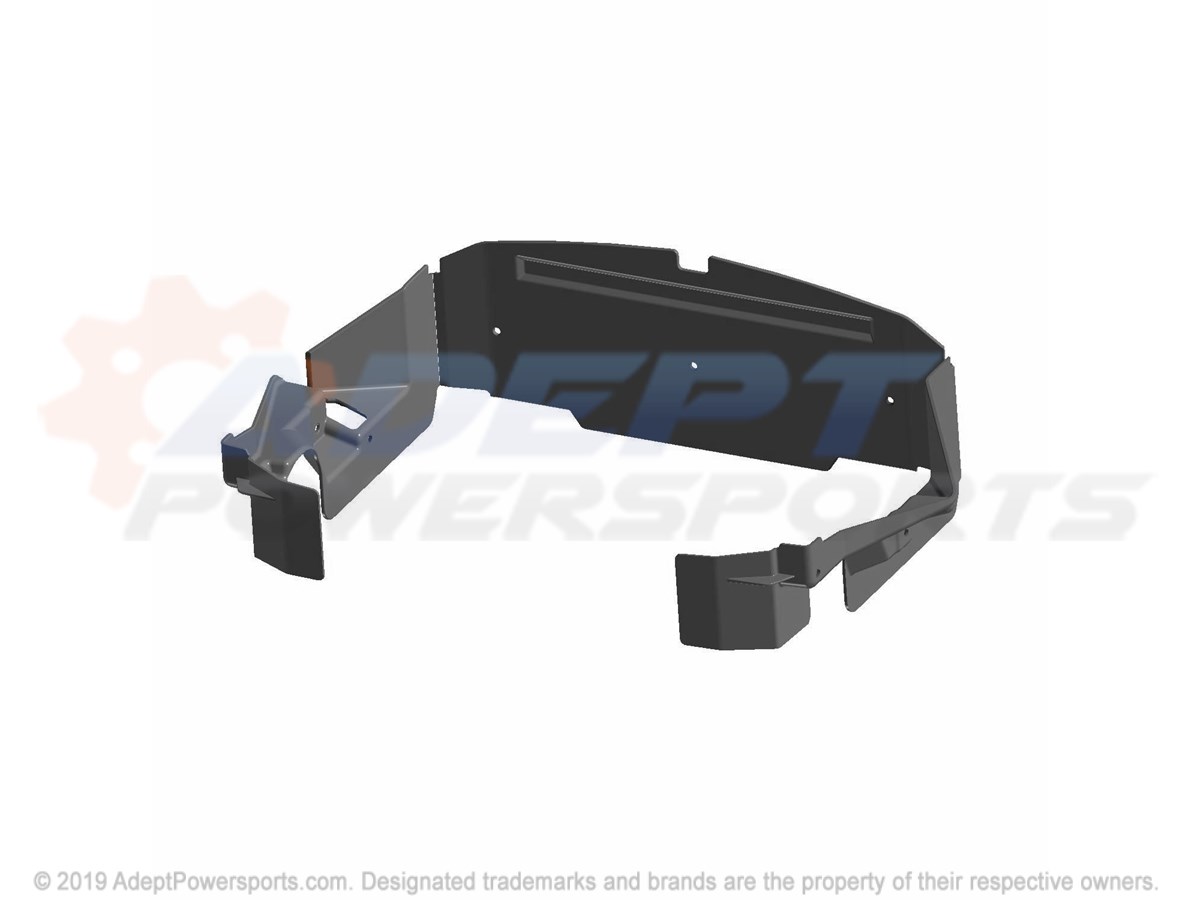

32	SHROUD-RADIATOR, BLK Part #: 5455487-070 Required per assembly: 1 Currently Not Available
