Roof replacement parts for 2020 Polaris RZR XP Turbo S (R04)

OEM Parts Polaris 2020 Polaris RZR XP Turbo S (R04) Roof

ROOF Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

-	K-HARDWARE, ROOF Part #: 2884013 Required per assembly: 1 Note: INCL. 2-8 Currently Not Available
1	PANEL-ROOF, AL, RZT, BLK Part #: 5267753-458 Required per assembly: 1 Currently Not Available
2	BRKT-MNT, ROOF, BLK Part #: 5267751-458 Required per assembly: 2 Currently Not Available
3	SCREW Part #: 7519650 Required per assembly: 12 Currently Not Available
4	WASHER Part #: 7556329 Required per assembly: 8 Currently Not Available

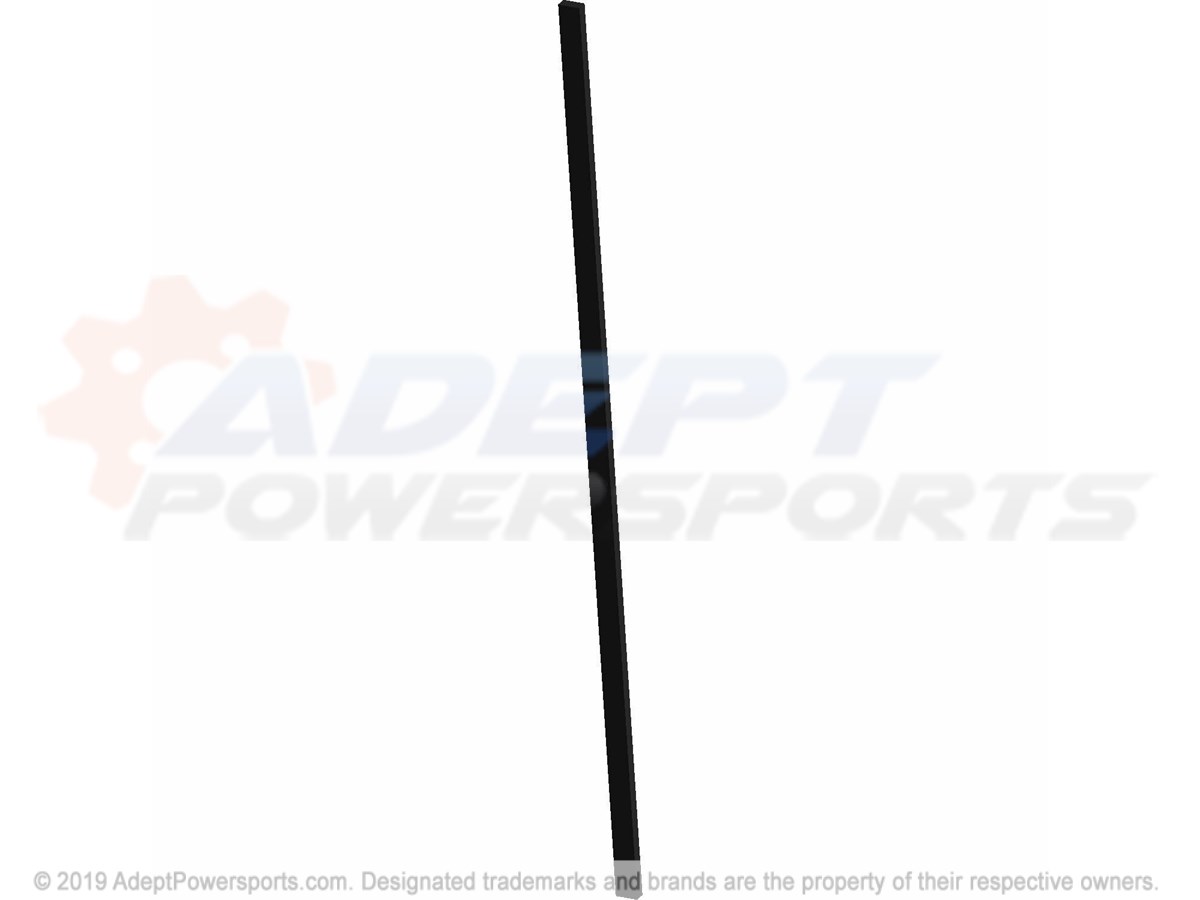

5	FOAM-ROOF, SIDE Part #: 5814798 Required per assembly: 2 Currently Not Available
6	FOAM-ROOF, FRONT Part #: 5814853 Required per assembly: 1 Currently Not Available
7	BRKT-ROOF, COVER, LH, BLK Part #: 5267873-458 Required per assembly: 1 Currently Not Available
8	BRKT-ROOF, COVER, RH, BLK Part #: 5267874-458 Required per assembly: 1 Currently Not Available
