OEM Parts Suzuki 2020 Suzuki AN400A Burgman Frame

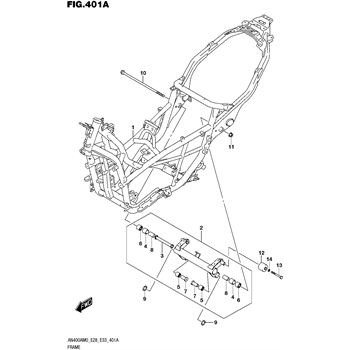

2020 Suzuki AN400A Burgman - Frame

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

FRAME

Part #: 41100-19K01 Required per assembly: 1
$3,114.42
-
+
Add to cart
2

BRACKET, SET, CRANKCASE

Part #: 41180-19810 Required per assembly: 1
Not Available
3

SPACER, BRACKET

Part #: 42610-05H00 Required per assembly: 1
Not Available
4

BEARING

Part #: 09263-25063 Required per assembly: 2
Not Available
5

BEARING

Part #: 09263-20120 Required per assembly: 2
$27.74
$24.97
-
+
Add to cart
6

BUSH

Part #: 09319-12065 Required per assembly: 2
$20.31
$18.28
-
+
Add to cart
7

SPACER

Part #: 41214-14F10 Required per assembly: 2
Not Available
8

SPACER, BRACKET

Part #: 41213-14F00 Required per assembly: 2
Not Available
9

WASHER

Part #: 09160-12044 Required per assembly: 2
$4.24
$3.82
-
+
Add to cart
10

BOLT

Part #: 09103-12086 Required per assembly: 1
Not Available
11

NUT

Part #: 08319-3112A Required per assembly: 1
$4.57
$4.11
-
+
Add to cart
12

CUSHION, SWING, STOP

Part #: 41185-14F00 Required per assembly: 2
Not Available
13

BOLT (12X62)

Part #: 09103-12065 Required per assembly: 2
Not Available
14

WASHER

Part #: 08322-0112B Required per assembly: 2
$2.75
$2.48
-
+
Add to cart
