Electrical 1 replacement parts for 2020 Yamaha DR2E20

OEM Parts Yamaha 2020 Yamaha DR2E20 Electrical 1

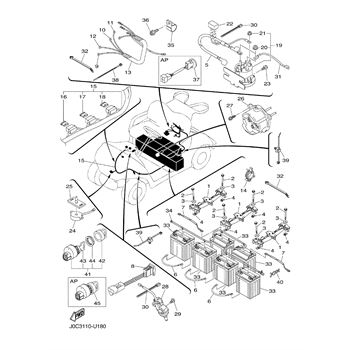

ELECTRICAL 1 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	PLATE, BATTERY, FITTING Part #: JW9-H2136-00-00 Required per assembly: 3 $30.10 - + Add to cart
2	BOLT, SPECIAL Part #: JW9-H1892-00-00 Required per assembly: 6 $3.70 $2.10 - + Add to cart
3	WASHER, PLATE Part #: 90201-08310-00 Required per assembly: 6 $10.49 $6.29 - + Add to cart
4	NUT, TRIM, FITTING Part #: JW9-K811K-00-00 Required per assembly: 6 $2.04 $1.36 - + Add to cart
5	WIRE, PLUS, LEAD Part #: JW9-H2115-20-00 Required per assembly: 1 $25.98 $20.40 - + Add to cart
6	WIRE, LEAD, 2 Part #: JW9-H2127-00-00 Required per assembly: 3 $6.49 $5.29 - + Add to cart
7	WIRE, LEAD, 3 Part #: JW9-H2149-00-00 Required per assembly: 2 $11.99 $10.57 - + Add to cart
8	SWITCH Part #: JU2-H2917-00-00 Required per assembly: 1 $48.99 $46.84 - + Add to cart
9	WIRE, LEAD Part #: JU2-H2521-20-00 Required per assembly: 1 $20.30 - + Add to cart
10	WIRE, LEAD Part #: JU2-H2531-20-00 Required per assembly: 1 $9.99 $8.45 - + Add to cart
11	WIRE, LEAD, 1 Part #: JU2-H6171-20-00 Required per assembly: 1 $18.98 $13.59 - + Add to cart
12	WIRE, LEAD, 2 Part #: JW9-H6172-00-00 Required per assembly: 1 $27.98 $22.38 - + Add to cart
13	TUBE 1 Part #: JU2-H7196-20-00 Required per assembly: 1 $6.99 $5.10 - + Add to cart
14	CLAMP Part #: 90464-25826-00 Required per assembly: 2 Note: (YMUS) $3.04 $2.04 - + Add to cart
15	WIRE HARNESS ASSEMBLY Part #: J0C-H2590-21-00 Required per assembly: 1 Not Available
16	FUSE 5A -FKS Part #: J0C-2151E-00-00 Required per assembly: 1 $8.99 $7.11 - + Add to cart
17	FUSE 3A-BL Part #: JR1-H2151-00-00 Required per assembly: 1 $2.14 $1.66 - + Add to cart
18	FUSE 1A-TAC Part #: J0E-H2151-10-00 Required per assembly: 1 Note: Sold in multiples of 20 only Not Available
19	RELAY ASSEMBLY Part #: JW9-H1950-20-00 Required per assembly: 1 $85.98 $69.54 - + Add to cart
20	NUT Part #: 90179-05807-00 Required per assembly: 2 $3.99 $2.15 - + Add to cart
21	NUT Part #: 90179-08824-00 Required per assembly: 2 $1.20 $0.83 - + Add to cart
22	RESISTOR COMP. Part #: JW9-85371-00-00 Required per assembly: 1 $54.87 $49.88 - + Add to cart
23	BOLT, FLANGE Part #: 90105-06831-00 Required per assembly: 2 $2.29 $1.72 - + Add to cart
24	BUZZER Part #: JR1-H3383-02-00 Required per assembly: 1 $23.98 $15.10 - + Add to cart
25	STAY, BUZZER Part #: JN6-H3386-01-00 Required per assembly: 1 $3.79 $2.48 - + Add to cart
26	RECEPTACLE Part #: JW9-H6181-11-00 Required per assembly: 1 $74.98 $72.56 - + Add to cart
27	BOLT, SPECIAL Part #: JW1-F3394-00-00 Required per assembly: 3 $1.05 $0.83 - + Add to cart
28	SWITCH Part #: JF7-82817-22-00 Required per assembly: 1 $132.99 $125.47 - + Add to cart
29	SCREW, PAN, HEAD, WITH, WASHER Part #: 97602-05225-00 Required per assembly: 2 $6.49 $4.31 - + Add to cart
30	CLAMP Part #: 90464-40825-00 Required per assembly: 3 $3.04 $1.72 - + Add to cart
31	WIRE 7 Part #: JW2-H6527-00-00 Required per assembly: 1 $10.99 $7.41 - + Add to cart
32	CLAMP Part #: 90464-20005-00 Required per assembly: 7 $2.49 $2.22 - + Add to cart
34	BATTERY WATERING SYSTEM ASSEMBLY Part #: JW9-H210G-00-00 Required per assembly: 1 $72.46 - + Add to cart
35	CLAMP(72X) Part #: 90461-14108-00 Required per assembly: 1 $97.98 $93.73 - + Add to cart
36	BOLT, FLANGE Part #: 90105-08867-00 Required per assembly: 1 $1.95 $1.47 - + Add to cart
37	TRANSMITTER UNIT Part #: JU2-HA2F0-00-00 Required per assembly: 1 $86.98 $66.51 - + Add to cart
38	CLAMP Part #: 90464-48800-00 Required per assembly: 1 Note: Sold in multiples of 100 only $4.90 $3.46 - + Add to cart
39	CLAMP Part #: 1NS-F1338-00-00 Required per assembly: 2 $3.60 $3.14 - + Add to cart
40	CLAMP Part #: 90464-14134-00 Required per assembly: 1 $1.20 $0.77 - + Add to cart
41	MAIN SWITCH ASSY Part #: JW1-H2510-21-00 Required per assembly: 1 $26.98 $21.91 - + Add to cart
42	CAP, KEY Part #: 5UG-H2579-00-00 Required per assembly: 1 $10.99 $8.42 - + Add to cart
43	KEY, MAIN, SWITCH, (#2902/8000) Part #: J44-82511-00-YY Required per assembly: 2 Note: Sold in multiples of 5 only Not Available
44	NUT, MAIN, SWITCH Part #: JU6-H2569-20-00 Required per assembly: 1 $1.55 $1.51 - + Add to cart
45	MAIN SWITCH ASSY Part #: JU2-H2510-31-00 Required per assembly: 1 $26.98 $21.91 - + Add to cart
