OEM Parts Yamaha 2020 Yamaha MT09 Frame

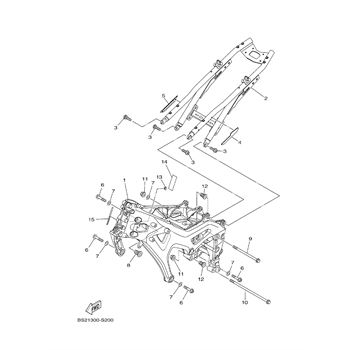

2020 Yamaha MT09 MT09LL - Frame

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

FRAME COMP.

Part #: 1RC-21110-80-00 Required per assembly: 1
$1,550.81
-
+
Add to cart
2

REAR FRAME COMP.

Part #: BS2-21190-00-00 Required per assembly: 1
$542.57
$514.24
-
+
Add to cart
3

SCREW, SPECIAL, SHAPE

Part #: 90149-10060-00 Required per assembly: 4
$8.49
$6.12
-
+
Add to cart
4

COVER 9

Part #: 1RC-2117X-01-00 Required per assembly: 1
$9.49
$7.61
-
+
Add to cart
5

COVER 10

Part #: 1RC-2117Y-01-00 Required per assembly: 1
$9.99
$7.15
-
+
Add to cart
6

BOLT, HEXAGON, SOCKET, HEAD

Part #: 90110-10043-00 Required per assembly: 4
$4.75
$3.87
-
+
Add to cart
7

WASHER, PLATE

Part #: 90201-10075-00 Required per assembly: 5
$3.54
$2.45
-
+
Add to cart
8

BOLT, ENGINE, ADJUSTING

Part #: 1RC-21495-00-00 Required per assembly: 1
$21.98
$17.33
-
+
Add to cart
9

BOLT, FLANGE

Part #: 90105-10391-00 Required per assembly: 1
$12.49
$9.81
-
+
Add to cart
10

BOLT, FLANGE

Part #: 90105-10437-00 Required per assembly: 1
$14.49
$11.45
-
+
Add to cart
11

NUT

Part #: 90179-10024-00 Required per assembly: 2
$11.49
$8.63
-
+
Add to cart
12

BOLT, ENGINE, ADJUSTING

Part #: 4C8-21495-00-00 Required per assembly: 2
$22.98
$18.66
-
+
Add to cart
13

PLUG, BLIND

Part #: 5VX-21289-00-00 Required per assembly: 1
$4.45
$3.70
-
+
Add to cart
14

DAMPER

Part #: 1HP-H2176-01-00 Required per assembly: 1
$2.39
$1.44
-
+
Add to cart
15

PROTECTOR

Part #: 1RC-2117G-00-00 Required per assembly: 1
$5.99
$3.93
-
+
Add to cart
