Rear Wheels replacement parts for 2021 Polaris Outlaw 70 (R07)

OEM Parts Polaris 2021 Polaris Outlaw 70 (R07) Rear Wheels

REAR WHEELS Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

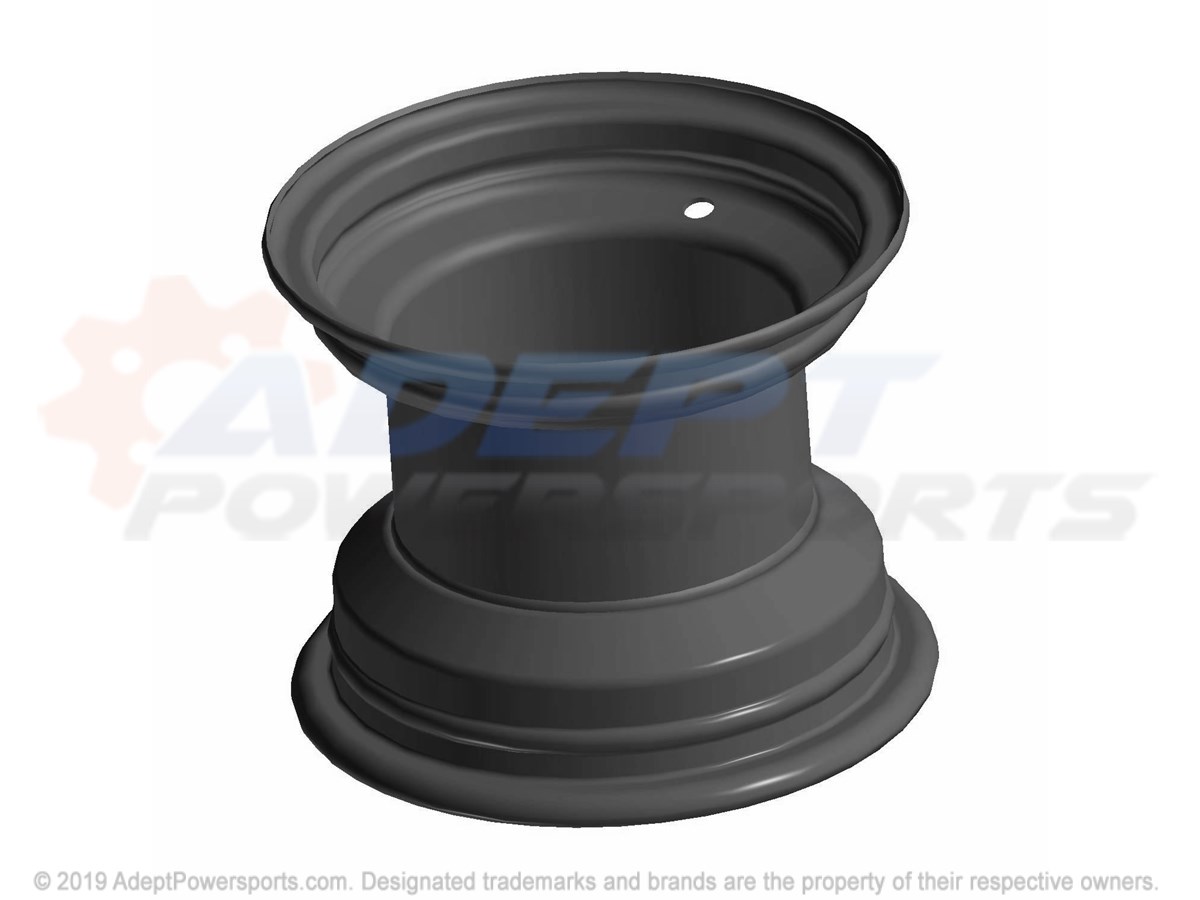

1	WELD-RIM, REAR, 8X6.5, BLK Part #: 1523738-067 Required per assembly: 2 Currently Not Available
2	VALVE-RIM Part #: 1523020 Required per assembly: 2 Currently Not Available

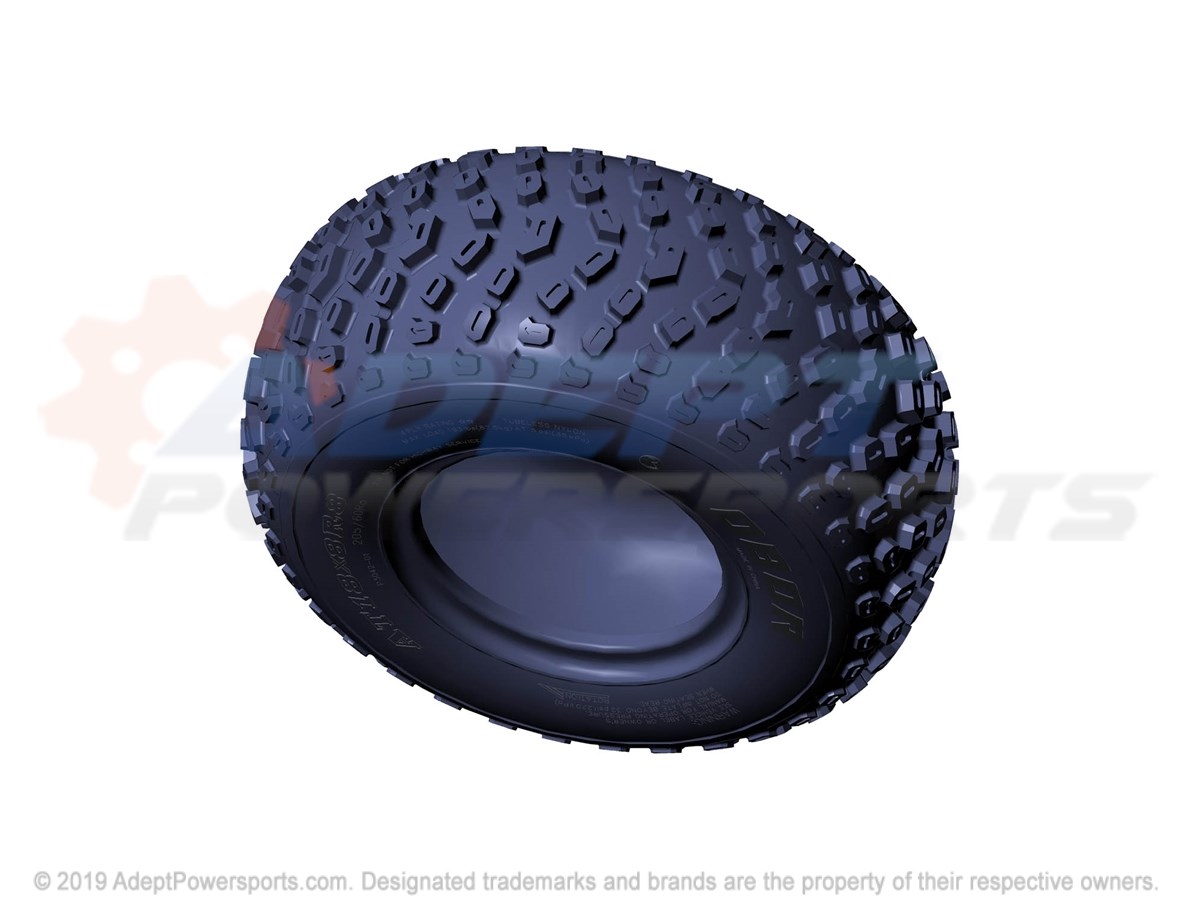

3	TIRE-18X8, R8, P30428 Part #: 5417074 Required per assembly: 2 Currently Not Available
4	CAP-HUB, DUST Part #: 5417112 Required per assembly: 2 Currently Not Available
5	NUT, FLANGE Part #: 7547333 Required per assembly: 8 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
6	HUB-REAR AXLE Part #: 5634261 Required per assembly: 2 Currently Not Available
7	STUD-M10X1.25X35.5 Part #: 7520745 Required per assembly: 8 Currently Not Available
8	NUT-M14X1.5, CASTLE Part #: 7547859 Required per assembly: 2 Currently Not Available

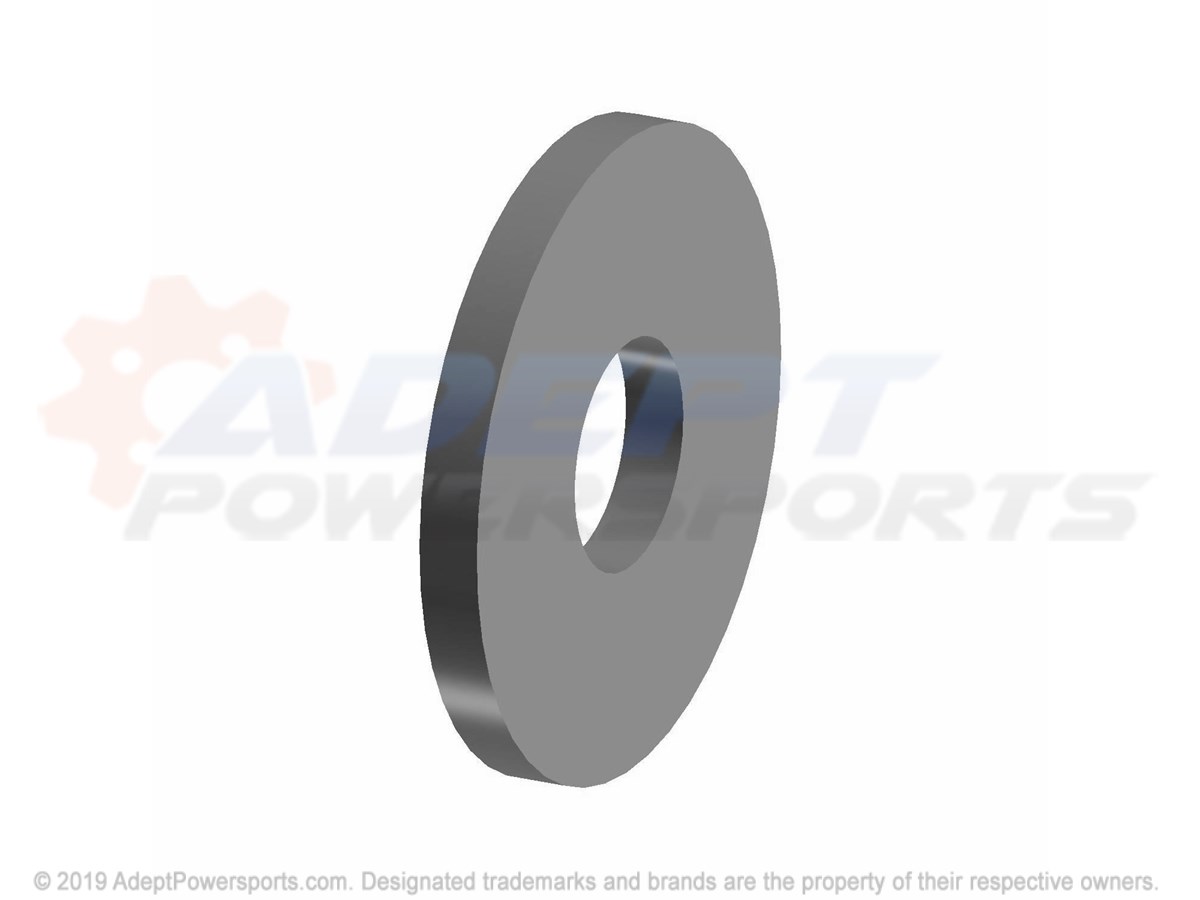

9	WASHER-15X42X4MM-Y Part #: 7557193 Required per assembly: 2 Currently Not Available
10	PIN COTTER Part #: 7661203 Required per assembly: 2 ~~$1.99~~ $1.15 - + Add to cart
