Cooling System, Hoses replacement parts for 2021 Polaris Sportsman 570 Touring (R01)

OEM Parts Polaris 2021 Polaris Sportsman 570 Touring (R01) Cooling System, Hoses

COOLING SYSTEM, HOSES Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

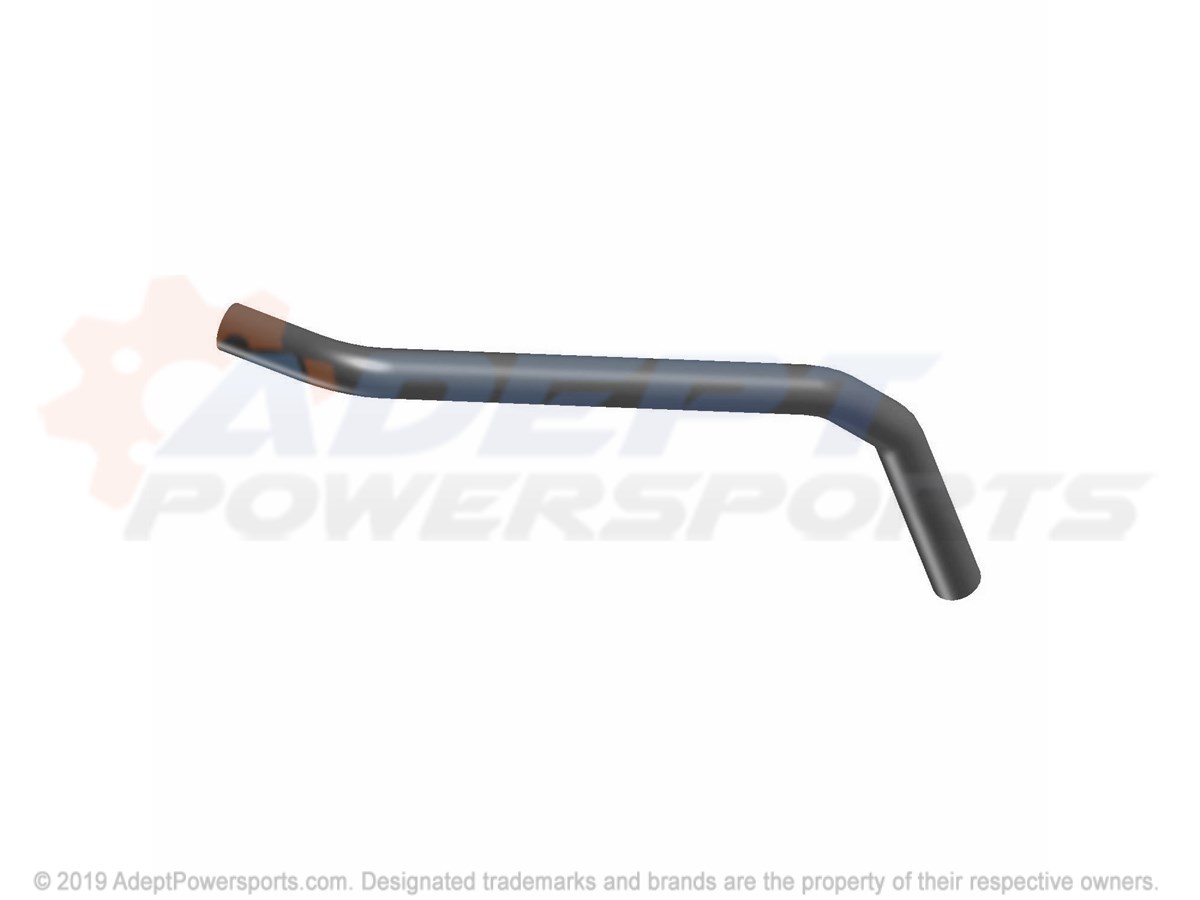

1	HOSE, ENGINE, LOWER Part #: 5414805 Required per assembly: 1 Currently Not Available
2	HOSE-BYPASS, FORMED Part #: 5416771 Required per assembly: 1 Currently Not Available
3	CONNECTOR-TEE 1X1X0.5 Part #: 7052530 Required per assembly: 1 Currently Not Available
4	CLAMP, SPRINGBAND Part #: 7080843 Required per assembly: 3 Note: Clamp, Spring Band Sold in multiples of 10 only Currently Not Available
5	CLAMP-HOSE SPRING 20MM Part #: 7081719 Required per assembly: 1 Currently Not Available
6	NECK, FILLER Part #: 5412402 Required per assembly: 1 Currently Not Available
7	HOSE-FILLER NECK Part #: 5414228 Required per assembly: 1 Currently Not Available
8	HOSE-RADIATOR, UPPER, TOURING Part #: 5417383 Required per assembly: 1 Currently Not Available
9	HOSE, RADIATOR, LOWER Part #: 5414764 Required per assembly: 1 Currently Not Available
10	CONDUIT, FLEX Part #: 5521793-51 Required per assembly: 2 Note: 1.00 ID, PE, 51CM Currently Not Available
11	CLAMP, SPRINGBAND Part #: 7080841 Required per assembly: 4 Currently Not Available
12	SPRING-COOLANT HOSE GUIDE Part #: 5342957 Required per assembly: 1 Currently Not Available
13	CLAMP, HOSE Part #: 7081174 Required per assembly: 1 Currently Not Available
14	SCREW Part #: 7512084 Required per assembly: 4 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
15	CLAMP, HOSE Part #: 7080474 Required per assembly: 1 Note: Clamp, Hose ~~$9.44~~ $6.81 - + Add to cart
16	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 1 Note: Cable Tie Currently Not Available
17	CAP, PRESSURE Part #: 1240508 Required per assembly: 1 Currently Not Available
18	SCREW Part #: 7517386 Required per assembly: 1 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
