OEM Parts Polaris 2021 Polaris Sportsman 570 Touring EPS (R01) Seat

2021 Polaris Sportsman 570 Touring EPS (R01) A21SDE57A4/B4 - Seat

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

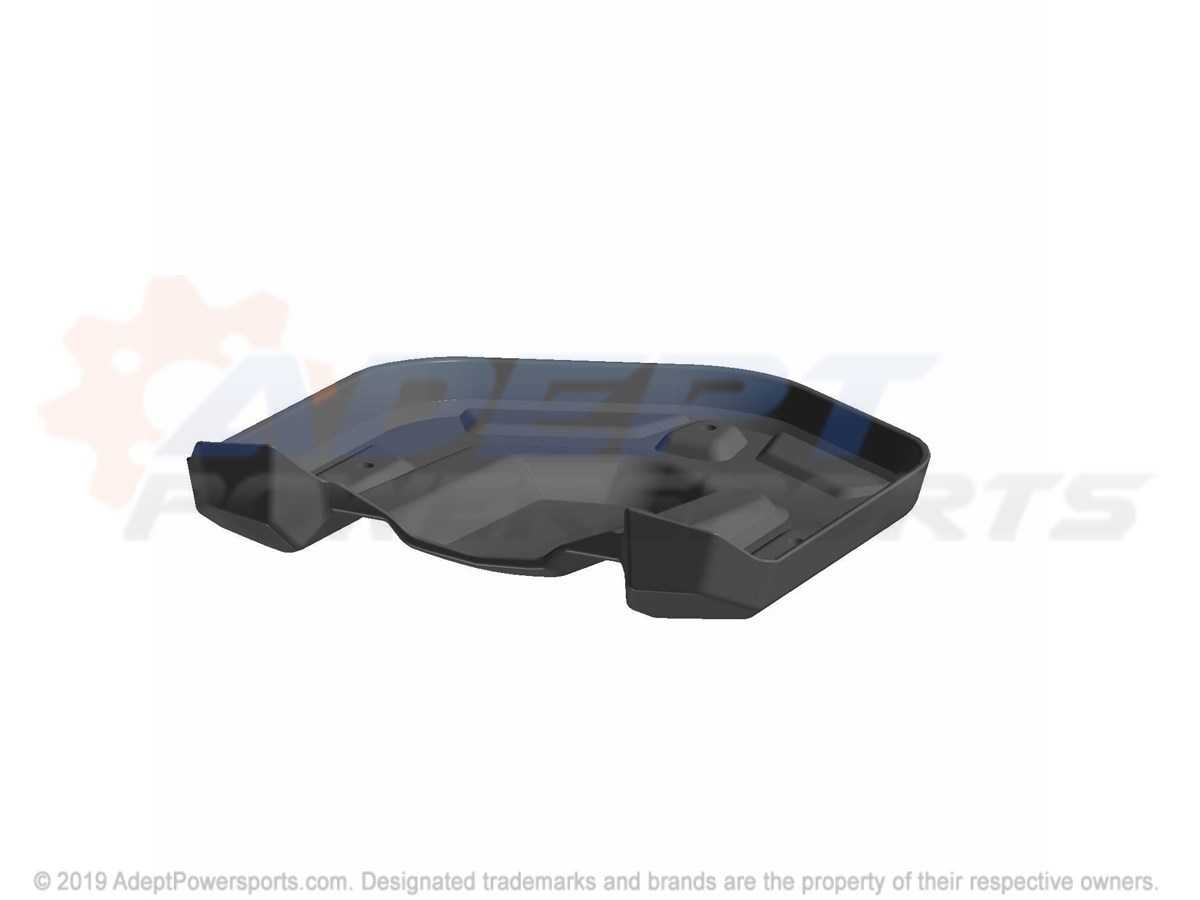

Polaris 2688301 Asm-Seat, Operator, Nyl, Touring

ASM-SEAT, OPERATOR, NYL, TOURING

Part #: 2688301 Required per assembly: 1 Note: INCL. COVER & 4
Currently Not Available
1
Polaris 2687958 Asm-Cover, Seat, Trg, White, Decal

ASM-COVER, SEAT, TRG, WHITE, DECAL

Part #: 2687958 Required per assembly: 1
Currently Not Available
2

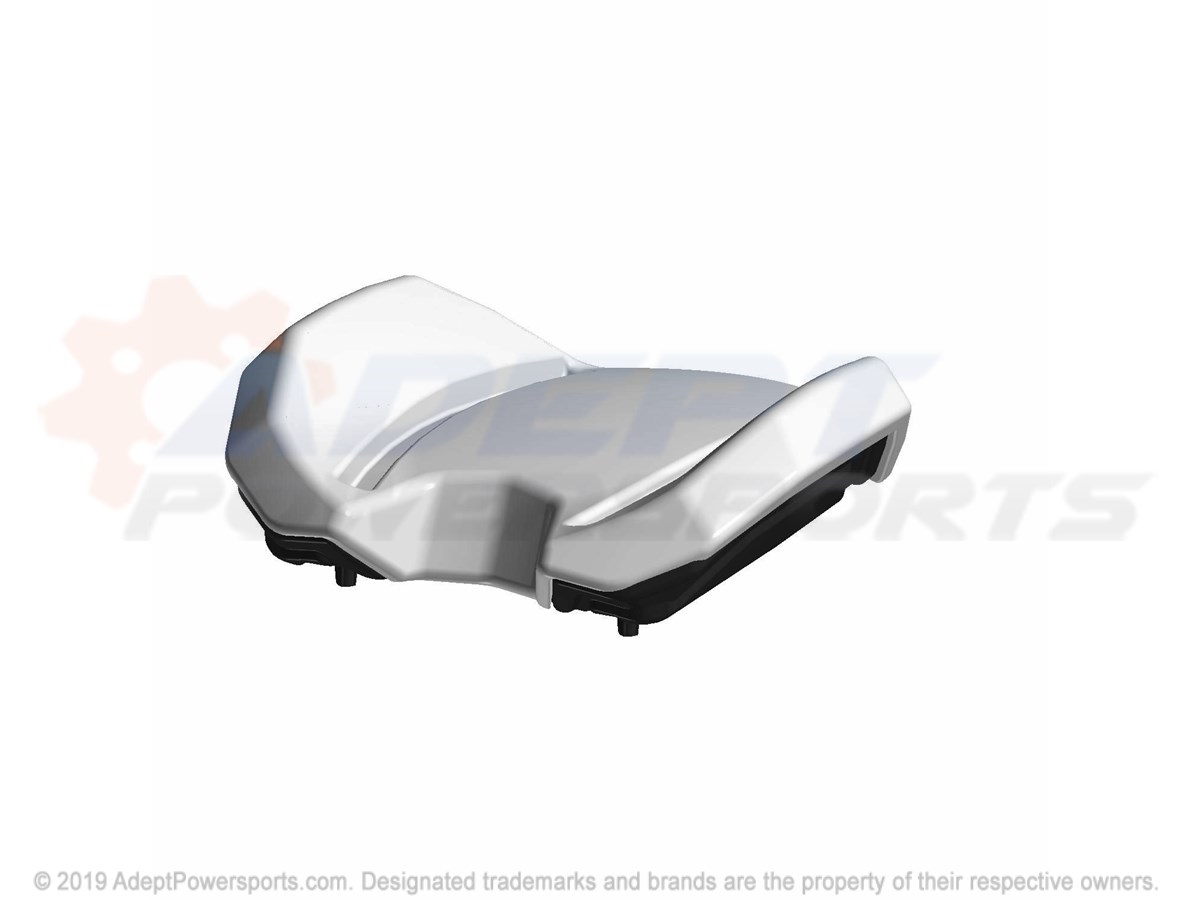

Polaris 2688295 Asm-Seat, Back, Cushion, Tour

ASM-SEAT, BACK, CUSHION, TOUR

Part #: 2688295 Required per assembly: 1 Note: INCL. COVER
Currently Not Available
2

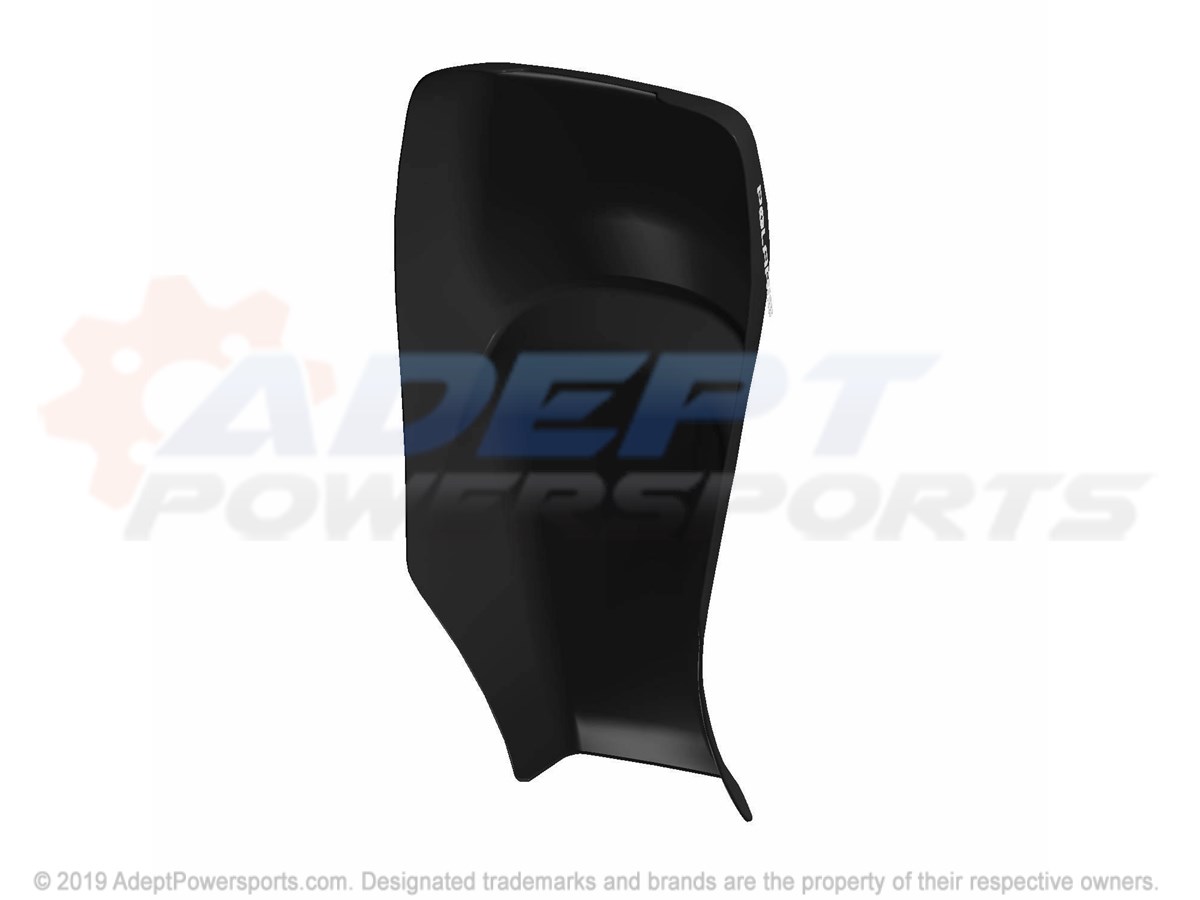

ASM-SEAT, BACK, COVER, TOUR

Part #: 2688296 Required per assembly: 1
Currently Not Available
3

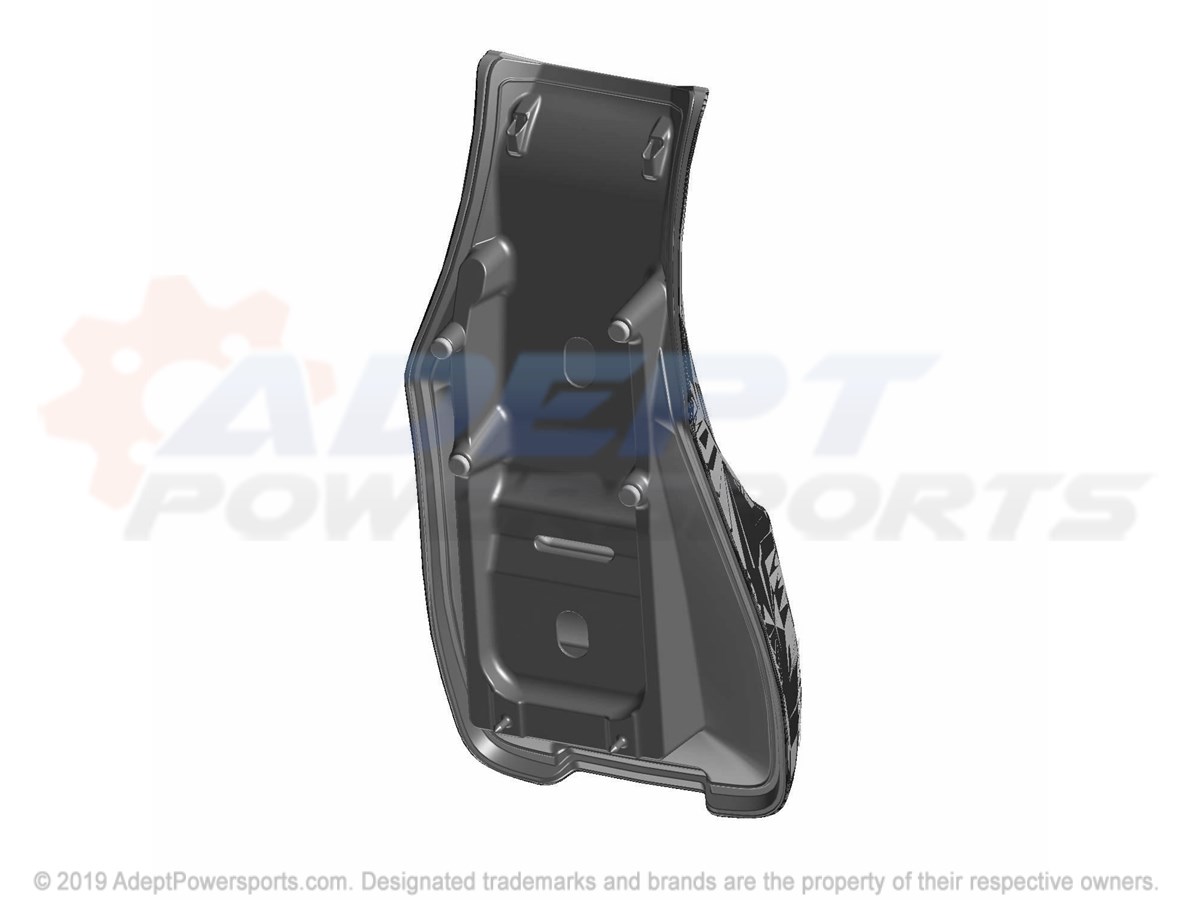

Polaris 5453291 Cover-Seat, Back, Hdpe

COVER-SEAT, BACK, HDPE

Part #: 5453291 Required per assembly: 1
Currently Not Available
4
Polaris 5412067 Bumper-Rubber

BUMPER-RUBBER

Part #: 5412067 Required per assembly: 6 Note: Bumper, Rubber
Currently Not Available
5
Polaris 5418181 Grommet-Seat Latch

GROMMET-SEAT LATCH

Part #: 5418181 Required per assembly: 2
Currently Not Available
6

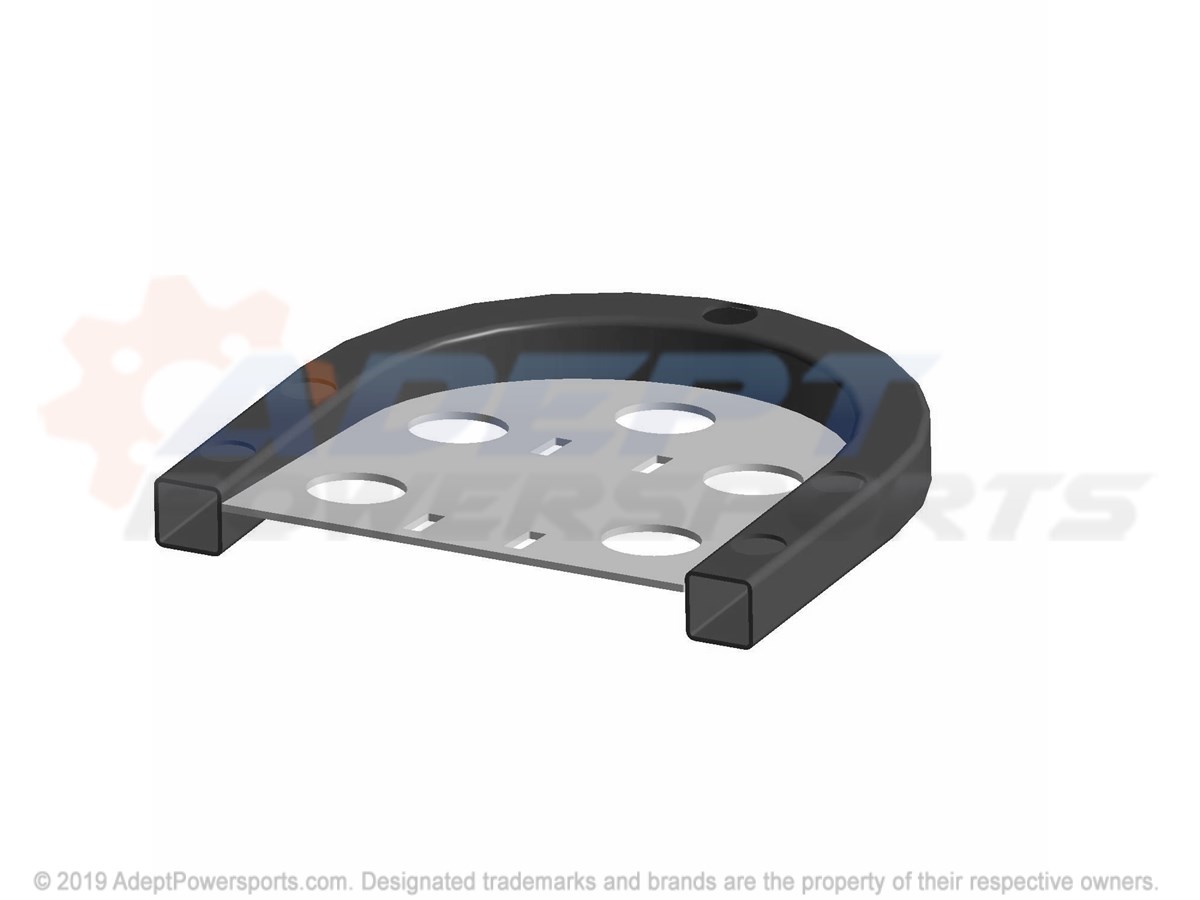

Polaris 1020037-067 Support, Seat, Back, Black

SUPPORT, SEAT, BACK, BLACK

Part #: 1020037-067 Required per assembly: 1
Currently Not Available
7
Polaris 1022582-329 Weld-Tube, Seat, Back, Tour, Blk

WELD-TUBE, SEAT, BACK, TOUR, BLK

Part #: 1022582-329 Required per assembly: 1
Currently Not Available
8
Polaris 7518613 Screw

SCREW

Part #: 7518613 Required per assembly: 4 Note: Bolt, Flange
$2.99
$1.73
-
+
Add to cart
9
Polaris 7519045 Screw

SCREW

Part #: 7519045 Required per assembly: 5
Currently Not Available
10
Polaris 7547274 Nut

NUT

Part #: 7547274 Required per assembly: 4 Note: Nut, Flange
Currently Not Available
11
Polaris 7518280 Screw

SCREW

Part #: 7518280 Required per assembly: 4
Currently Not Available
