Brake Pedal And Master Cylinder replacement parts for 2021 Polaris Sportsman 570 (R02)

OEM Parts Polaris 2021 Polaris Sportsman 570 (R02) Brake Pedal And Master Cylinder

BRAKE PEDAL and MASTER CYLINDER Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASSEMBLY, RESERVOIR, BRAKE, REAR Part #: 1911224 Required per assembly: 1 Note: INCL. 2-4 Currently Not Available
2	DIAPHRAGM, RESERVOIR, BRAKE Part #: 5413262 Required per assembly: 1 Currently Not Available
3	ING, RESERVOIR, BRAKE Part #: 5437041 Required per assembly: 1 Currently Not Available

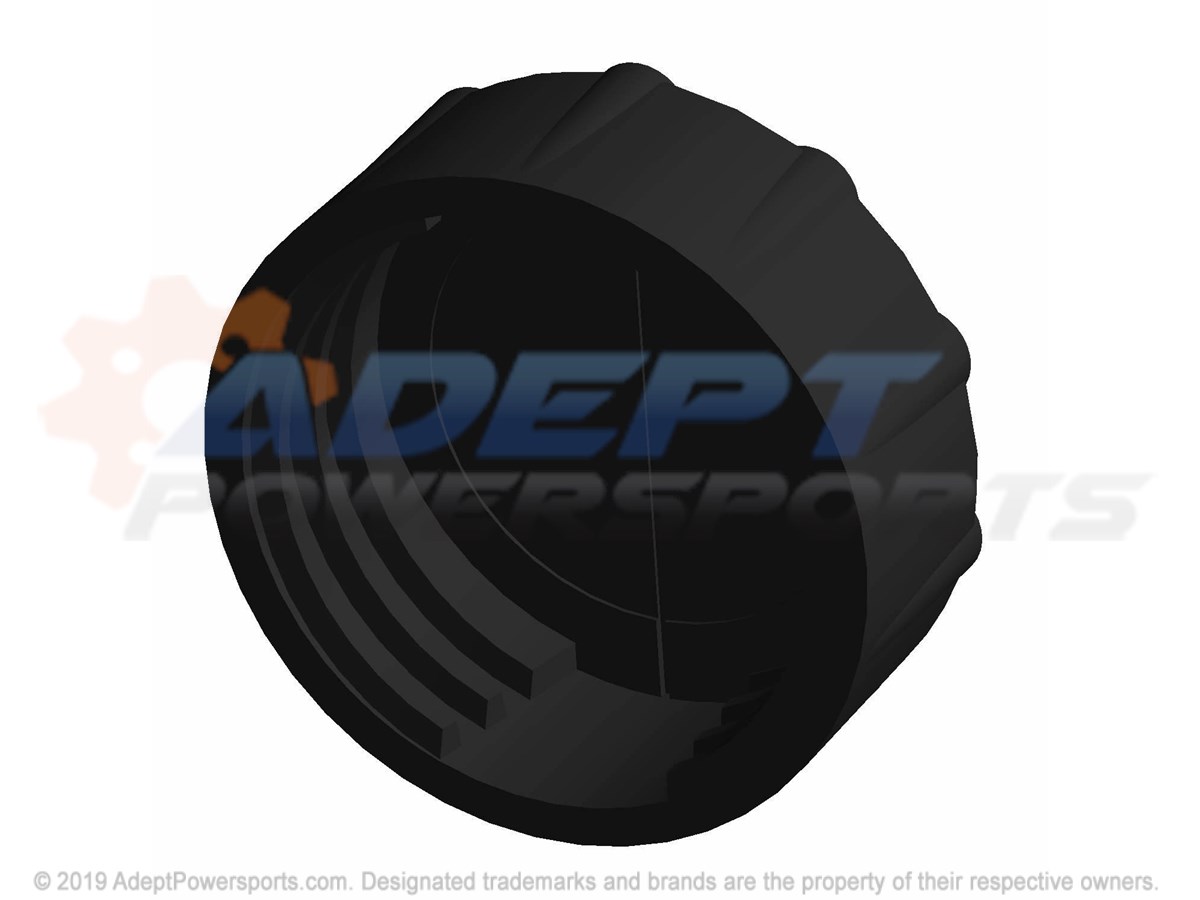

4	CAP-RESERVOIR, BRAKE Part #: 5437039 Required per assembly: 1 Currently Not Available
5	ASM-M/CYL, DIRMC, 3/4HO, B/U-RING Part #: 1913815 Required per assembly: 1 Note: INCL. HOSE, CLAMPS Currently Not Available
6	HOSE, RESERVOIR Part #: 1911267-559 Required per assembly: 1 Currently Not Available

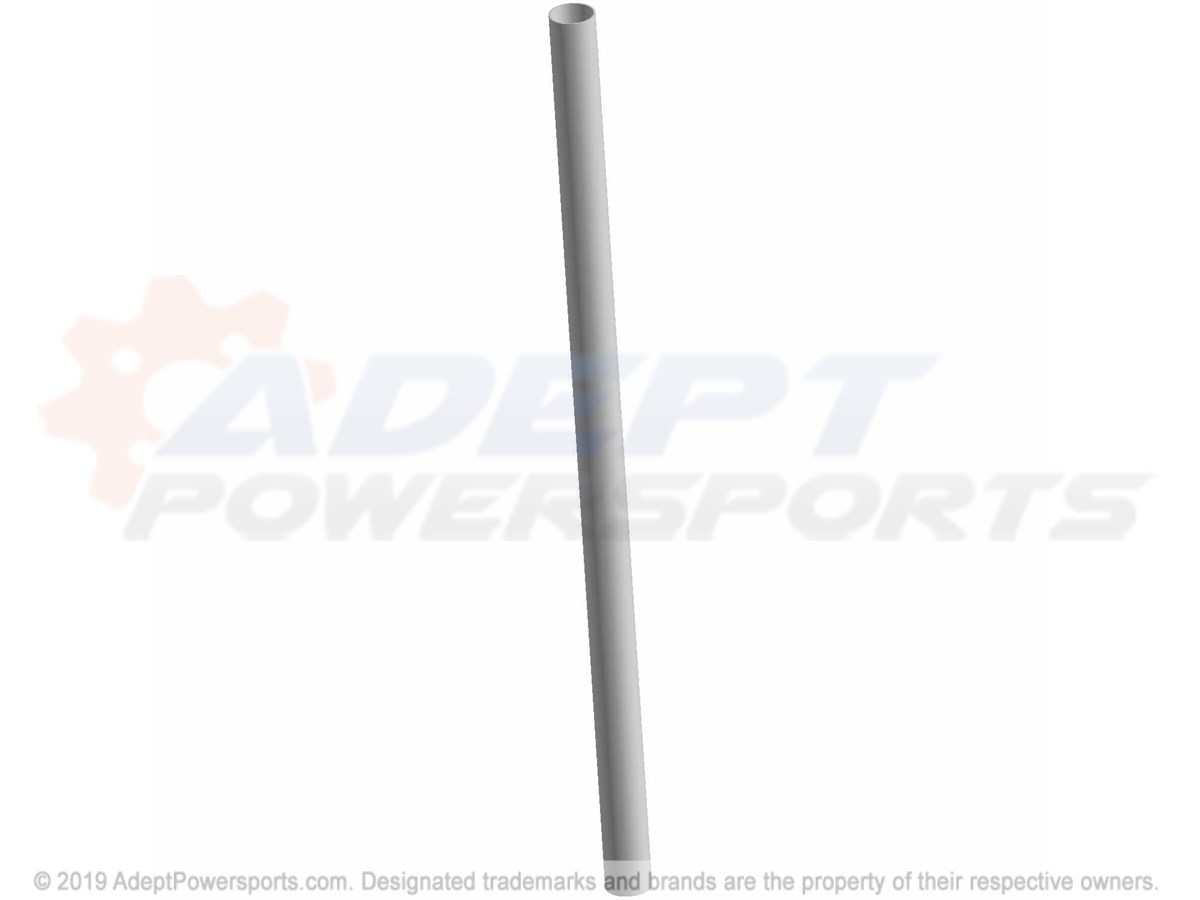

7	SHEATH-REFLECT, SLEEVE, VITR16MM Part #: 8450226 Required per assembly: 1 Currently Not Available
8	STRAP PANDUIT Part #: 7080138 Required per assembly: 3 ~~$1.99~~ $1.15 - + Add to cart
9	CLIP-EDGE, 1-3MM, THICKNESS Part #: 7082402 Required per assembly: 1 Currently Not Available
10	TUBE-SPACER Part #: 5343053 Required per assembly: 1 Currently Not Available
11	BUSHING-PEDAL PIVOT Part #: 5433189 Required per assembly: 2 Note: Bushing, Pedal Pivot Currently Not Available
12	WELD-BRAKE PEDAL BLK Part #: 1911657-067 Required per assembly: 1 Currently Not Available
13	SPRING, TORSION, BRAKE Part #: 7041750 Required per assembly: 1 Currently Not Available
14	SCREW Part #: 7517312 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
15	CLAMP, HOSE Part #: 7080003 Required per assembly: 2 Note: Clamp, Hose, Red Currently Not Available
16	SCREW Part #: 7517950 Required per assembly: 2 Currently Not Available
17	SCR-M8X1.25X50 Part #: 7520105 Required per assembly: 1 Currently Not Available
18	NUT, FLANGE Part #: 7547317 Required per assembly: 1 Currently Not Available
19	NUT Part #: 7547274 Required per assembly: 2 Note: Nut, Flange Currently Not Available
