OEM Parts Polaris 2021 Polaris Sportsman 570 EPS EU 3PC (R01) Brake Lines, Rear

2021 Polaris Sportsman 570 EPS EU 3PC (R01) A21SEE57K2 - Brake Lines, Rear

BRAKE LINES, REAR Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

LINE-BRK, SERV, 3-WAY, J

Part #: 1913919 Required per assembly: 1
Currently Not Available
2

LINE-BRK, AUX, 3-WAY, J

Part #: 1913920 Required per assembly: 1
Currently Not Available
3
Polaris 5413212 Seal

SEAL

Part #: 5413212 Required per assembly: 10
$9.99
$5.85
-
+
Add to cart
4

CLIP-RETAINING, DUAL, .250", LINE

Part #: 7670126 Required per assembly: 2
Currently Not Available
5
Polaris 7517756 Screw, 10-24X5/8

SCREW, 10-24X5/8

Part #: 7517756 Required per assembly: 2
$2.99
$1.73
-
+
Add to cart
6

BOLT-BANJO, 10MMX1.00

Part #: 1910499 Required per assembly: 5 Note: Bolt, Banjo
Currently Not Available
7

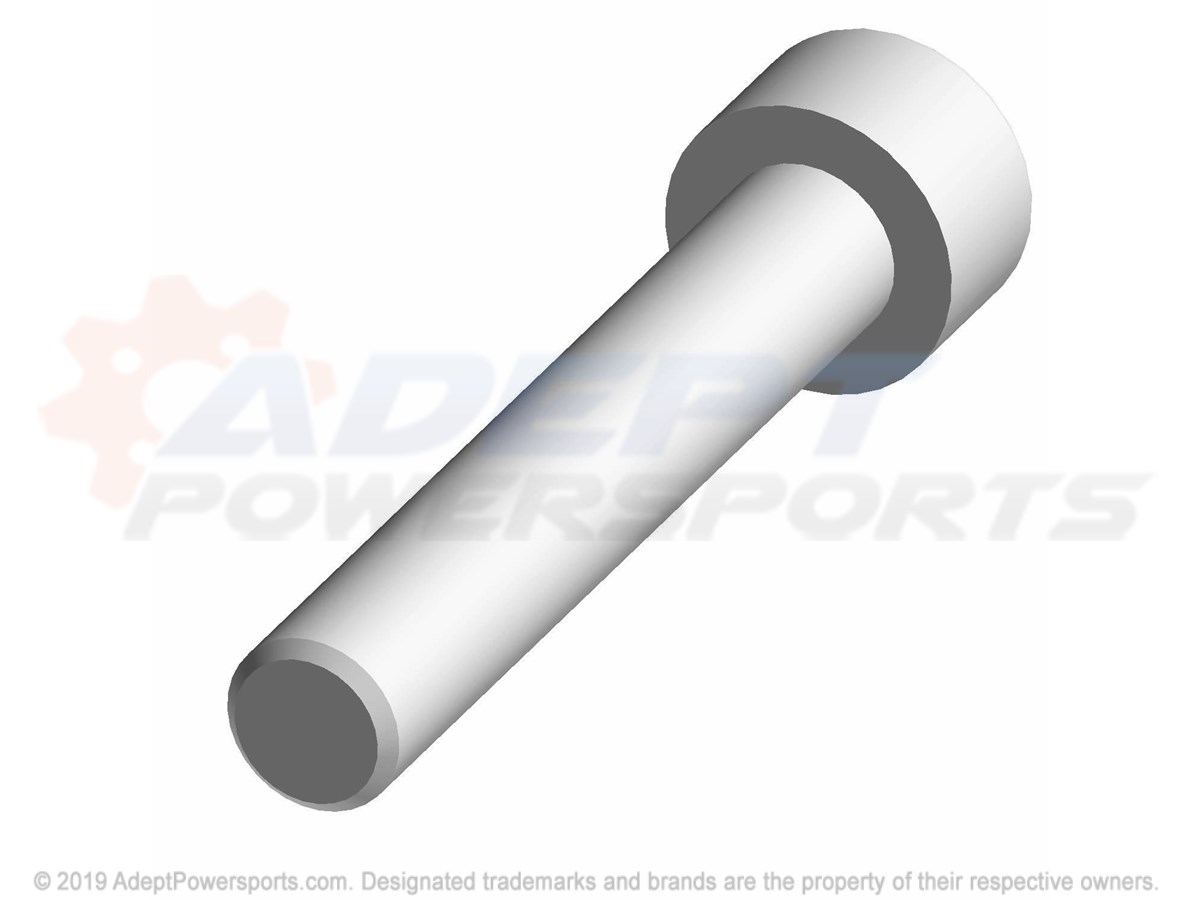

Polaris 7521143 Scr-Din912-M6x35x1-Gr8.8 Zw

SCR-DIN912-M6X35X1-GR8.8 ZW

Part #: 7521143 Required per assembly: 1
Currently Not Available
8
Polaris 7547274 Nut

NUT

Part #: 7547274 Required per assembly: 2 Note: Nut, Flange
Currently Not Available
9

LINE-BRK, FMC, J

Part #: 1913761 Required per assembly: 1
Currently Not Available
10
Polaris 7081496 Clip-Routing

CLIP-ROUTING

Part #: 7081496 Required per assembly: 6
Currently Not Available
11

CLAMP, HOSE

Part #: 7080908 Required per assembly: 2
Currently Not Available
12

TUBE-SPACER, JJ

Part #: 5360010 Required per assembly: 1
Currently Not Available
13
Polaris 7621467 Rivet, Blind

RIVET, BLIND

Part #: 7621467 Required per assembly: 2
$2.99
$1.73
-
+
Add to cart
