2021 Polaris Sportsman XP 1000 S 55" (R01) A21SLZ95AE/AG - Front Caliper

FRONT CALIPER Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

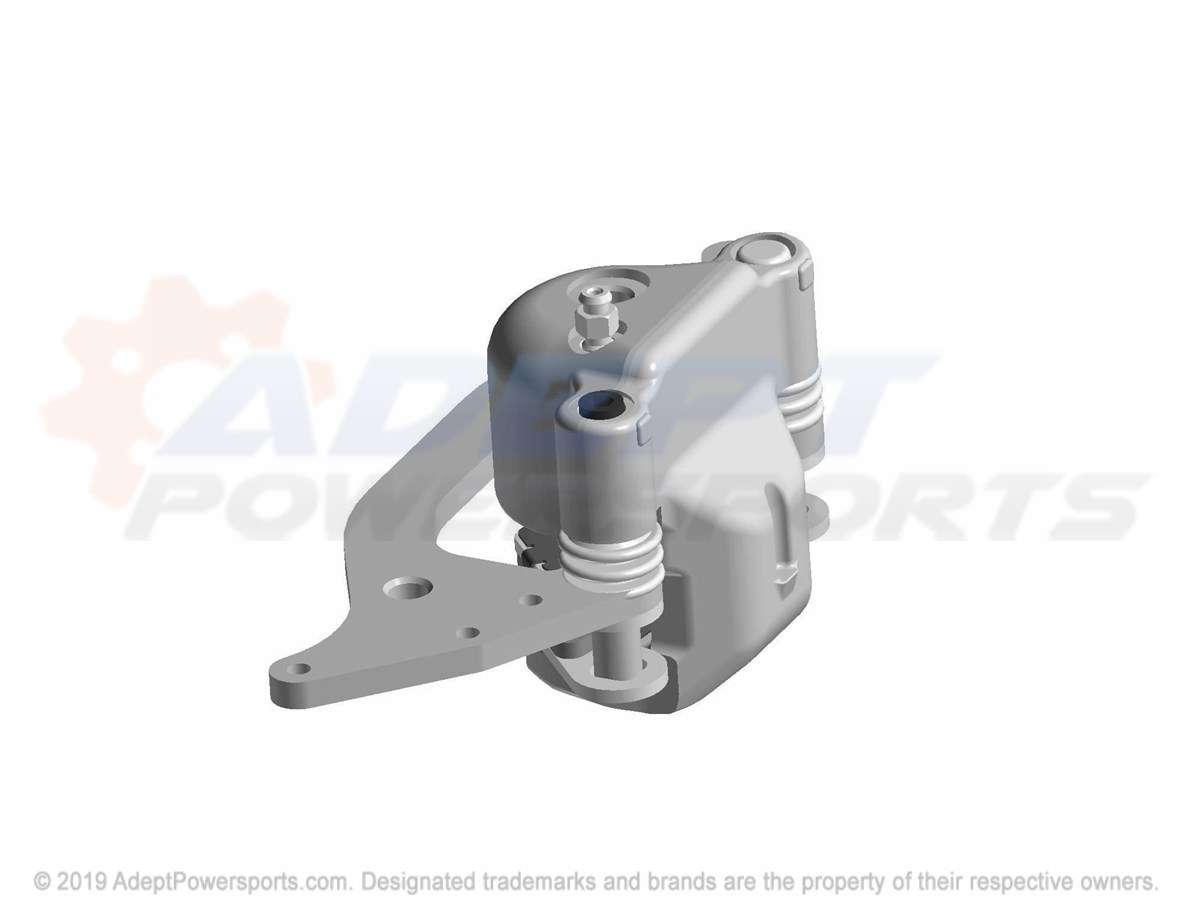

Polaris 1913272 Asm-Clpr, Brk, Wl, 1.5, Frt, Lh, 257

ASM-CLPR, BRK, WL, 1.5, FRT, LH, 257

Part #: 1913272 Required per assembly: 1 Note: INCL. 1-10
Currently Not Available
1

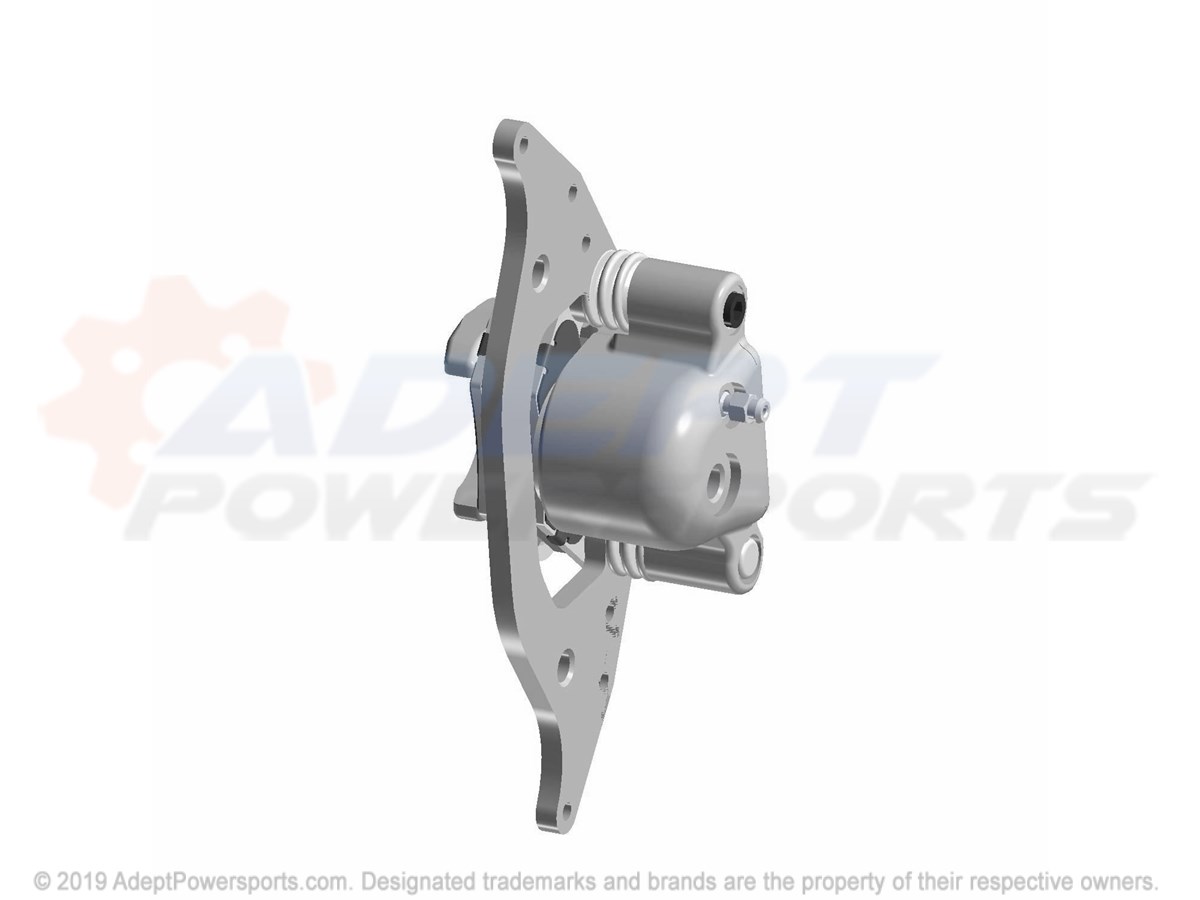

Polaris 1913273 Asm-Clpr, Brk, Wl, 1.5, Frt, Rh, 257

ASM-CLPR, BRK, WL, 1.5, FRT, RH, 257

Part #: 1913273 Required per assembly: 1 Note: INCL. 1-10
Currently Not Available
2
Polaris 2205606 Kit-Brake, Pad, High, Perf, 246Mm

KIT-BRAKE, PAD, HIGH, PERF, 246MM

Part #: 2205606 Required per assembly: 2 Note: INCL. 2 PADS
Currently Not Available
3
Polaris 5132829 Piston, Brake

PISTON, BRAKE

Part #: 5132829 Required per assembly: 1
Currently Not Available
4

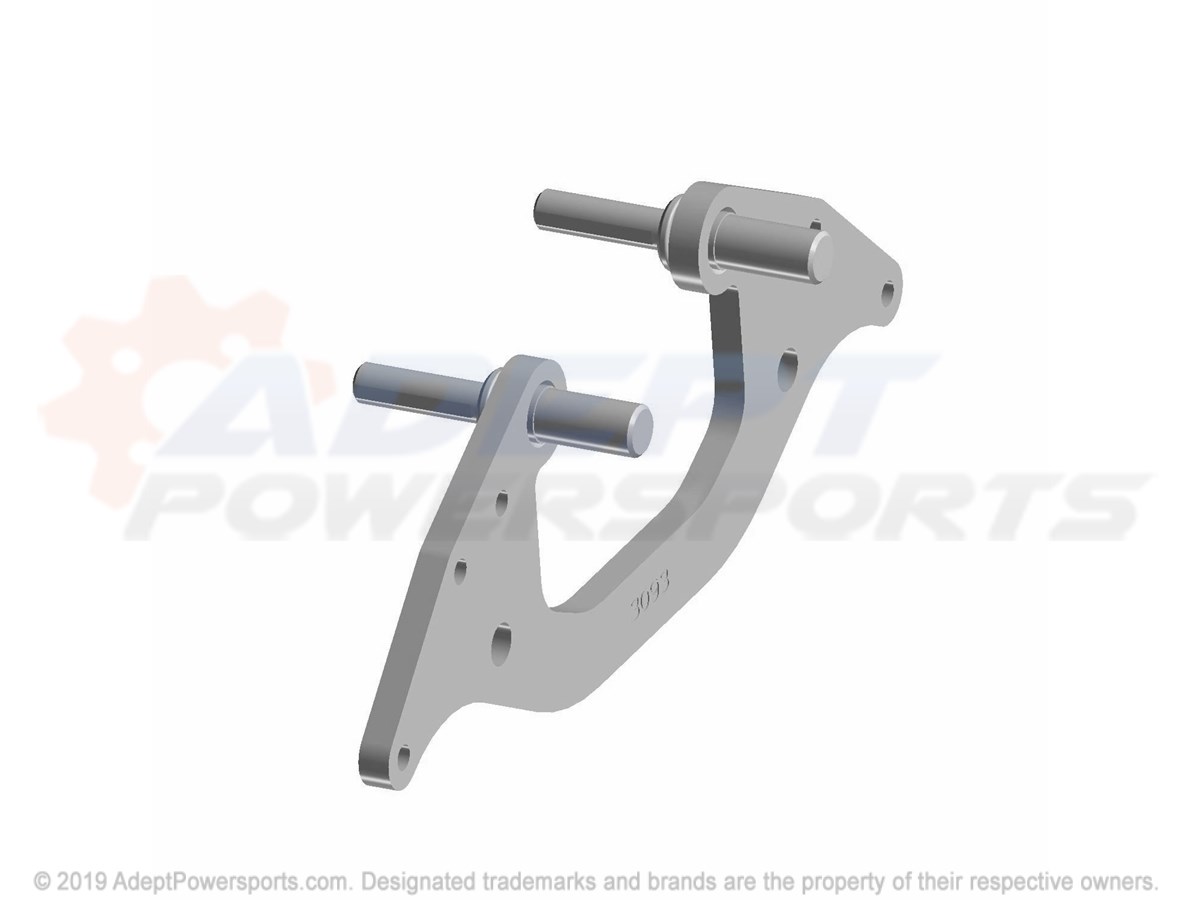

Polaris 1913093 Asm-Clpr, Mnt, Db, Sb, 3.0"

ASM-CLPR, MNT, DB, SB, 3.0"

Part #: 1913093 Required per assembly: 1
Currently Not Available
5
Polaris 5412010 Seal, Caliper, Inner

SEAL, CALIPER, INNER

Part #: 5412010 Required per assembly: 1
Currently Not Available
6
Polaris 5412011 Seal, Caliper, Outer

SEAL, CALIPER, OUTER

Part #: 5412011 Required per assembly: 1
Currently Not Available
7
Polaris 5412505 Boot, Bushing

BOOT, BUSHING

Part #: 5412505 Required per assembly: 1
Currently Not Available
8
Polaris 5412506 Boot, Pin, Seal

BOOT, PIN, SEAL

Part #: 5412506 Required per assembly: 1
Currently Not Available
9

SCREW, BLEEDER

Part #: 7081343 Required per assembly: 1
Currently Not Available
10
Polaris 7518863 Screw, Socket, Set

SCREW, SOCKET, SET

Part #: 7518863 Required per assembly: 1
Currently Not Available
11
Polaris 7518760 Bolt

BOLT

Part #: 7518760 Required per assembly: 4 Note: CALIPER MOUNTING
Currently Not Available
