Rear Control Arms replacement parts for 2021 Polaris General XP 1000 HUNTER (R04)

OEM Parts Polaris 2021 Polaris General XP 1000 HUNTER (R04) Rear Control Arms

REAR CONTROL ARMS Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

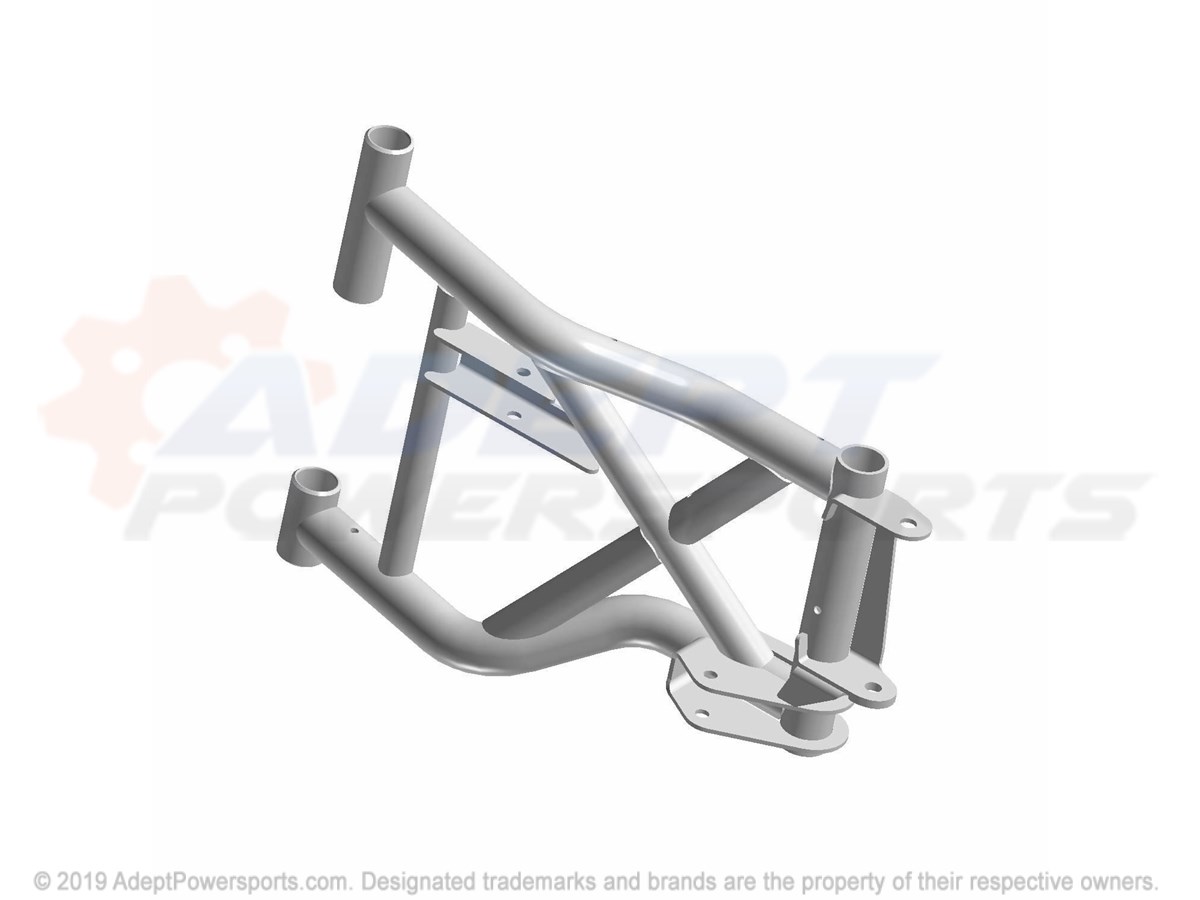

1	WELD-CNTRL, ARM, RR, LW, LH, 64, SGN Part #: 1024922-863 Required per assembly: 1 Currently Not Available

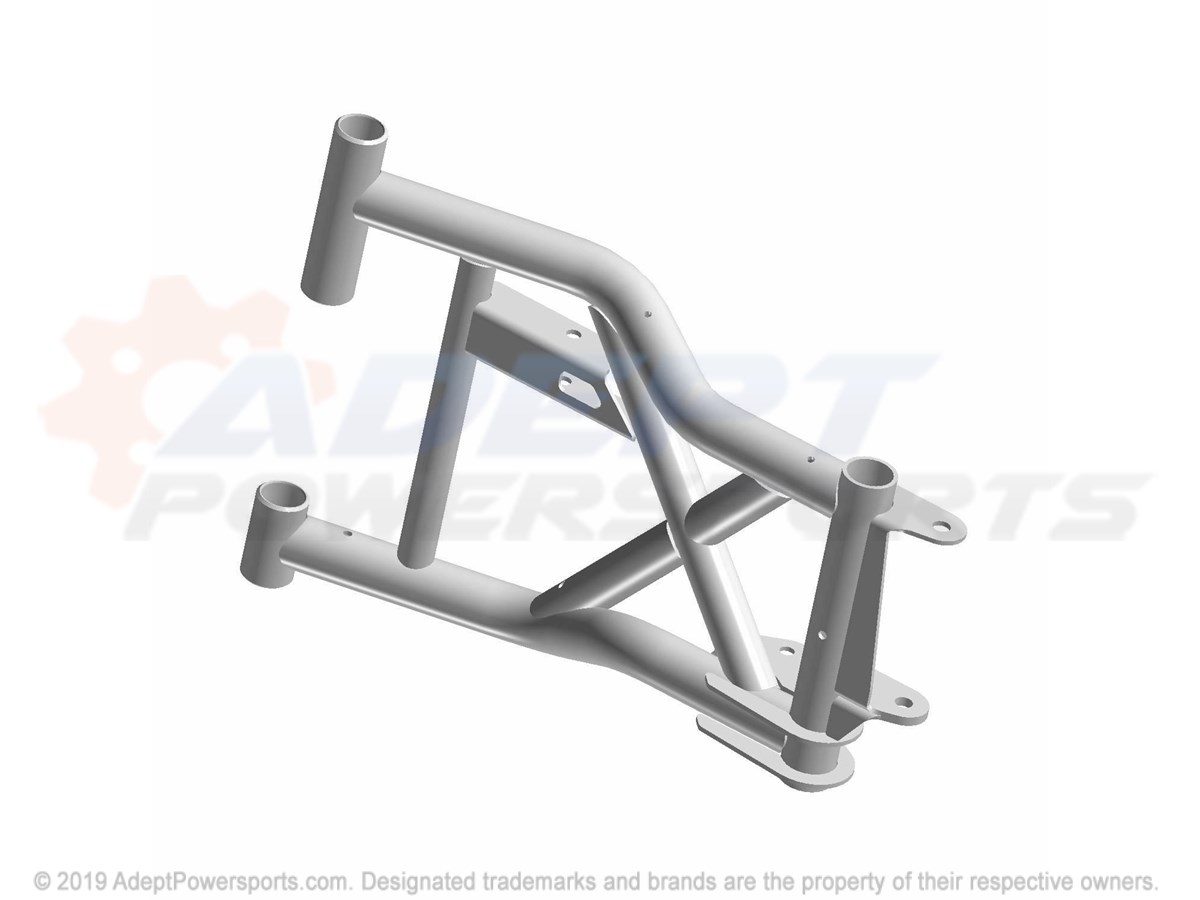

2	WELD-CNTRL, ARM, RR, LW, RH, 64, SGN Part #: 1024923-863 Required per assembly: 1 Currently Not Available
3	ASM-PIVOT, CAP, SEALED, M12 Part #: 1543612 Required per assembly: 12 Currently Not Available
4	SHAFT-PIVOT, SHORT, M12 Part #: 5140555 Required per assembly: 2 Currently Not Available
5	SHAFT-PIVOT, LONG, M12 Part #: 5139991 Required per assembly: 4 Currently Not Available
6	BUSHING-STANDARD, SUSP, M12 Part #: 5452271 Required per assembly: 12 Currently Not Available
7	SCR-HXFL-M12X1.5X170 10.9 ZOD Part #: 7520294 Required per assembly: 4 Currently Not Available
8	SCR-HXFL-M12X1.5X105 10.9 ZOD Part #: 7520479 Required per assembly: 2 Currently Not Available
9	NUT, NYLOK Part #: 7547334 Required per assembly: 6 Currently Not Available
10	WASHER-FL, 13X2.5 Part #: 7556287 Required per assembly: 6 Currently Not Available

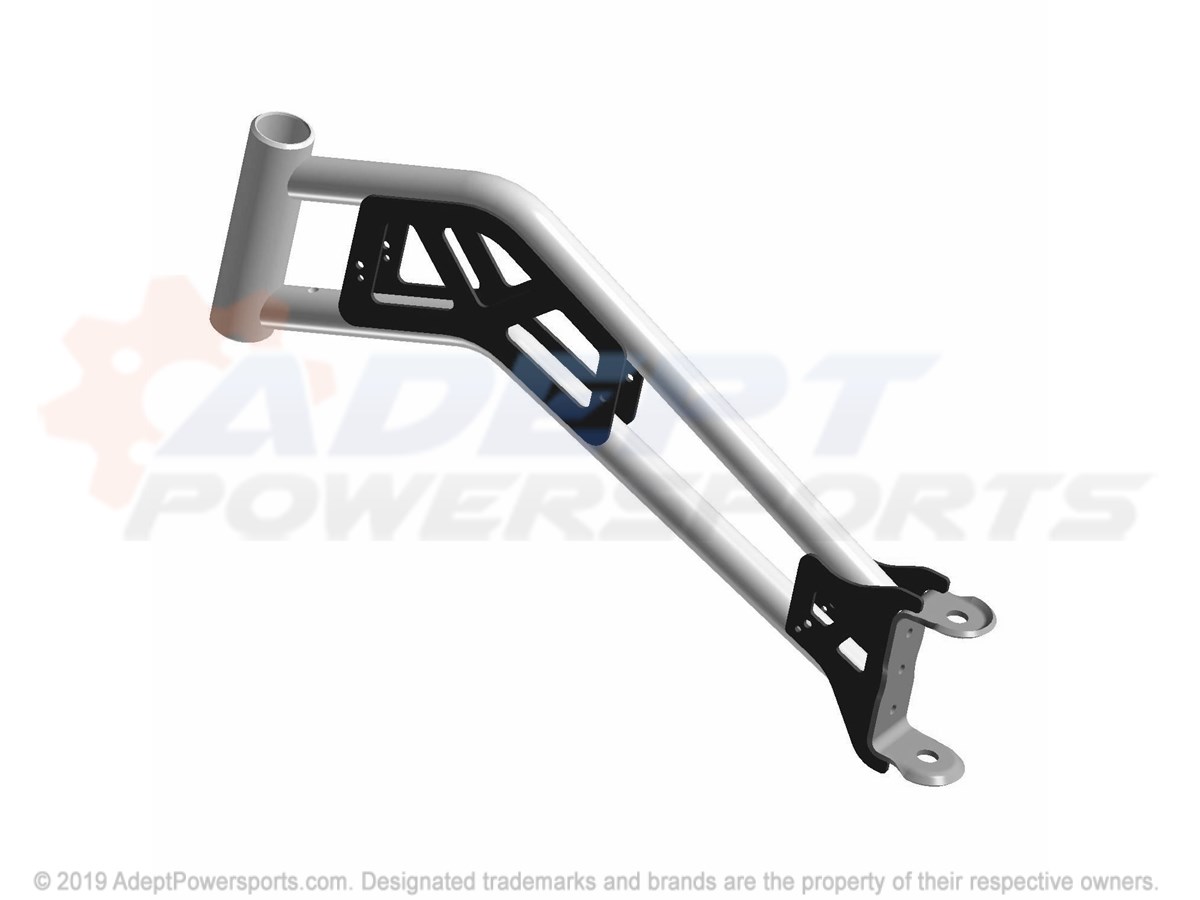

11	WELD-A-ARM, REAR, UPR, 64, SGN Part #: 1024921-863 Required per assembly: 2 Currently Not Available

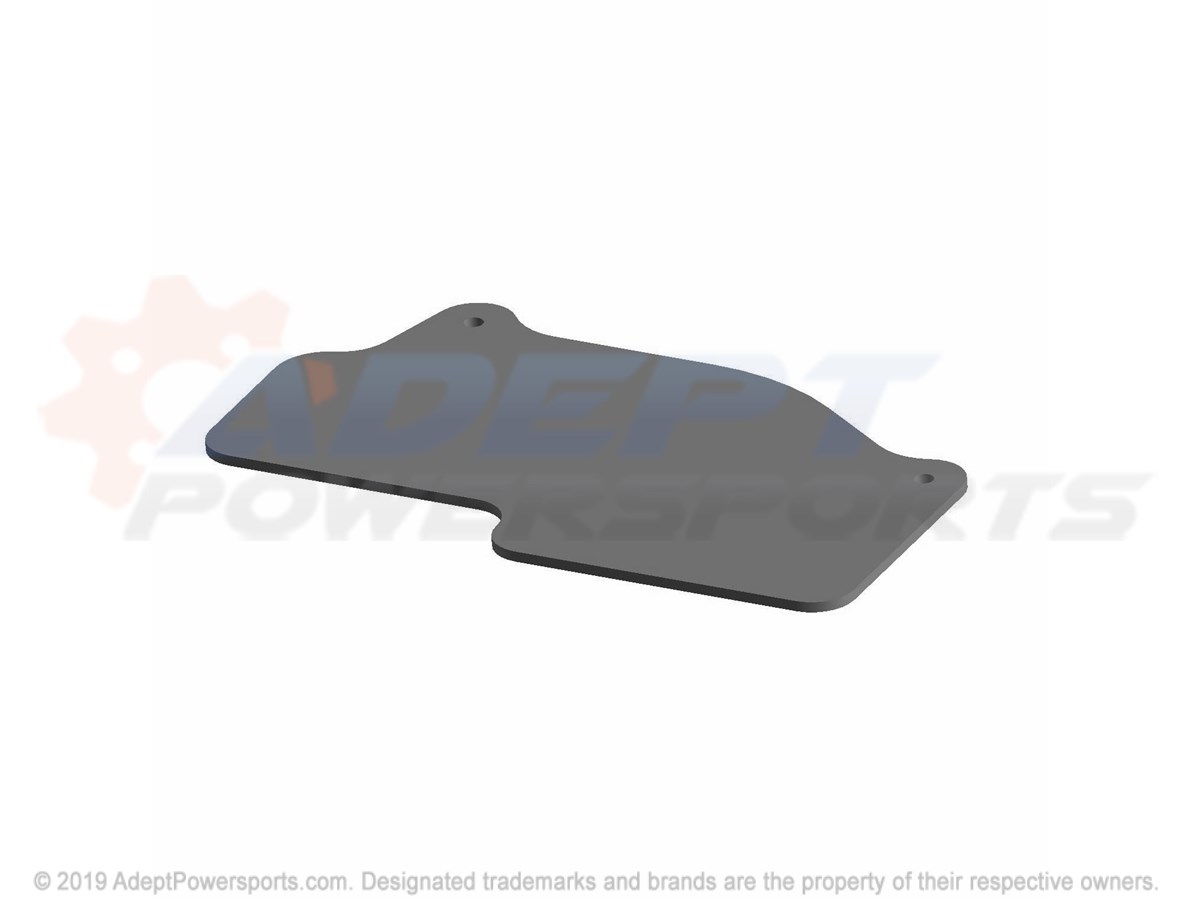

12	SHIELD-SHOCK, ROD Part #: 5456405 Required per assembly: 2 Currently Not Available
13	RIVET Part #: 7621460 Required per assembly: 4 ~~$3.97~~ $3.16 - + Add to cart
