2021 Polaris General XP 1000 DELUXE RC TRAIL PKG (R01) G21GXZ99AM/BM - Front Control Arms

FRONT CONTROL ARMS Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

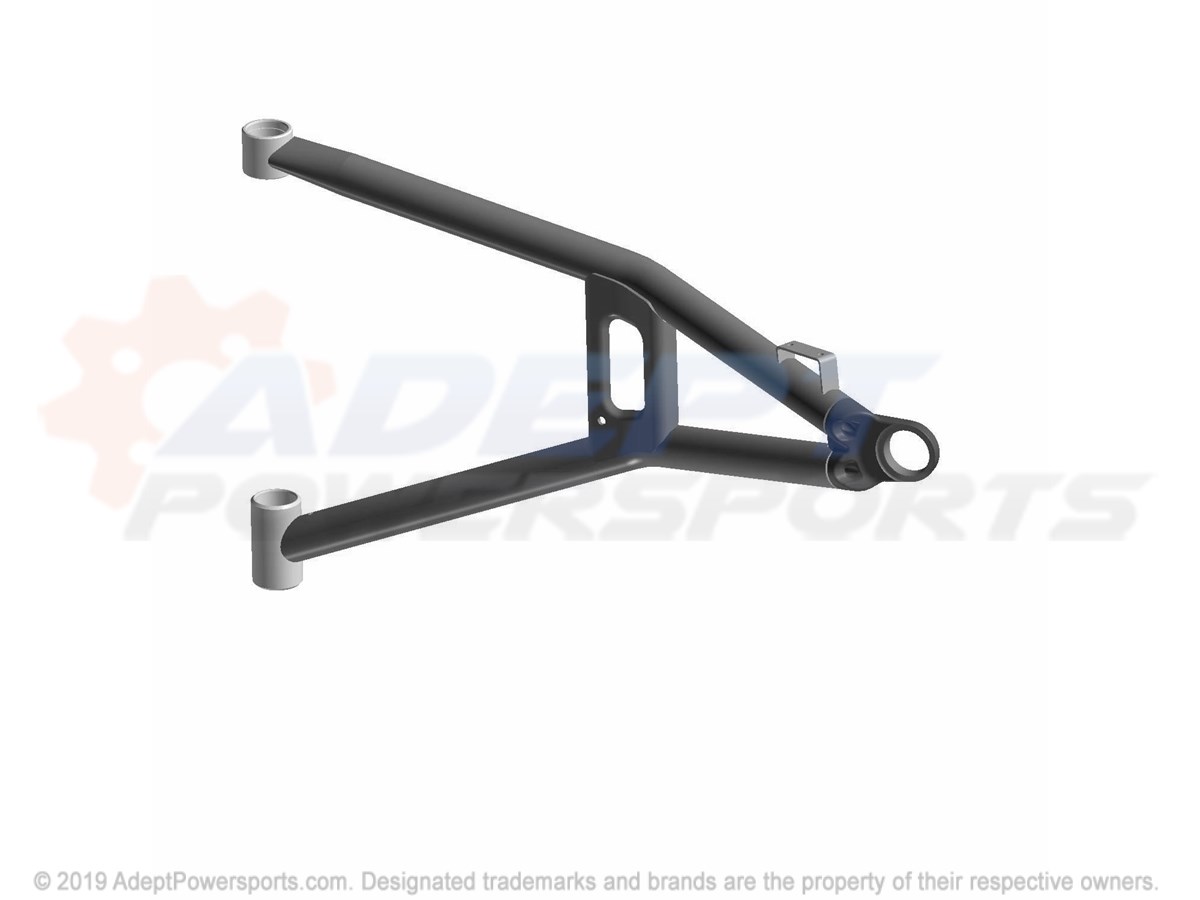

Polaris 1025114-751 Wld-Crlarm, Hc, Lw, Fr, Lh, 64, Pblm

WLD-CRLARM, HC, LW, FR, LH, 64, PBLM

Part #: 1025114-751 Required per assembly: 1
Currently Not Available
2

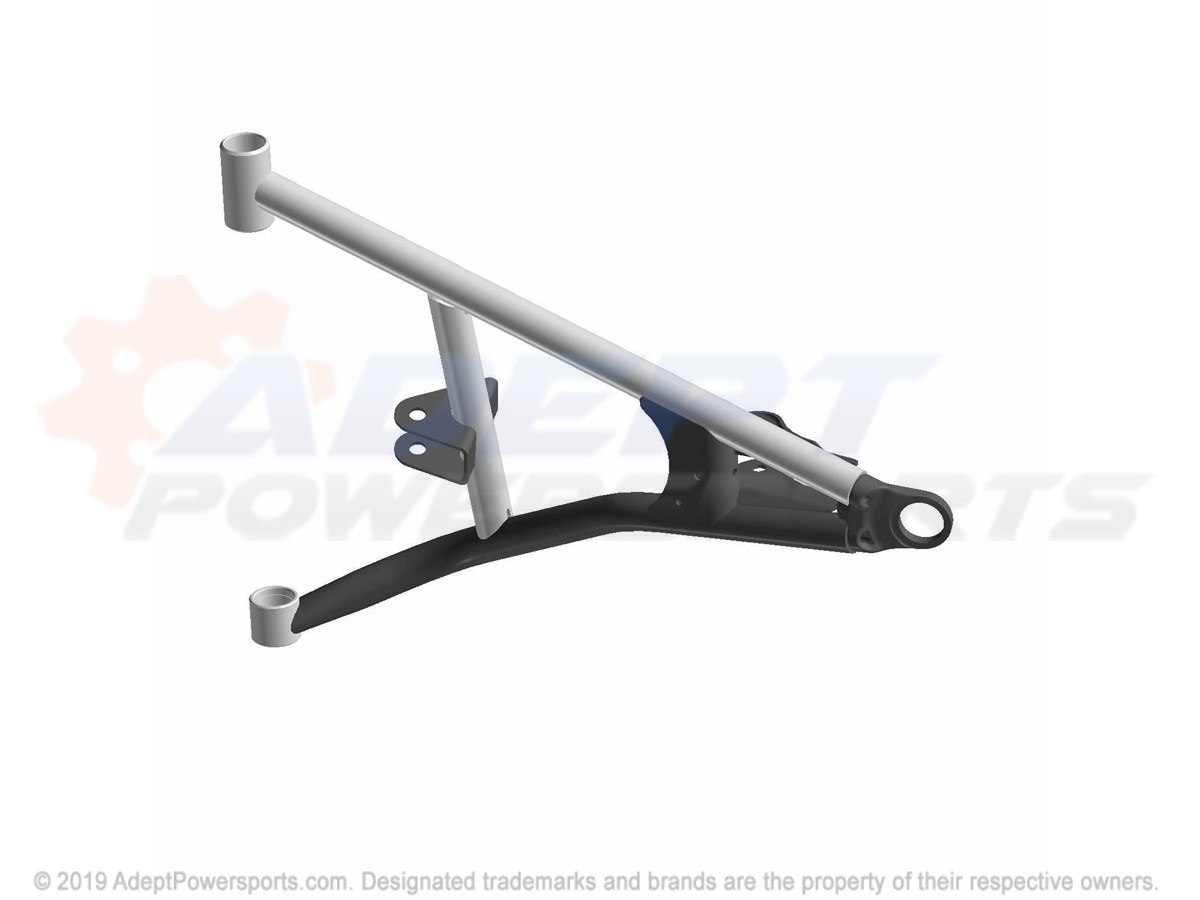

Polaris 1025115-751 Wld-Crlarm, Hc, Lw, Fr, Rh, 64, Pblm

WLD-CRLARM, HC, LW, FR, RH, 64, PBLM

Part #: 1025115-751 Required per assembly: 1
Currently Not Available
3
Polaris 1543612 Asm-Pivot, Cap, Sealed, M12

ASM-PIVOT, CAP, SEALED, M12

Part #: 1543612 Required per assembly: 8
Currently Not Available
4
Polaris 5140555 Shaft-Pivot, Short, M12

SHAFT-PIVOT, SHORT, M12

Part #: 5140555 Required per assembly: 4
Currently Not Available
5
Polaris 5452271 Bushing-Standard, Susp, M12

BUSHING-STANDARD, SUSP, M12

Part #: 5452271 Required per assembly: 12
Currently Not Available
6
Polaris 7520478 Scr-Hxfl-M12x1.5X80 10.9 Zod

SCR-HXFL-M12X1.5X80 10.9 ZOD

Part #: 7520478 Required per assembly: 2
Currently Not Available
7
Polaris 7520479 Scr-Hxfl-M12x1.5X105 10.9 Zod

SCR-HXFL-M12X1.5X105 10.9 ZOD

Part #: 7520479 Required per assembly: 4
Currently Not Available
8
Polaris 7520477 Scr-Hxfl-M12x1.5X65 10.9 Zod

SCR-HXFL-M12X1.5X65 10.9 ZOD

Part #: 7520477 Required per assembly: 4
Currently Not Available
9
Polaris 7556287 Washer-Fl, 13X2.5

WASHER-FL, 13X2.5

Part #: 7556287 Required per assembly: 8
Currently Not Available
10

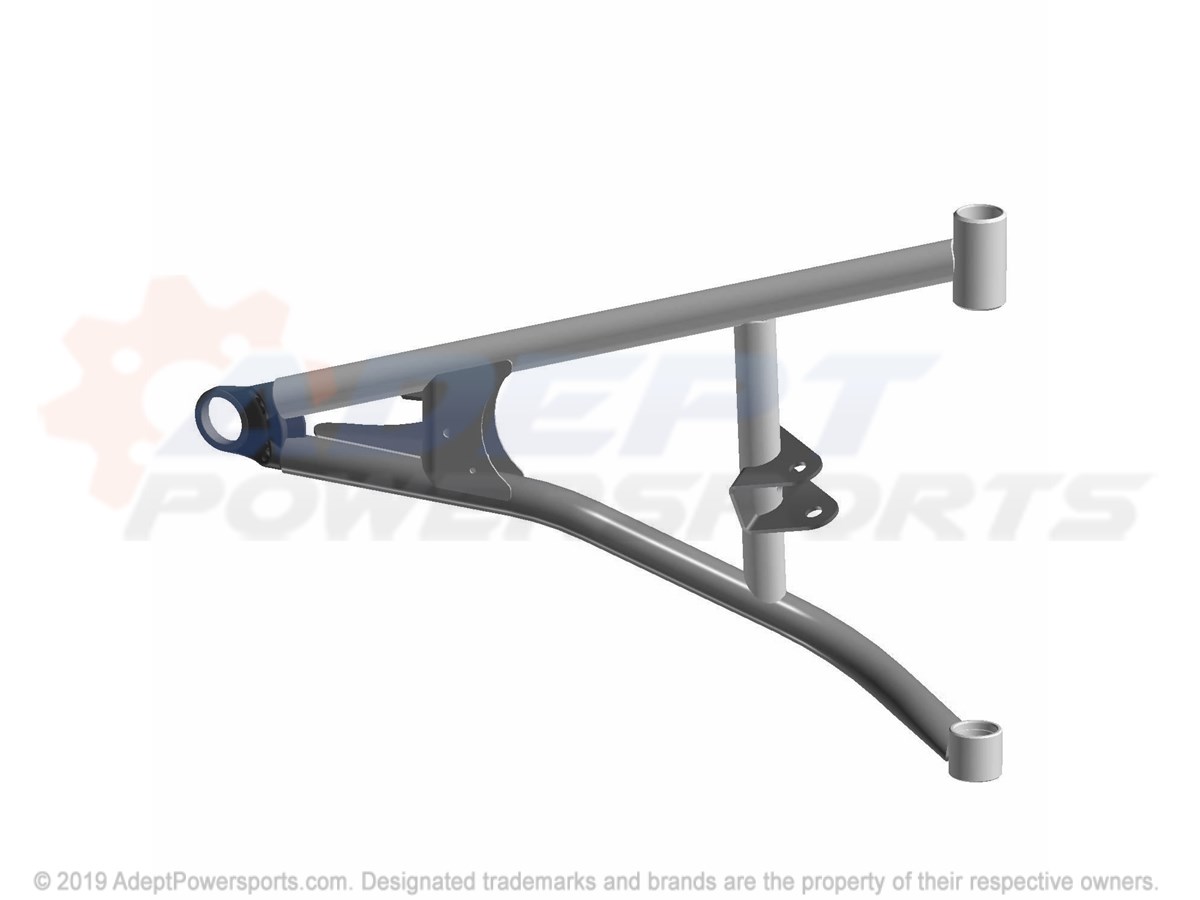

Polaris 1025116-751 Wld-Crlarm, Upr, Fr, Lh, 64, Pbl, Mt

WLD-CRLARM, UPR, FR, LH, 64, PBL, MT

Part #: 1025116-751 Required per assembly: 1
Currently Not Available
11

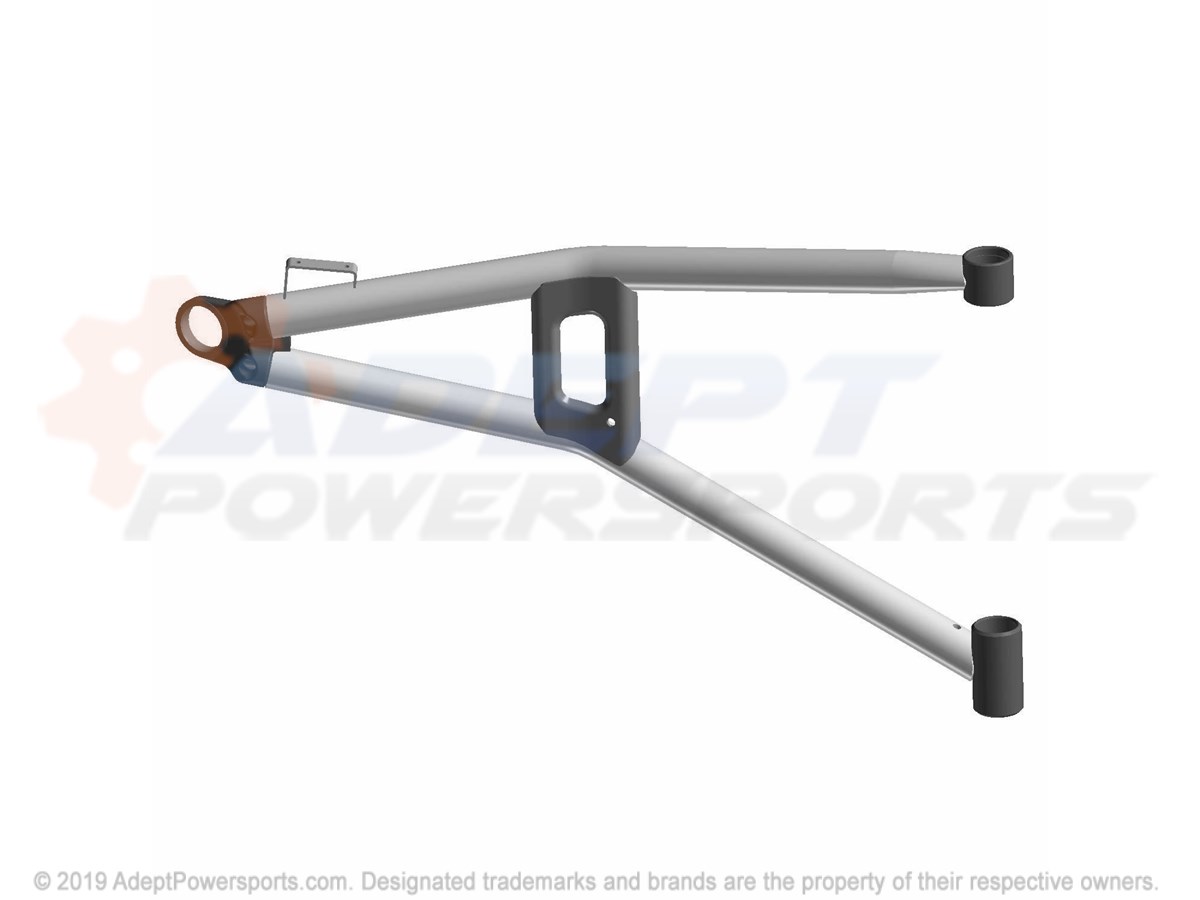

Polaris 1025117-751 Wld-Crlarm, Upr, Fr, Rh, 64, Pbl, Mt

WLD-CRLARM, UPR, FR, RH, 64, PBL, MT

Part #: 1025117-751 Required per assembly: 1
Currently Not Available
12
Polaris 7710869 30Mm, Spiral, Ring, Steel

30MM, SPIRAL, RING, STEEL

Part #: 7710869 Required per assembly: 4
Currently Not Available
13
Polaris 5438641-070 Shield-Cv Front Blk

SHIELD-CV FRONT BLK

Part #: 5438641-070 Required per assembly: 2
Currently Not Available
14

ASM-PIVOT, CAP, SEALED, M12, MINI

Part #: 1543998 Required per assembly: 8
Currently Not Available
15
Polaris 7512084 Screw

SCREW

Part #: 7512084 Required per assembly: 4 Note: Screw
$2.99
$1.73
-
+
Add to cart
16
Polaris 7547334 Nut, Nylok

NUT, NYLOK

Part #: 7547334 Required per assembly: 8
Currently Not Available
