Main Gearcase replacement parts for 2021 Polaris Ranger 570 Crew FULL SIZE (R02)

OEM Parts Polaris 2021 Polaris Ranger 570 Crew FULL SIZE (R02) Main Gearcase

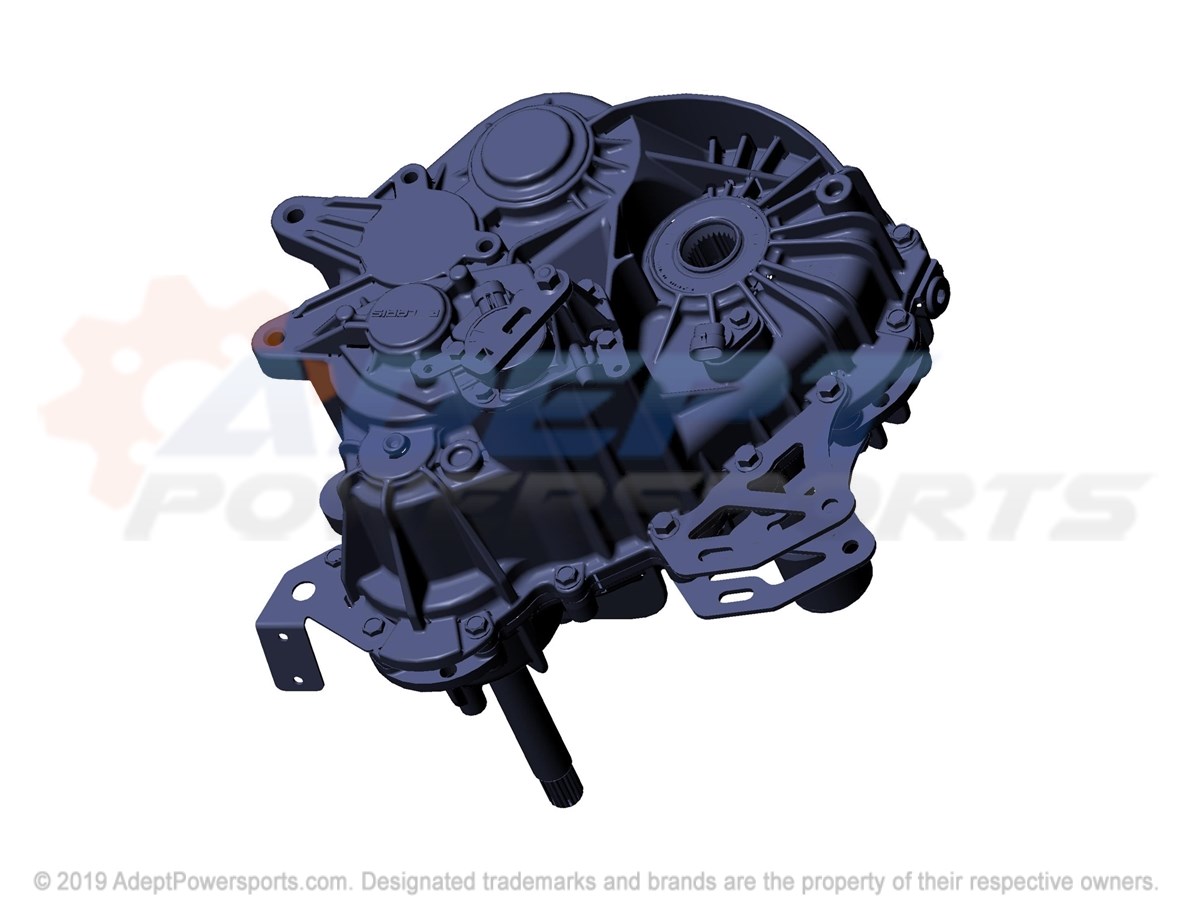

MAIN GEARCASE Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

-	ASM-GEARCASE, RGR, 570 Part #: 1334341 Required per assembly: 1 Note: INCL. ALL Currently Not Available
1	PLUG, SOCKET, HEAD Part #: 3234755 Required per assembly: 1 Note: Plug Currently Not Available
2	PLUG, SOCKET, HEAD, W/MAGNET Part #: 3234756 Required per assembly: 1 Note: Plug, Socket Head Currently Not Available
3	SCREW [4X4 ONLY] Part #: 3234309 Required per assembly: 2 Note: Screw Currently Not Available
4	SCREW, HEX, FLANGE, HEAD, M8, X, 1.25, X, 30 Part #: 3234898 Required per assembly: 14 Note: Screw ~~$9.99~~ $5.75 - + Add to cart
5	SCREW Part #: 3235206 Required per assembly: 6 Currently Not Available
6	SCREW Part #: 3235207 Required per assembly: 3 Currently Not Available
7	SCR-M6X1.0X40 SOC/CAP(105344) Part #: 3235208 Required per assembly: 1 Currently Not Available
8	SCR-SCKT HD CP M6X1X18(105355) Part #: 3235332 Required per assembly: 6 Currently Not Available
9	SCREW, CAP, HH, M8X1.25X20 Part #: 3236169 Required per assembly: 8 ~~$9.99~~ $5.85 - + Add to cart
10	NUT, LOCK, HEX, FLANGE, NYLON Part #: 3235210 Required per assembly: 1 Currently Not Available
11	WASHER Part #: 3234091 Required per assembly: 2 Note: Washer, Cup Currently Not Available
12	WASHER Part #: 3235211 Required per assembly: 3 Currently Not Available
13	WASHER Part #: 3235212 Required per assembly: 1 Currently Not Available
14	WASHER 22.5 X 30 X 1.5 Part #: 3236410 Required per assembly: 1 Currently Not Available
15	PIN, DOWEL Part #: 3234330 Required per assembly: 2 ~~$6.99~~ $4.03 - + Add to cart
16	SPRING-SLOTTED PIN 6MM Part #: 7043746 Required per assembly: 1 Currently Not Available
18	PIN, DOWEL, 6X10 Part #: 3236295 Required per assembly: 2 Currently Not Available
19	RING, SNAP Part #: 7710434 Required per assembly: 1 ~~$2.99~~ $1.73 - + Add to cart
20	RING, SNAP Part #: 3233106 Required per assembly: 2 Currently Not Available
21	RING, RETAINING Part #: 3233834 Required per assembly: 1 Currently Not Available
22	RING, RETAINING Part #: 3233364 Required per assembly: 1 Currently Not Available
23	RING, RETAINING Part #: 3234269 Required per assembly: 1 Currently Not Available
24	RING, RETAINING Part #: 3234090 Required per assembly: 2 Currently Not Available
25	RING, RETAINING, [1322419] Part #: 3234205 Required per assembly: 2 Note: Ring, Retaining Currently Not Available
26	RING RETAINING EXTERNAL Part #: 3235214 Required per assembly: 3 Currently Not Available
27	RING RETAINING Part #: 3235216 Required per assembly: 1 Currently Not Available
28	SHAFT, INPUT Part #: 3235429 Required per assembly: 1 Currently Not Available
29	WASHER, THRUST Part #: 3233378 Required per assembly: 2 Currently Not Available
30	WASHER THRUST .446X.88X.025 Part #: 3234642 Required per assembly: 1 Currently Not Available
31	SHIM Part #: 3234272 Required per assembly: 1 Currently Not Available
32	SHIM Part #: 3234273 Required per assembly: 1 Currently Not Available
33	BEARING, NEEDLE Part #: 3233014 Required per assembly: 2 Currently Not Available
34	BEARING Part #: 3233019 Required per assembly: 2 Currently Not Available
35	BEARING Part #: 3233020 Required per assembly: 2 Currently Not Available
36	BEARING, BALL Part #: 3233268 Required per assembly: 2 Currently Not Available
37	BEARING, BALL Part #: 3234065 Required per assembly: 3 Currently Not Available
38	BEARING NEEDLE Part #: 3233384 Required per assembly: 1 Currently Not Available
39	BEARING BALL Part #: 3235218 Required per assembly: 1 Currently Not Available
40	BEARING, BALL Part #: 3234652 Required per assembly: 2 Currently Not Available
41	SPRING, COMPRESSION Part #: 3233830 Required per assembly: 1 Currently Not Available
42	SPRING, COMPRESSION Part #: 3234078 Required per assembly: 2 Currently Not Available
43	SPRING, COMPRESSION Part #: 3234089 Required per assembly: 2 ~~$24.99~~ $14.65 - + Add to cart
44	SPRING, TORSION Part #: 3234276 Required per assembly: 1 Currently Not Available
45	SPRING, COMPRESSION Part #: 3234277 Required per assembly: 1 Currently Not Available
46	SPRING WASHER Part #: 3235327 Required per assembly: 1 Currently Not Available
47	TUBE, SNORKEL Part #: 3234278 Required per assembly: 1 Currently Not Available
48	DRUM, SHIFT Part #: 3235463 Required per assembly: 1 Currently Not Available
49	CARRIER, DIFFERENTIAL, MACH Part #: 3236287 Required per assembly: 1 Currently Not Available
50	GEAR, 16T Part #: 3233839 Required per assembly: 1 Currently Not Available
51	GEAR, 31T Part #: 3233832 Required per assembly: 1 Currently Not Available
52	FORK, SHIFT Part #: 3235455 Required per assembly: 1 Currently Not Available
53	PLATE, PARK Part #: 3235456 Required per assembly: 1 Currently Not Available
54	DETENT STAR Part #: 3235603 Required per assembly: 1 Currently Not Available
55	SHAFT IDLER 29T Part #: 3235223 Required per assembly: 1 Currently Not Available
56	SHAFT, REVERSE, 25T Part #: 3235451 Required per assembly: 1 Currently Not Available
57	GEAR, OUTPUT, 14T, MACH Part #: 3236290 Required per assembly: 1 Currently Not Available
58	GEAR, 53T, OUTPUT Part #: 3236291 Required per assembly: 1 Currently Not Available
59	GEAR, OUTPUT, 14T, DISCONNECT, MAC Part #: 3236289 Required per assembly: 1 Currently Not Available
60	SHAFT, FRONT, OUTPUT, LONG Part #: 3236439 Required per assembly: 1 Currently Not Available
61	BELLCRANK Part #: 3235474 Required per assembly: 1 Currently Not Available
62	COLLAR, SHIFT Part #: 3234073 Required per assembly: 1 Currently Not Available
63	TUBE, VENT, (1332366) Part #: 3234230 Required per assembly: 1 Note: Tube, Vent [4x4] Currently Not Available
64	GEAR, LOW, 67T Part #: 3235232 Required per assembly: 1 Currently Not Available
65	DOG ENGAGEMENT 6-FACE Part #: 3235233 Required per assembly: 1 Currently Not Available
66	GEAR 53T Part #: 3235234 Required per assembly: 1 Currently Not Available
67	GEAR 46T STAGE 3 Part #: 3235236 Required per assembly: 1 Currently Not Available
68	SHAFT SHIFT Part #: 3235238 Required per assembly: 1 Currently Not Available
69	GEAR, 48T, STAGE, 2 Part #: 3235450 Required per assembly: 1 Currently Not Available
70	SHIFT, DOG, PARK/LOW Part #: 3235457 Required per assembly: 1 Currently Not Available
71	RAIL, SHIFT, SHAFT Part #: 3235542 Required per assembly: 1 Currently Not Available
72	SPROCKET-48T, 6-FACE, REVERSE Part #: 3235755 Required per assembly: 1 Currently Not Available
73	PIN, DIFFERENTIAL Part #: 3236292 Required per assembly: 1 Currently Not Available
74	GEAR, 13T, SNORKEL Part #: 3236412 Required per assembly: 1 Currently Not Available
75	DOG, ENGAGEMENT Part #: 3236293 Required per assembly: 1 Currently Not Available
76	BRACKET, REAR, MOUNT Part #: 3235510 Required per assembly: 1 Currently Not Available
77	COVER, SECTOR, GEARS, MACH, VENT Part #: 3235713 Required per assembly: 1 Note: INCL ALL HARDWASR Currently Not Available
78	ASM-SUB PINION SHAFT(411759) Part #: 3235336 Required per assembly: 1 Currently Not Available
79	FORK, SHIFT Part #: 3235454 Required per assembly: 2 Currently Not Available
80	PAWL, ROLLER Part #: 3235452 Required per assembly: 1 Currently Not Available
81	SUBASM, RH, CASE Part #: 3235756 Required per assembly: 1 Currently Not Available
82	PINION, 10T, BEVEL Part #: 3236288 Required per assembly: 2 Currently Not Available
83	SUBASSEMBLY, DIFFERENTIAL Part #: 3236285 Required per assembly: 1 Currently Not Available
84	SUBASSEMBLY, LH, CASE Part #: 3236550 Required per assembly: 1 Currently Not Available
86	COVER BEARING CENTER DRIVE Part #: 3235241 Required per assembly: 1 Currently Not Available
87	BRACKET, WIRE, HARNESS Part #: 3235350 Required per assembly: 2 Currently Not Available
88	BRACKET, HARNESS, MOUNT Part #: 5257251 Required per assembly: 1 Currently Not Available
89	BRACKET, MOUNT, REAR Part #: 3235511 Required per assembly: 1 Currently Not Available
90	WASHER, THRUST, 40.83X56.25X0.38 Part #: 3236294 Required per assembly: 2 Currently Not Available
91	O-RING Part #: 3233828 Required per assembly: 1 Currently Not Available
92	CHAIN, SILENT Part #: 3234737 Required per assembly: 1 Currently Not Available
93	PIN-GEAR POSITION SWITCH Part #: 7661999 Required per assembly: 1 Currently Not Available
94	SOLENOID Part #: 3235478 Required per assembly: 1 Currently Not Available
95	K-SPEED SENSOR Part #: 3239727 Required per assembly: 1 Currently Not Available
96	TRIPLE, LIP, SEAL, 25, X, 80, X, 10 Part #: 3234113 Required per assembly: 1 Note: Seal, Triple Lip Currently Not Available
97	SEAL Part #: 3234851 Required per assembly: 1 Currently Not Available
98	SEAL-TRIPLE LIP VITON 40X70X7 Part #: 3235052 Required per assembly: 2 Currently Not Available
99	O-RING Part #: 3234302 Required per assembly: 1 Currently Not Available
100	O-RING Part #: 3233836 Required per assembly: 1 Currently Not Available
