Wire Harnesses replacement parts for 2021 Polaris Ranger 570 Crew (R02)

OEM Parts Polaris 2021 Polaris Ranger 570 Crew (R02) Wire Harnesses

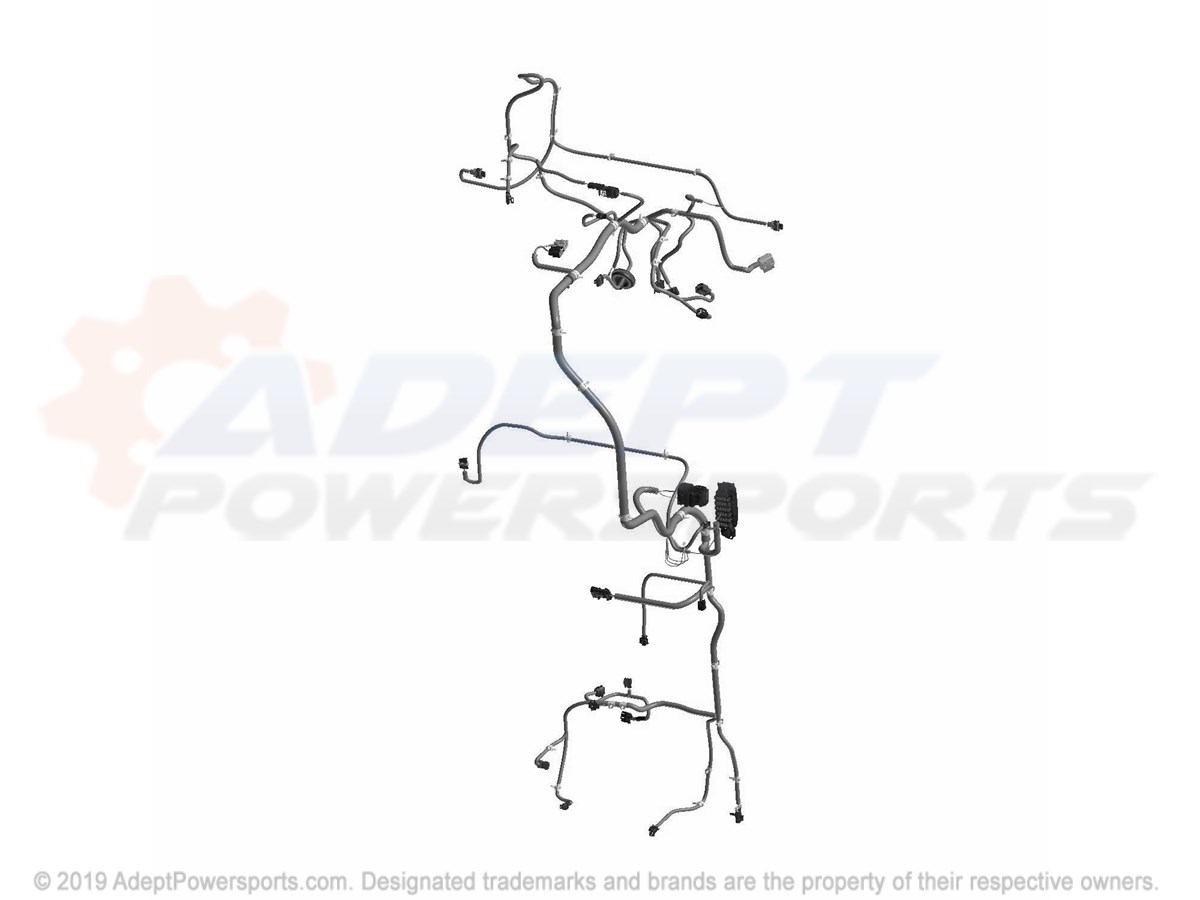

WIRE HARNESSES Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HARNESS-CHASSIS, CREW, 570, EPS Part #: 2414987 Required per assembly: 1 Note: INCL. 2-9, ALL KITS Currently Not Available
2	LABEL-FUSE BOX Part #: 7181488 Required per assembly: 1 Currently Not Available
3	CLIP-ROUTING Part #: 7081496 Required per assembly: 32 Currently Not Available
4	COVER, DIAGNOSTIC, W/CLIP Part #: 4012170 Required per assembly: 1 Currently Not Available
5	FUSE, MINI, BLADE, 5, AMP Part #: 4011652 Required per assembly: 2 Note: Fuse, Mini Blade, 5 Amp. Currently Not Available
6	BREAKER, CIRCUIT, 20, AMP Part #: 4011372 Required per assembly: 1 Currently Not Available
7	RELAY-SPST, 12V, 20A, EPXY, HFA Part #: 4016819 Required per assembly: 6 Currently Not Available
8	FUSE-20 MINI BLADE 58V(YELLOW) Part #: 4012811 Required per assembly: 5 Currently Not Available
9	FUSE, 10AMP Part #: 2434016 Required per assembly: 3 Note: Fuse, 10 AMP, Ignition Sold in multiples of 10 only Currently Not Available
10	GROMMET, ELECTRICAL Part #: 5414440 Required per assembly: 1 Currently Not Available
11	BRACKET, MOUNT, FUSE, BLOCK, BLACK Part #: 5256408-329 Required per assembly: 1 Currently Not Available
12	SCREW Part #: 7512084 Required per assembly: 2 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
13	SCREW Part #: 7518529 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
14	HARNESS-BOX Part #: 2413937 Required per assembly: 1 Currently Not Available
15	SCREW Part #: 7518535 Required per assembly: 2 Currently Not Available
16	STRAP PANDUIT Part #: 7080138 Required per assembly: 1 ~~$1.99~~ $1.15 - + Add to cart
17	CLIP Part #: 7670134 Required per assembly: 1 Note: Clip, Wire Currently Not Available
