Box Mounting replacement parts for 2021 Polaris Ranger 570 (R01)

OEM Parts Polaris 2021 Polaris Ranger 570 (R01) Box Mounting

BOX MOUNTING Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

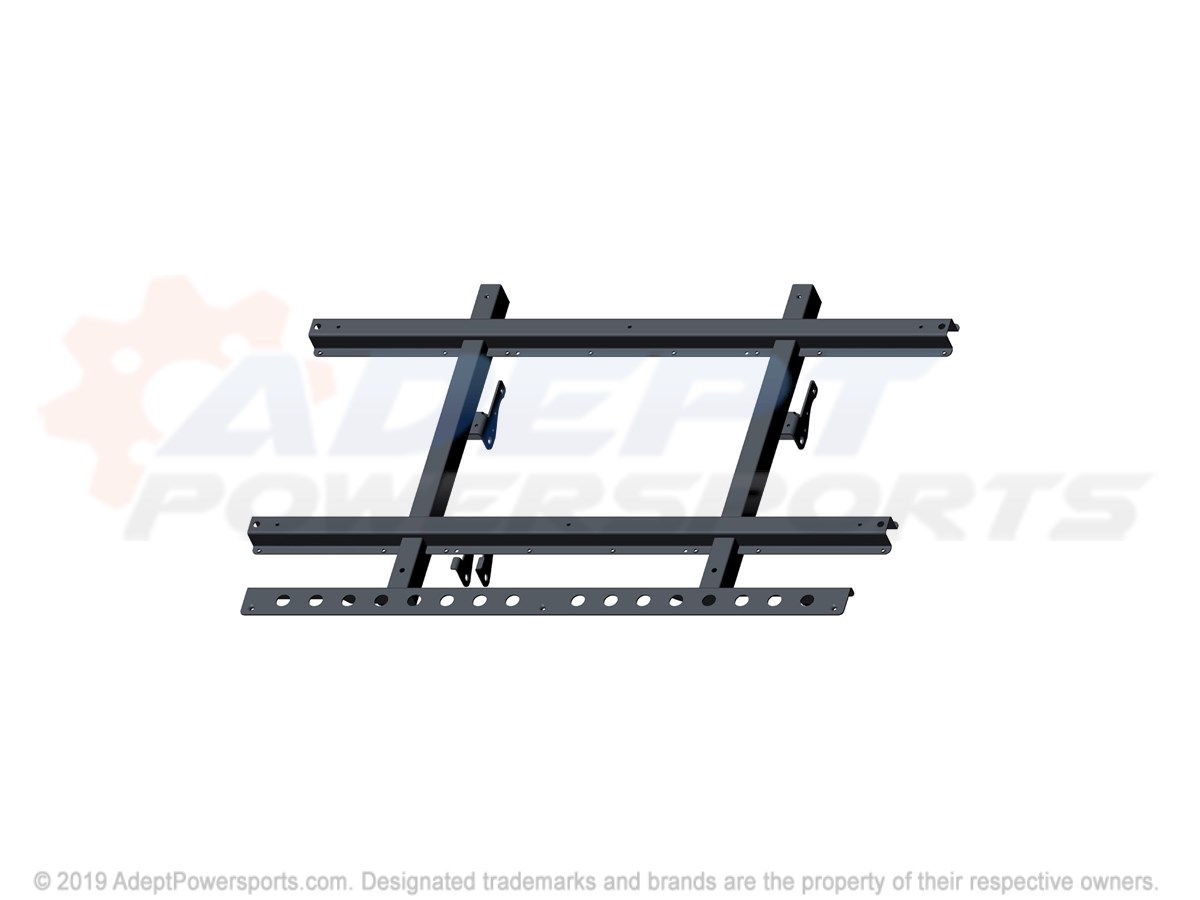

1	WELD-BOX, SUPPORT, BLK Part #: 1020247-329 Required per assembly: 1 Currently Not Available
2	PIN, CLEVIS Part #: 7661878 Required per assembly: 2 Currently Not Available
3	BUSHING, BOX, LATCH Part #: 5434226 Required per assembly: 4 Currently Not Available
4	SPRING, EXHAUST Part #: 7041687 Required per assembly: 2 ~~$3.99~~ $2.30 - + Add to cart
5	BOLT Part #: 7515319 Required per assembly: 2 Note: Bolt Currently Not Available
6	SCREW Part #: 7517386 Required per assembly: 12 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
7	NUT, NYLOCK Part #: 7542343 Required per assembly: 2 Note: Nut, Flange Currently Not Available
8	WASHER Part #: 7556329 Required per assembly: 11 Currently Not Available
9	LATCH, MATTE, BLACK Part #: 1019120-458 Required per assembly: 1 Currently Not Available
10	PIN, BOX, HINGE, BLACK Part #: 1016695-329 Required per assembly: 2 Note: Pin, Box Hinge, Black Currently Not Available
11	SHIELD-HEAT, CENTER-BOX Part #: 5264246 Required per assembly: 1 Currently Not Available
12	SCREW Part #: 7517686 Required per assembly: 9 ~~$2.99~~ $1.73 - + Add to cart

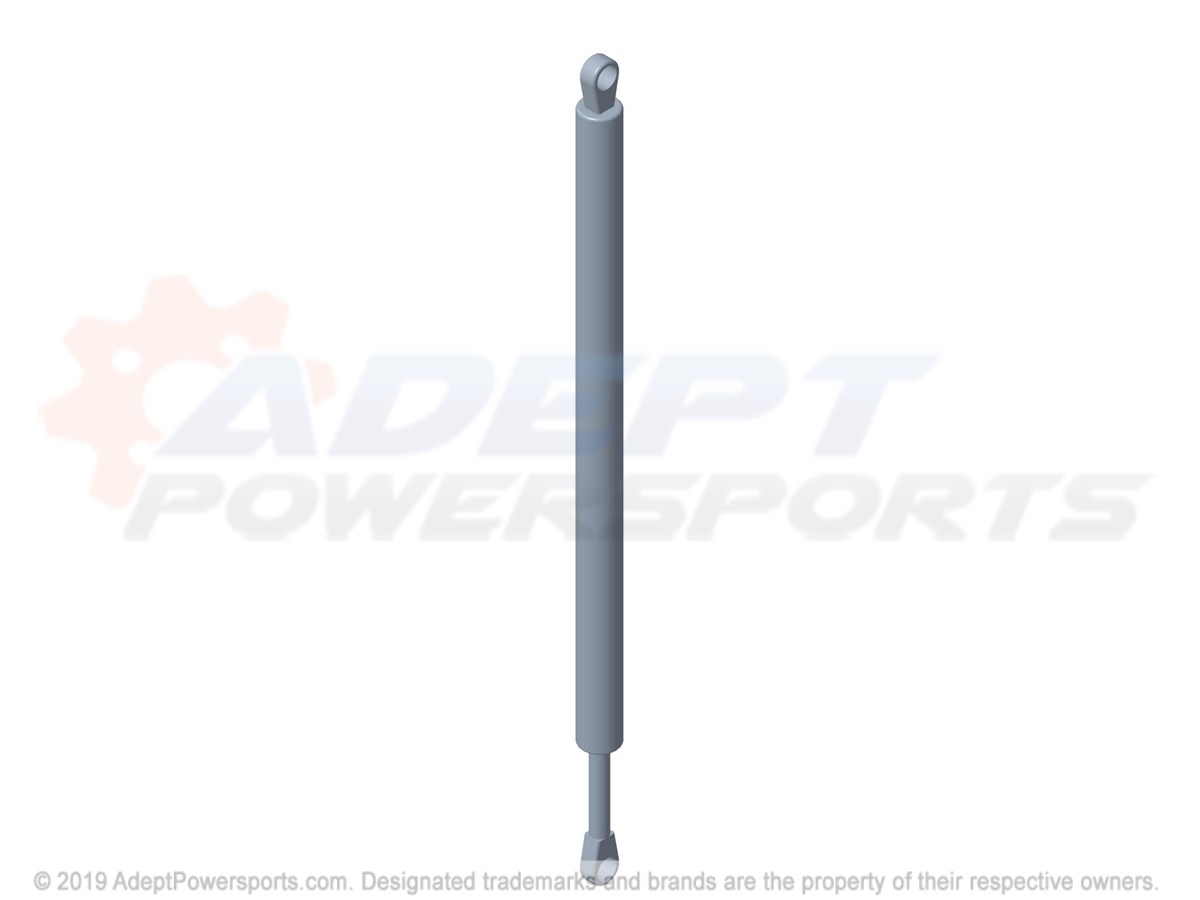

13	SHOCK-BOX, DUMP, LG, SINGLE, LOBE Part #: 7044675 Required per assembly: 1 Currently Not Available
14	CLIP-HITCHPIN .148X3 1/16 Part #: 7661067 Required per assembly: 2 Note: Clip Currently Not Available
15	WASHER STEEL Part #: 7558402 Required per assembly: 2 ~~$1.34~~ $0.97 - + Add to cart
16	WASHER, FLAT Part #: 7555859 Required per assembly: 12 Note: Washer, Flat ~~$2.99~~ $1.73 - + Add to cart

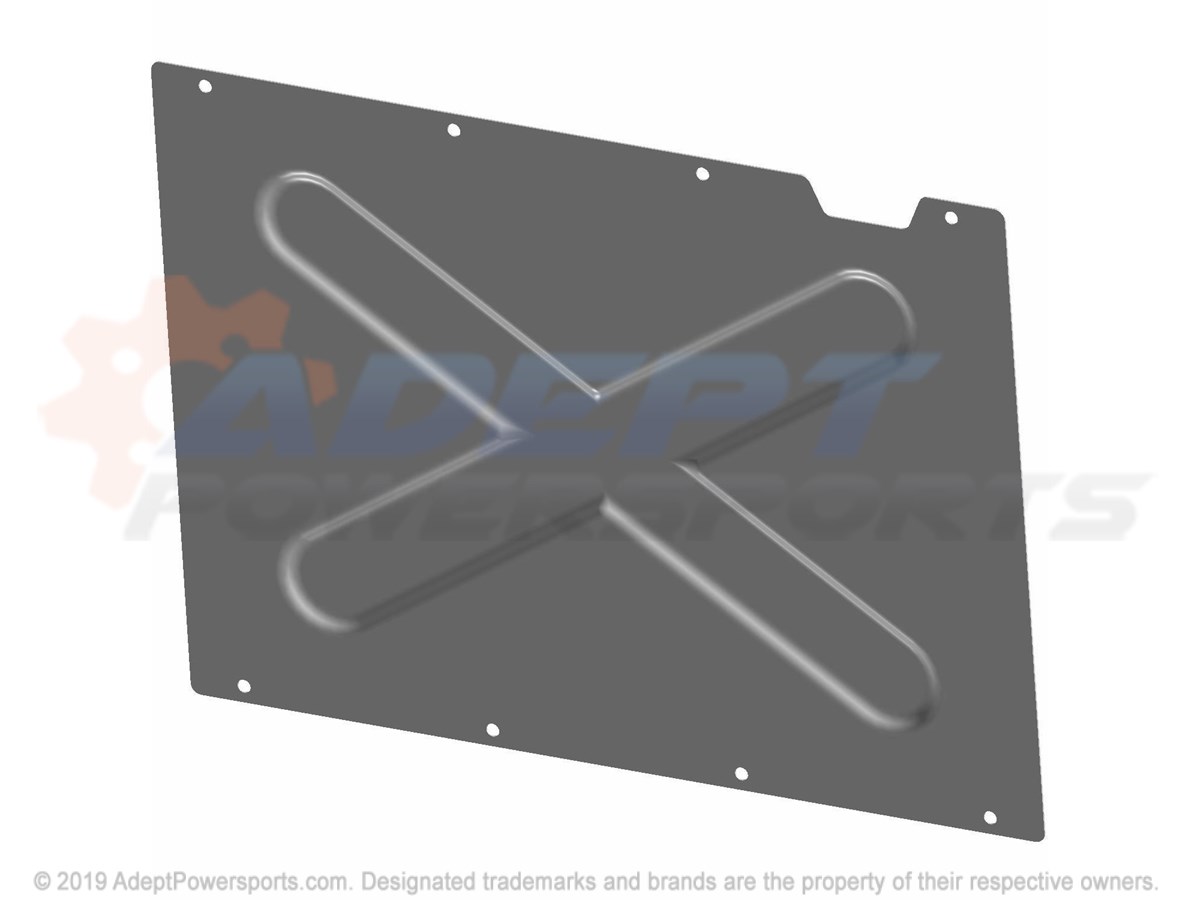

17	SHIELD, HEAT, BOX Part #: 5256411 Required per assembly: 1 Currently Not Available
18	SCREW Part #: 7518375 Required per assembly: 2 Currently Not Available
19	BUMPER-RUBBER .62 STEALTH Part #: 5411435 Required per assembly: 2 Currently Not Available
20	SCR, 8-32X1.50, PAN, PH, SS Part #: 7519529 Required per assembly: 2 Currently Not Available
