OEM Parts Polaris 2021 Polaris Ranger 1000XP RC (R01) Roof

2021 Polaris Ranger 1000XP RC (R01) R21RRK99A9/AP/AW/B9/BP/BW - Roof

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

K-ACCY, ROOF, POLY, SPORT, ZS

Part #: 2882911 Required per assembly: 1 Note: Sold in multiples of 2 only
Currently Not Available
2
Polaris 5813845 Foam, Seal, Roof, Side

FOAM, SEAL, ROOF, SIDE

Part #: 5813845 Required per assembly: 2
Currently Not Available
3
Polaris 5813846 Foam, Seal, Roof, Rear

FOAM, SEAL, ROOF, REAR

Part #: 5813846 Required per assembly: 1
Currently Not Available
4
Polaris 5814649 Seal-Roof, Front, Zs

SEAL-ROOF, FRONT, ZS

Part #: 5814649 Required per assembly: 1
Currently Not Available
5

U-TYPE, SPEED, NUT

Part #: 7081305 Required per assembly: 2 Note: Clip, U Speed Nut [Built 12/07/09 and Before]
Currently Not Available
6

PAD-FOAM, 6, INCHES

Part #: 5521787-06 Required per assembly: 3
Currently Not Available
7
Polaris 7517281 Screw, Flange

SCREW, FLANGE

Part #: 7517281 Required per assembly: 4 Note: Screw
Currently Not Available
8
Polaris 7518158 Screw

SCREW

Part #: 7518158 Required per assembly: 2
Currently Not Available
9

NUT, FLANGE

Part #: 7547332 Required per assembly: 4 Note: Nut, Nylok
Currently Not Available
10
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 4
$2.99
$1.73
-
+
Add to cart
11

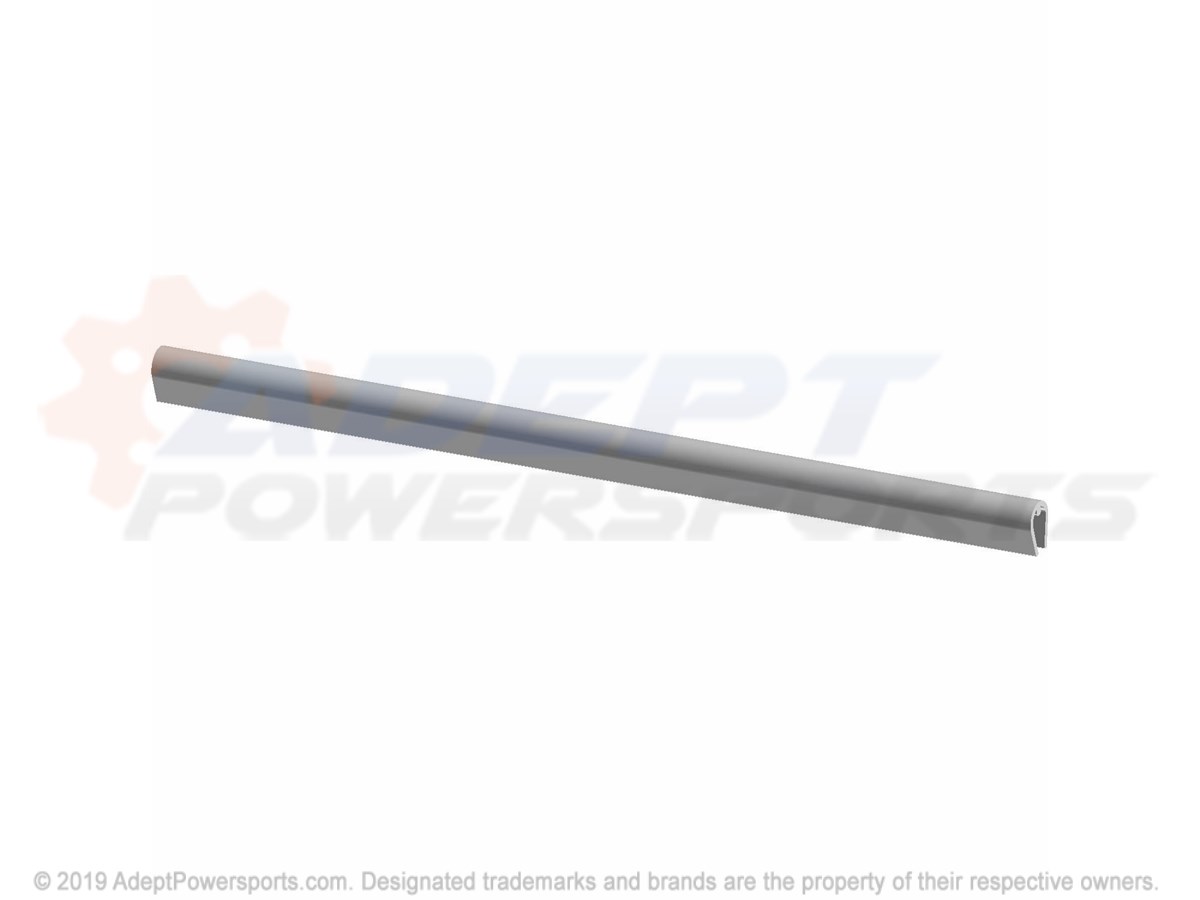

Polaris 8360163-90 Trim-Edge, Pvc, Adhesive, 90Mm

TRIM-EDGE, PVC, ADHESIVE, 90MM

Part #: 8360163-90 Required per assembly: 2
Currently Not Available
12
Polaris 7519650 Screw

SCREW

Part #: 7519650 Required per assembly: 4
Currently Not Available
