Winch replacement parts for 2021 Polaris Ranger Crew 1000XP PS TX CA (2020) (R01)

OEM Parts Polaris 2021 Polaris Ranger Crew 1000XP PS TX CA (2020) (R01) Winch

WINCH Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

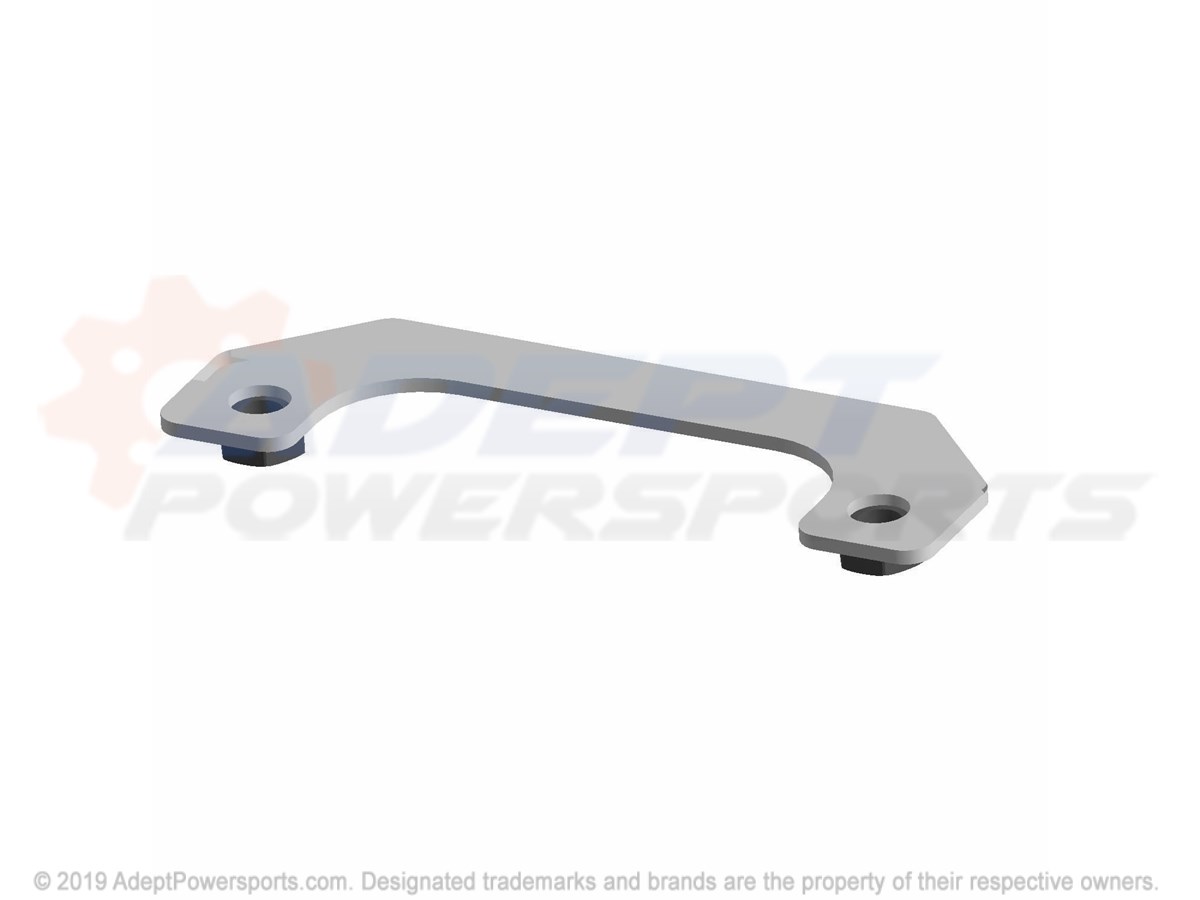

1	WELD-BRKT, WINCH, FRLD, BACKER Part #: 1023559 Required per assembly: 1 Note: INCLS. PLATE ~~$10.99~~ $6.33 - + Add to cart
1	WELD-BRKT, WINCH, FRLD, BACKER Part #: 1023559 Required per assembly: 1 ~~$10.99~~ $6.33 - + Add to cart
2	CLIP-ROUTING Part #: 7082073 Required per assembly: 2 Currently Not Available
3	STRAP-WINCH, HOOK Part #: 7082085 Required per assembly: 1 Currently Not Available
3	HOOK, LATCH Part #: 2411836 Required per assembly: 1 Note: INCLS. STRAP Currently Not Available
4	WINCH-POL, 4.5, TOPSPL, 90DEG Part #: 2207537 Required per assembly: 1 Currently Not Available
4	ASM-WINCH, W/CNTR, 45PROHD2, ZS Part #: 2638180 Required per assembly: 1 Note: INCLS. WINCH Currently Not Available
5	KIT-SYNTH WINCH ROPE 50 FT Part #: 2879187 Required per assembly: 1 Currently Not Available
6	CABLE-WINCH, YELLOW, 6, GA, 120MM Part #: 4013468-120 Required per assembly: 1 Currently Not Available
7	CONTACTOR-INT, UVRSL Part #: 4015600 Required per assembly: 1 Currently Not Available
8	CABLE-CONTACTOR-TERM BLOCK ZS Part #: 4017112 Required per assembly: 1 Currently Not Available
9	CLAMP-.751D, RUBBER, COATED, HD Part #: 7081235 Required per assembly: 1 Currently Not Available
10	SCREW Part #: 7517358 Required per assembly: 2 Currently Not Available
11	SCREW Part #: 7518238 Required per assembly: 2 ~~$3.79~~ $1.73 - + Add to cart
12	SCREW Part #: 7519133 Required per assembly: 4 Currently Not Available
13	NUT Part #: 7547423 Required per assembly: 2 Currently Not Available
14	SCREW Part #: 7519071 Required per assembly: 2 Currently Not Available
15	SCREW Part #: 7519905 Required per assembly: 2 Currently Not Available
16	SCR-TFHFL-M6X1.0X25 ZOD Part #: 7519342 Required per assembly: 2 ~~$4.04~~ $2.91 - + Add to cart
17	CABLE-WINCH, BLUE, 6, GA, 80, MM Part #: 4013469-80 Required per assembly: 1 Currently Not Available
18	JUMPER-WINCH, SWITCH, SEALED Part #: 2415055 Required per assembly: 1 ~~$49.99~~ $31.55 - + Add to cart

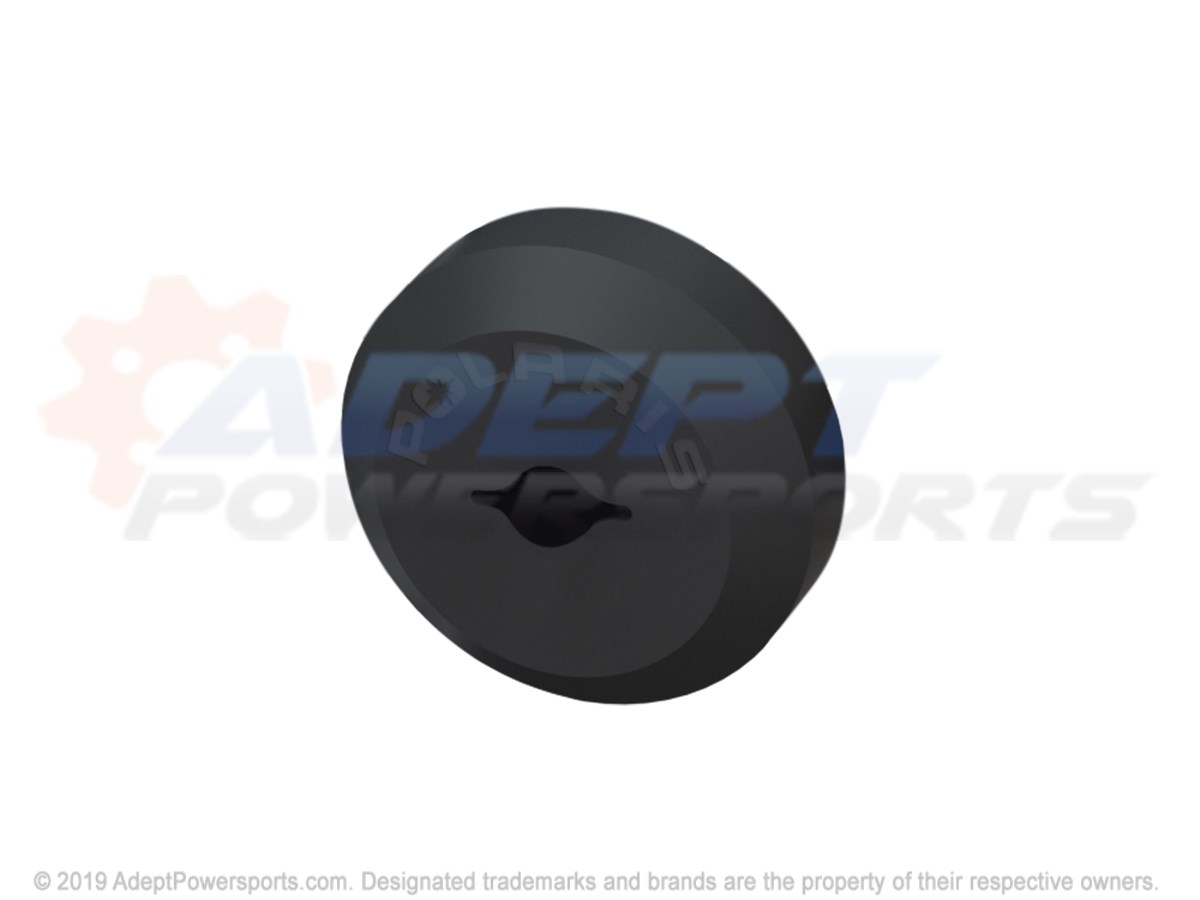

19	STOP-MAGNET, BMPR, V2 Part #: 5415787 Required per assembly: 1 Currently Not Available
20	SWITCH-WINCH, SEALED Part #: 4017200 Required per assembly: 1 ~~$104.99~~ $54.34 - + Add to cart
