Throttle Body And Valve Cover replacement parts for 2021 Polaris Ranger Crew 1000XP PS MUD (R02)

OEM Parts Polaris 2021 Polaris Ranger Crew 1000XP PS MUD (R02) Throttle Body And Valve Cover

THROTTLE BODY AND VALVE COVER Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SPARK PLUG-10 MM Part #: 3022662 Required per assembly: 2 Note: NGK MR7F ~~$9.99~~ $6.31 - + Add to cart
2	ISOLATOR-VALVE COVER Part #: 5413806 Required per assembly: 4 Currently Not Available
3	SEAL-VALVE, COVER, 2CY, DOHC Part #: 5415011 Required per assembly: 1 Currently Not Available
4	COVER-VALVE, CAST, 2CYL, DOHC Part #: 5634650 Required per assembly: 1 Currently Not Available
5	BOLT-SHLDR M6X12X15 Part #: 7519165 Required per assembly: 4 Currently Not Available
6	WASHER, GROUNDING Part #: 7556750 Required per assembly: 1 Currently Not Available
7	ASM-OIL FILL CAP Part #: 1205012 Required per assembly: 1 Note: INCL. 8 Currently Not Available
8	O-RING, FILL, CAP Part #: 5414362 Required per assembly: 1 Currently Not Available
9	ADAPTER-THROTTLE BODY Part #: 3023789 Required per assembly: 2 Currently Not Available
10	SCREW Part #: 7519297 Required per assembly: 4 Currently Not Available

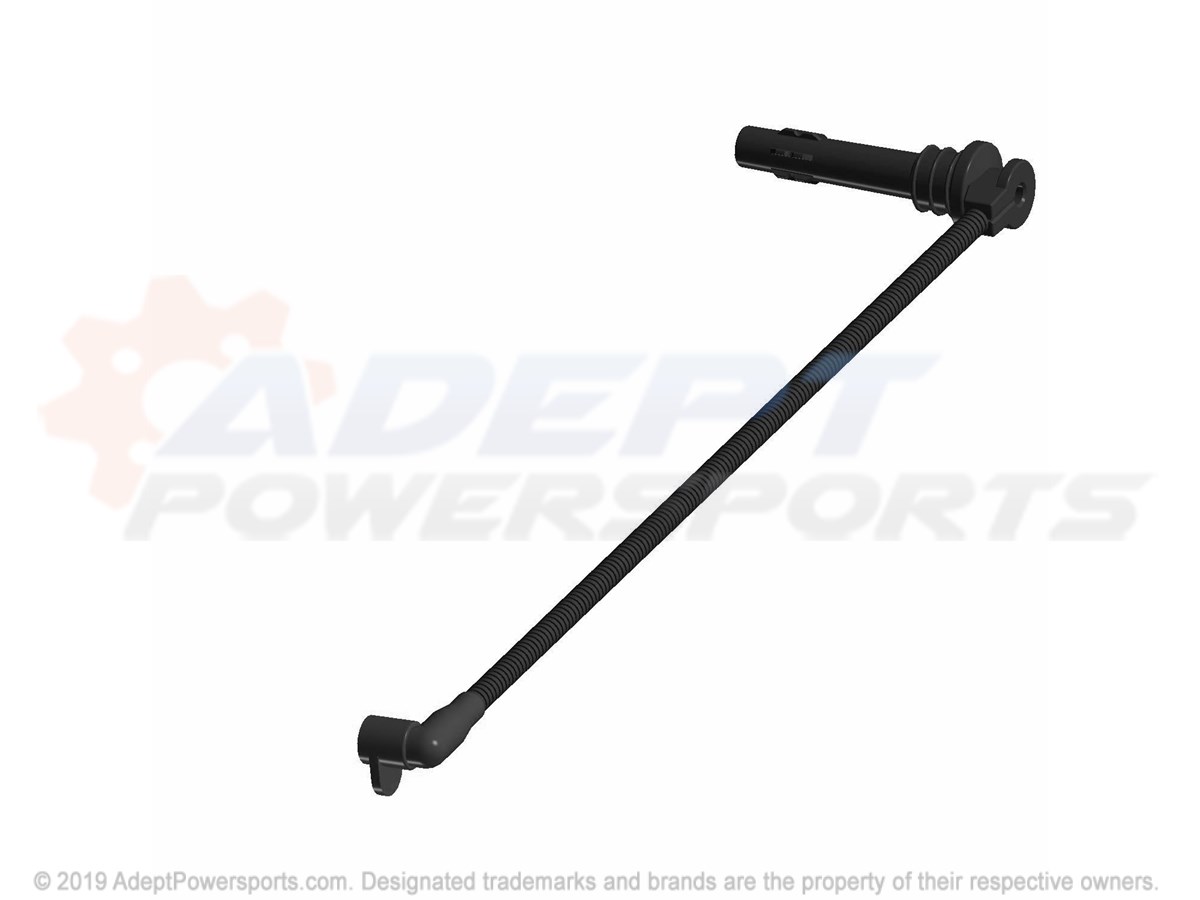

11	WIRE-SPARKPLUG, MAG Part #: 4016939 Required per assembly: 1 Currently Not Available

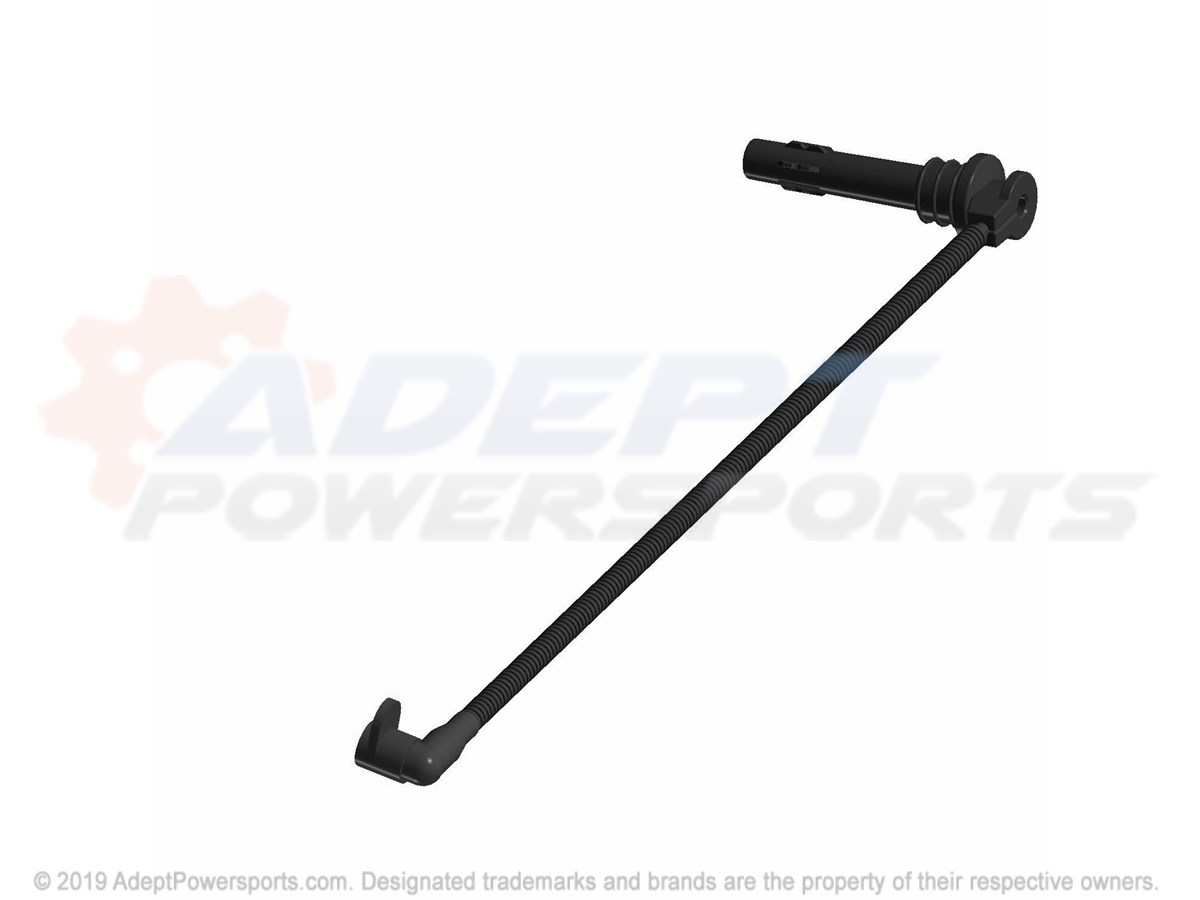

12	WIRE-SPARKPLUG, PTO Part #: 4016940 Required per assembly: 1 Currently Not Available
13	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 1 Note: Cable Tie Currently Not Available
