OEM Parts Polaris 2021 Polaris Ranger 1000 FULL SIZE EPS EU Tractor ZUG (R01) Rear Wheels

2021 Polaris Ranger 1000 FULL SIZE EPS EU Tractor ZUG (R01) R21TAE99FA/SFA/SCA/SCK - Rear Wheels

REAR WHEELS Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

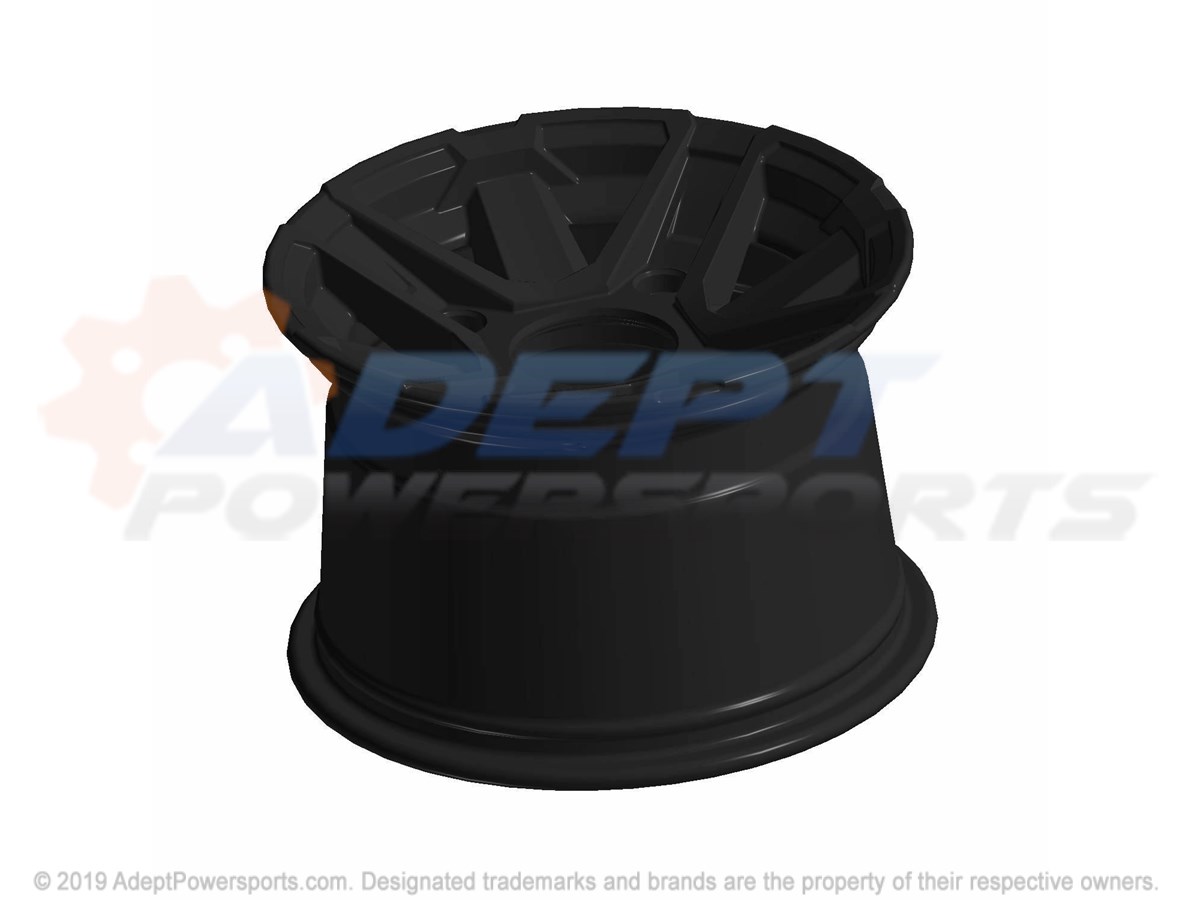

Polaris 1521605-067 Rim, Rear, Black, [Aac][Ar][Arc][Eac][Eacc]

RIM, REAR, BLACK, [AAC][AR][ARC][EAC][EACC]

Part #: 1521605-067 Required per assembly: 2 Note: E99FA
Currently Not Available
1
Polaris 1522670-458 Rim-Rear, 12X8, Al, 31Mmofst, Mblk

RIM-REAR, 12X8, AL, 31MMOFST, MBLK

Part #: 1522670-458 Required per assembly: 1 Note: S99CK
Currently Not Available
2
Polaris 5413976 Cap-Hub Dust

CAP-HUB DUST

Part #: 5413976 Required per assembly: 2 Note: E99FA
Currently Not Available
2
Polaris 1521954 Cap, Rim

CAP, RIM

Part #: 1521954 Required per assembly: 2 Note: S99CK
Currently Not Available
3
Polaris 1525017 Valve, Rim

VALVE, RIM

Part #: 1525017 Required per assembly: 2
Currently Not Available
4

TIRE-RR, 26X11R12, PXT, E-MARK

Part #: 5416147 Required per assembly: 2 Note: E99FA
Currently Not Available
4

TIRE-RR, 27X11.00-12, MU52, EM

Part #: 5417933 Required per assembly: 1 Note: S99CK
Currently Not Available
5
Polaris 7547489 Nut, Wheel

NUT, WHEEL

Part #: 7547489 Required per assembly: 8 Note: S99CK
Currently Not Available
5
Polaris 7547660 Nut, Lug

NUT, LUG

Part #: 7547660 Required per assembly: 8 Note: E99FA
Currently Not Available
