OEM Parts Polaris 2021 Polaris Ranger 1000 FULL SIZE IS EU (R01) Headlights And Taillights

2021 Polaris Ranger 1000 FULL SIZE IS EU (R01) R21TAE99JA - Headlights And Taillights

HEADLIGHTS AND TAILLIGHTS Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

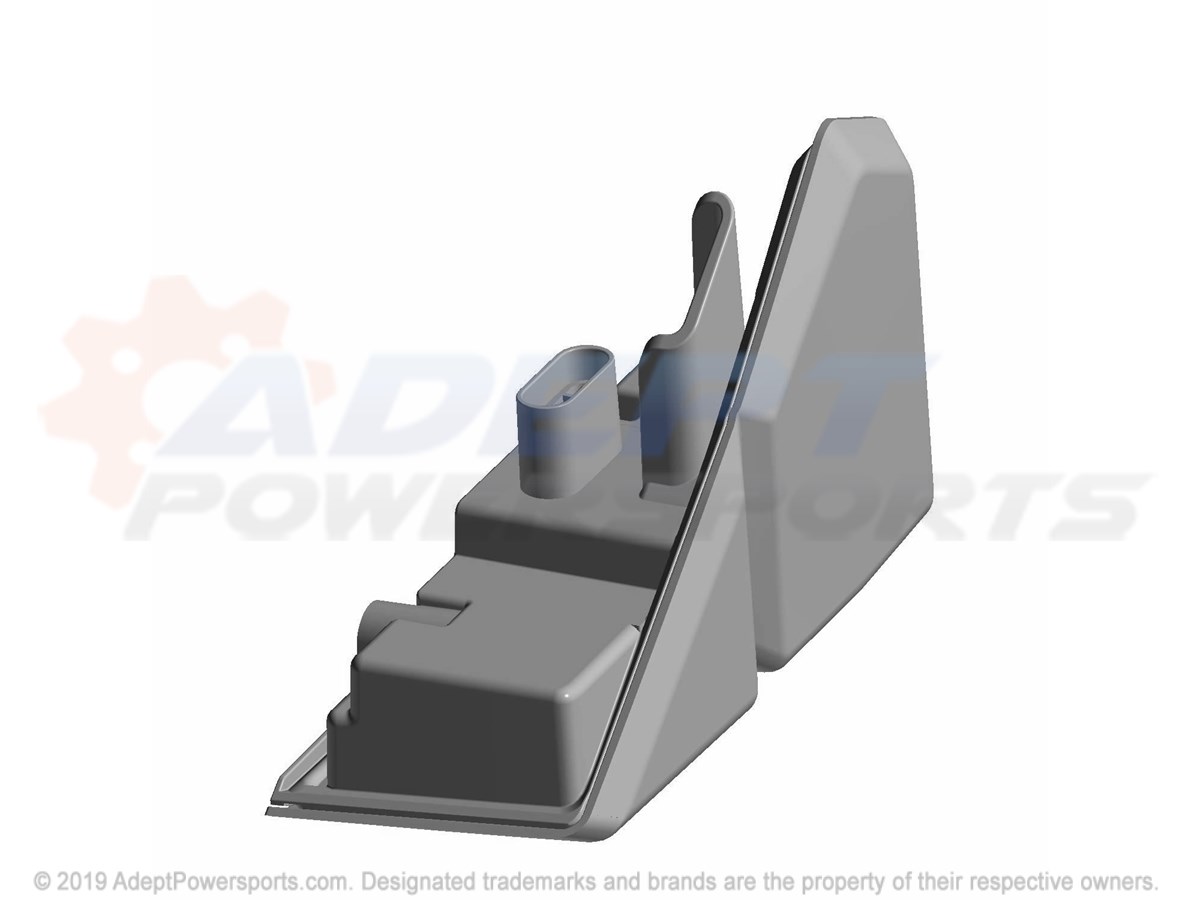

ASM-HEADLIGHT , ECE, RGR, LH

Part #: 2415401 Required per assembly: 1
Currently Not Available
2

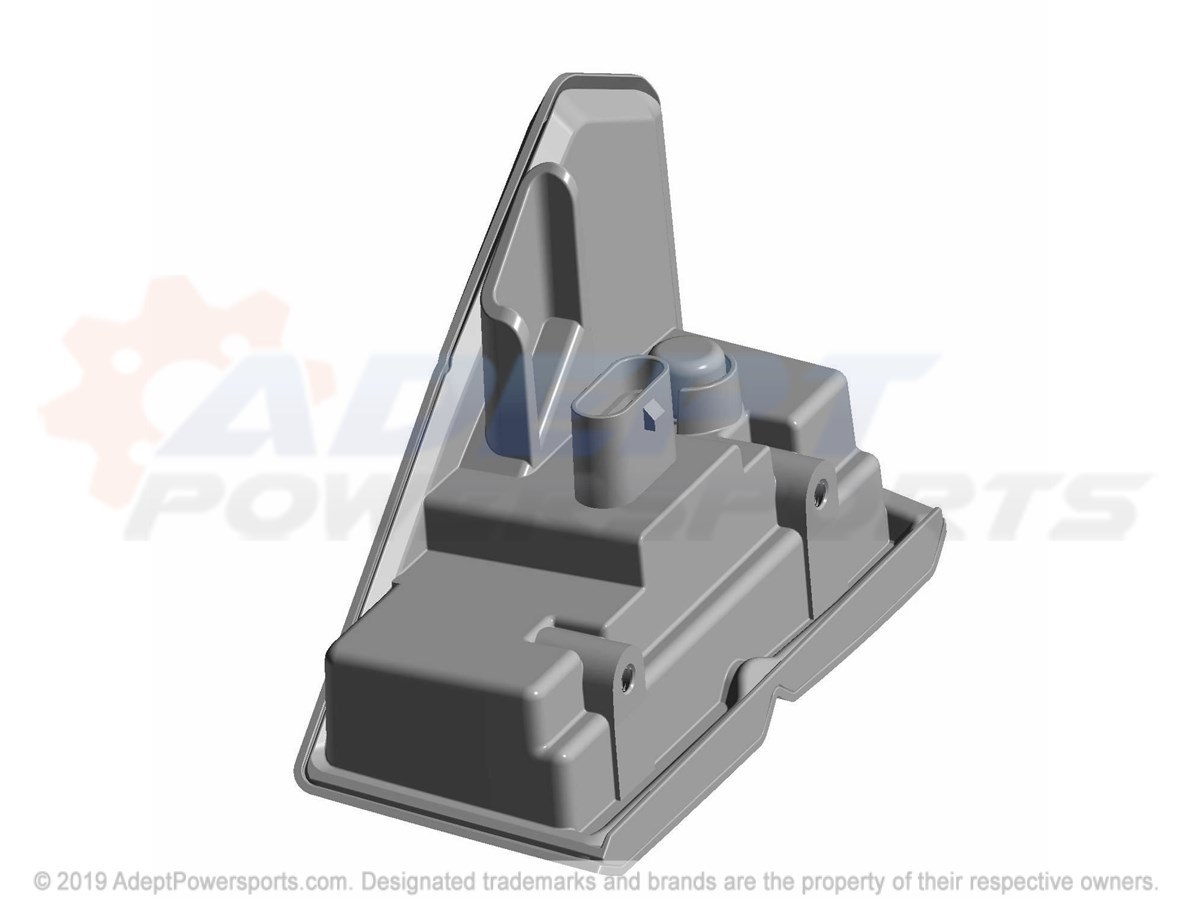

ASM-HEADLIGHT , ECE, RGR, RH

Part #: 2415402 Required per assembly: 1
Currently Not Available
3
Polaris 2413799 Asm-Tailight, Ece, Lh

ASM-TAILIGHT, ECE, LH

Part #: 2413799 Required per assembly: 1
Currently Not Available
4
Polaris 2413800 Asm-Tailight, Ece, Rh

ASM-TAILIGHT, ECE, RH

Part #: 2413800 Required per assembly: 1
Currently Not Available
5
Polaris 7519121 Screw

SCREW

Part #: 7519121 Required per assembly: 4
Currently Not Available
6
Polaris 7043816 Spring-Headlight

SPRING-HEADLIGHT

Part #: 7043816 Required per assembly: 2
Currently Not Available
7
Polaris 7512078 Screw

SCREW

Part #: 7512078 Required per assembly: 2
$1.99
$1.15
-
+
Add to cart
8
Polaris 7556064 Washer, Flat

WASHER, FLAT

Part #: 7556064 Required per assembly: 2
Currently Not Available
9

WASHER

Part #: 7556459 Required per assembly: 4
Currently Not Available
10
Polaris 7519045 Screw

SCREW

Part #: 7519045 Required per assembly: 4
Currently Not Available
