Hood And Front Facia replacement parts for 2021 Polaris Ranger 1000 FULL SIZE (R01)

OEM Parts Polaris 2021 Polaris Ranger 1000 FULL SIZE (R01) Hood And Front Facia

HOOD AND FRONT FACIA Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

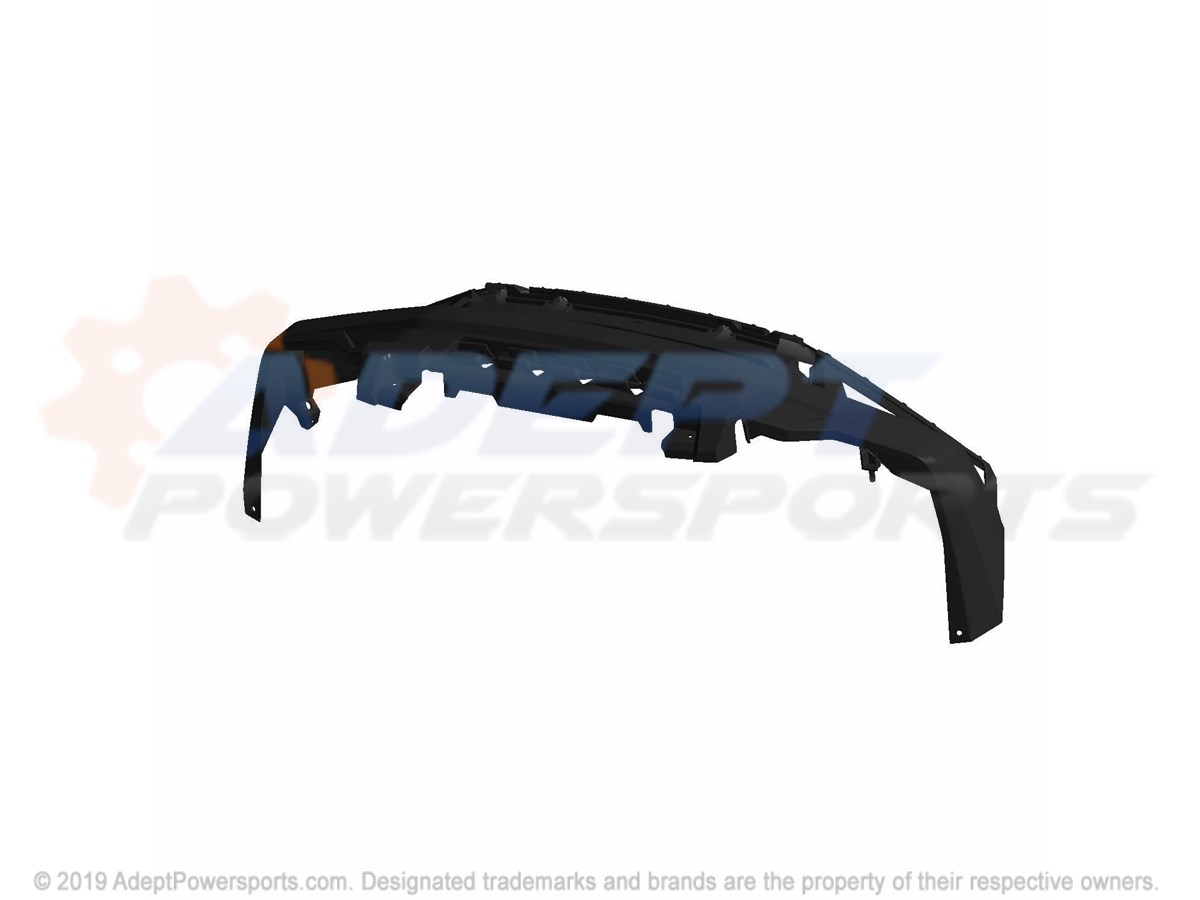

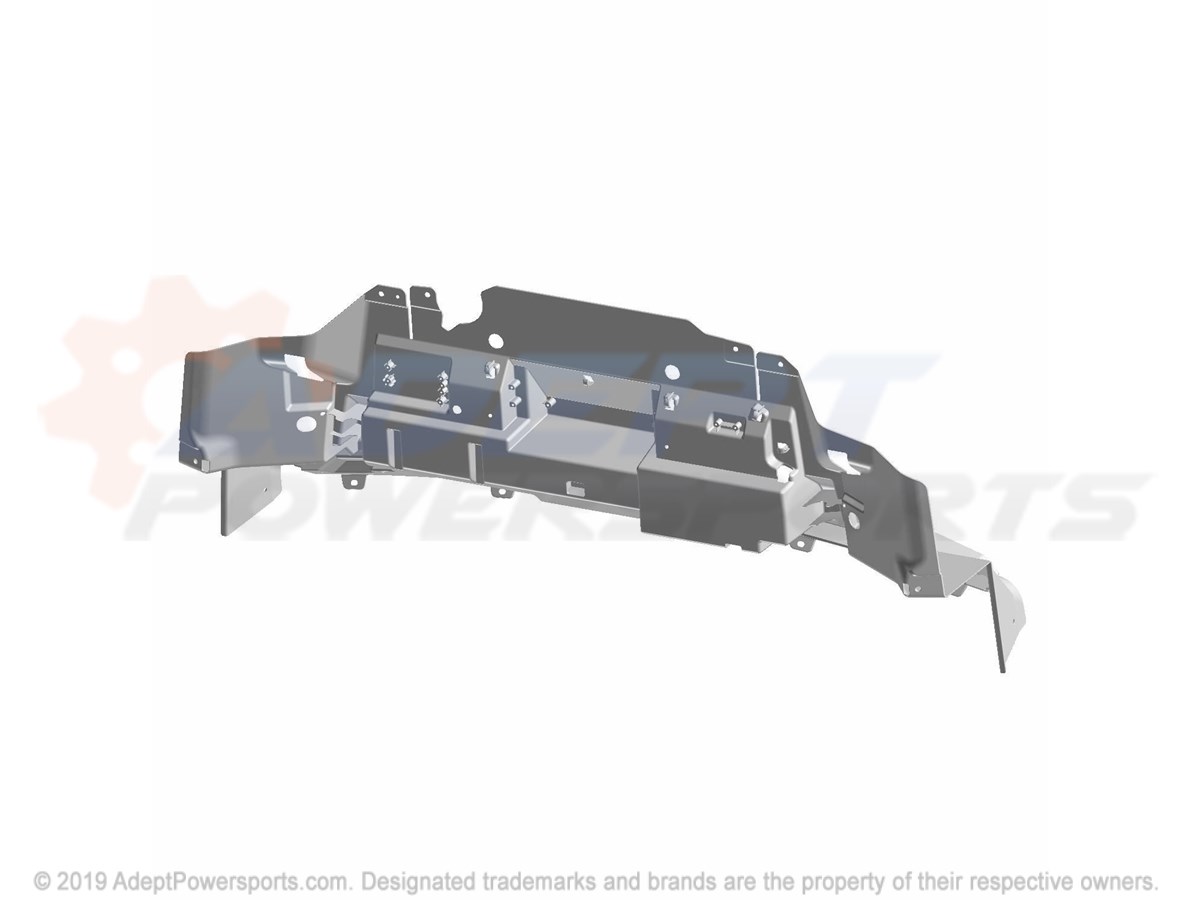

1	LINER-UNDER, HOOD, BLK Part #: 5455126-070 Required per assembly: 1 Currently Not Available

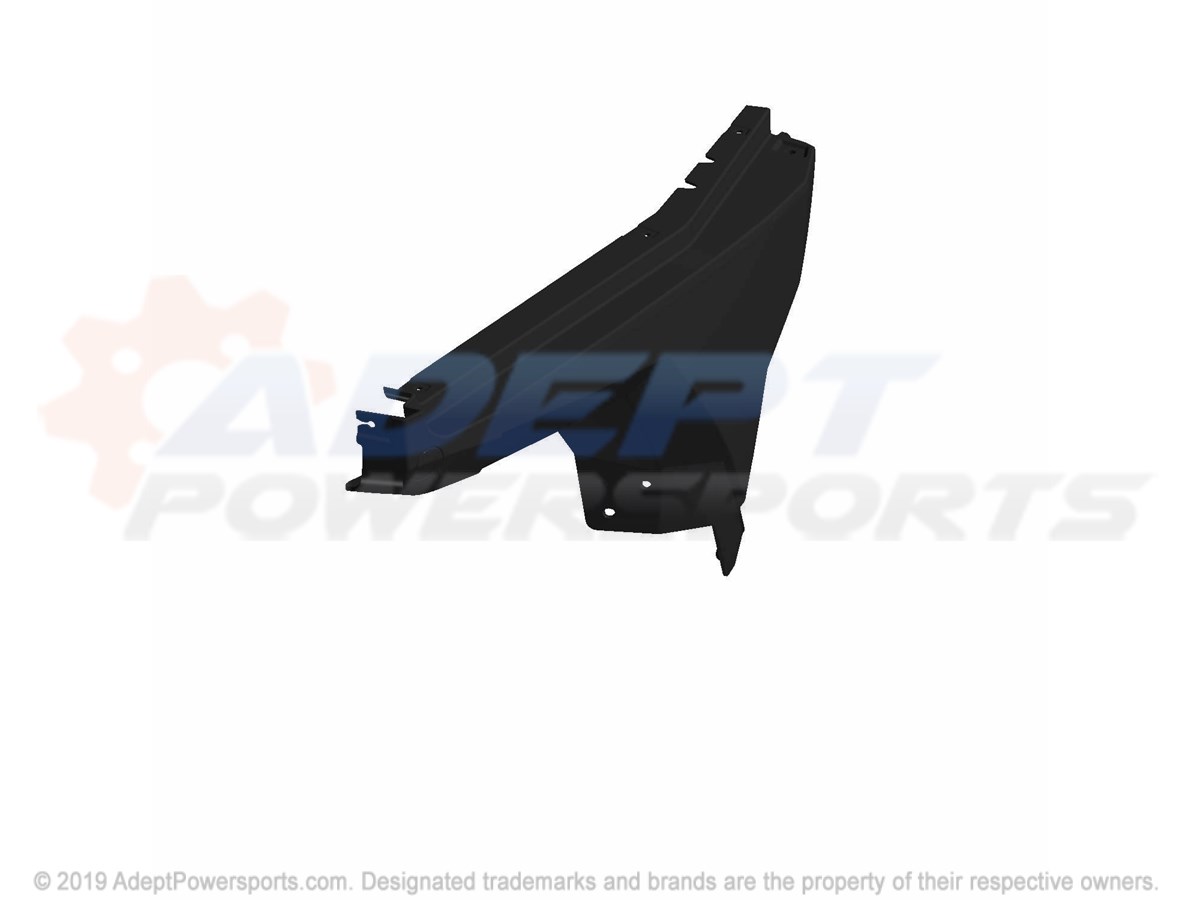

2	FENDER-FRONT, LH, STLTH, GRAY Part #: 5455965-804 Required per assembly: 1 Note: U99AG/BG Currently Not Available
2	FENDER-FRONT, LH, STEELY, BLUE Part #: 5455965-765 Required per assembly: 1 Note: U99AP/BP Currently Not Available

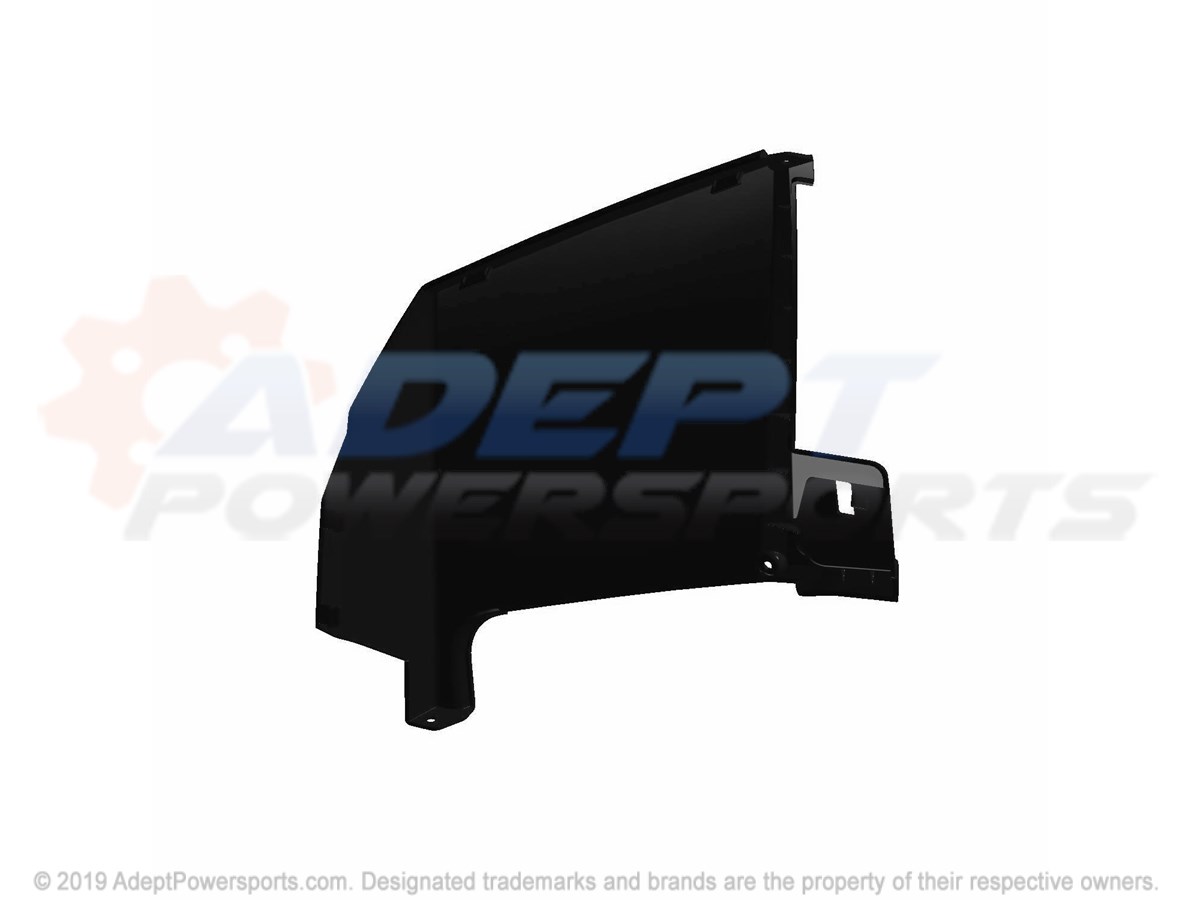

3	FENDER-FRONT, RH, STLTH, GRAY Part #: 5455966-804 Required per assembly: 1 Note: U99AG/BG Currently Not Available

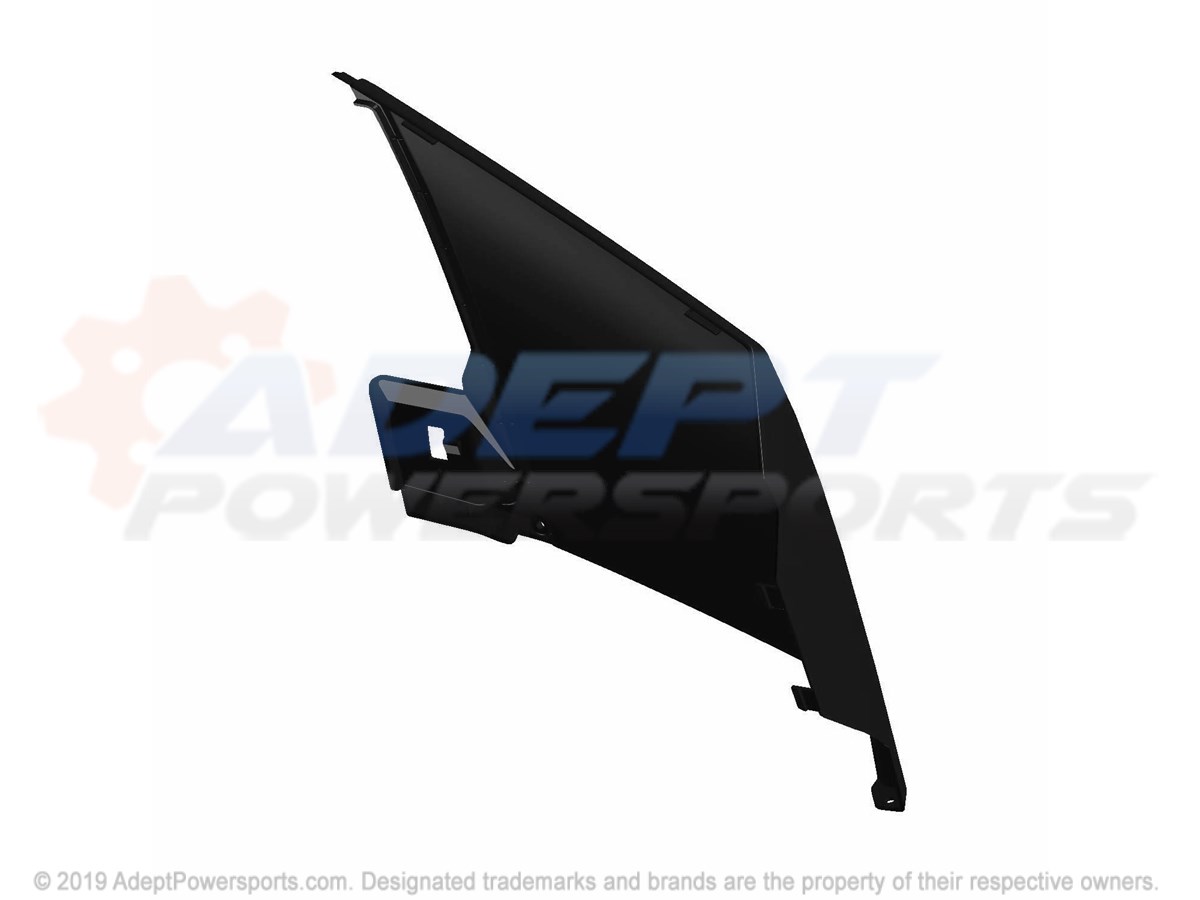

3	FENDER-FRONT, RH, STEELY, BLUE Part #: 5455966-765 Required per assembly: 1 Note: U99AP/BP Currently Not Available
6	FASCIA-FRONT, BLK Part #: 5455127-070 Required per assembly: 1 Currently Not Available

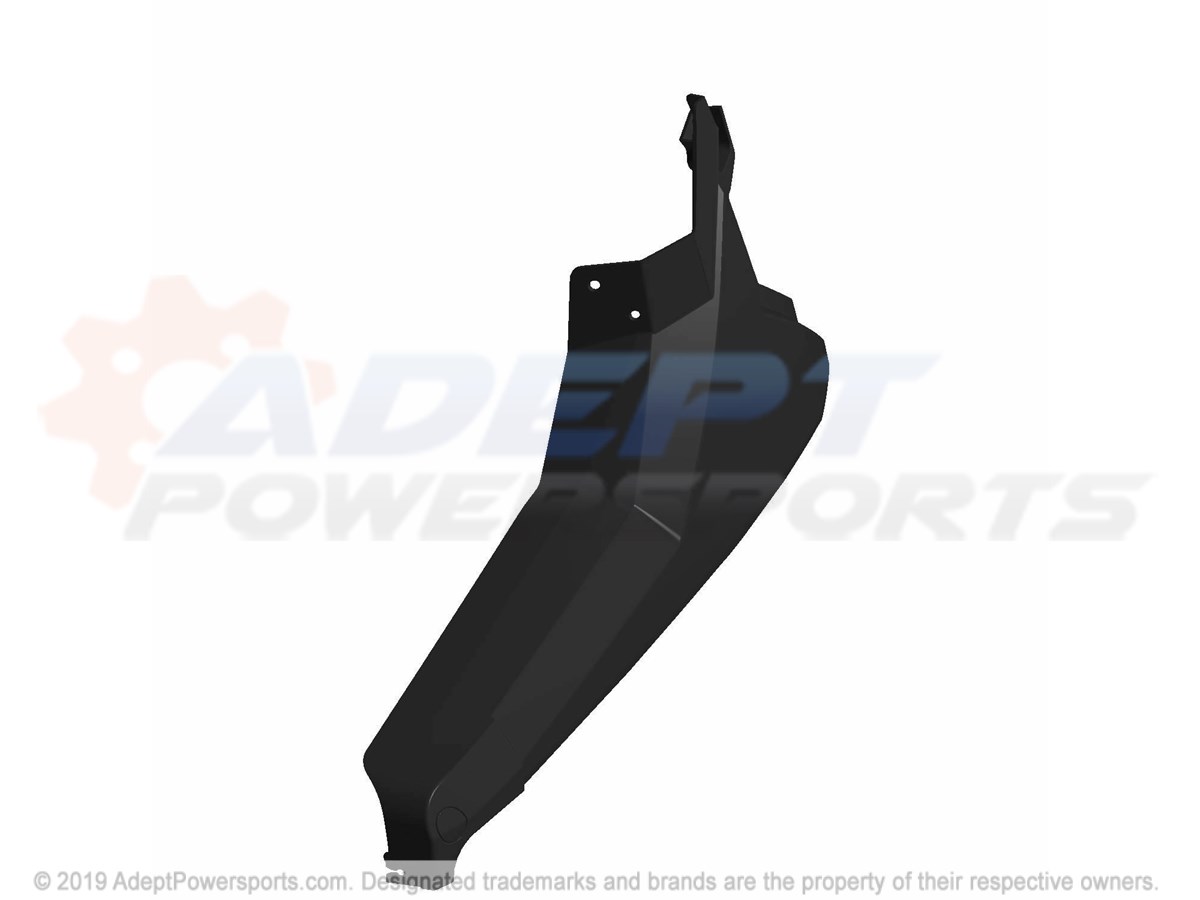

7	FENDER-FLARE, LH, BLK Part #: 5455131-070 Required per assembly: 1 Currently Not Available
8	FENDER-FLARE, RH, BLK Part #: 5455132-070 Required per assembly: 1 Currently Not Available

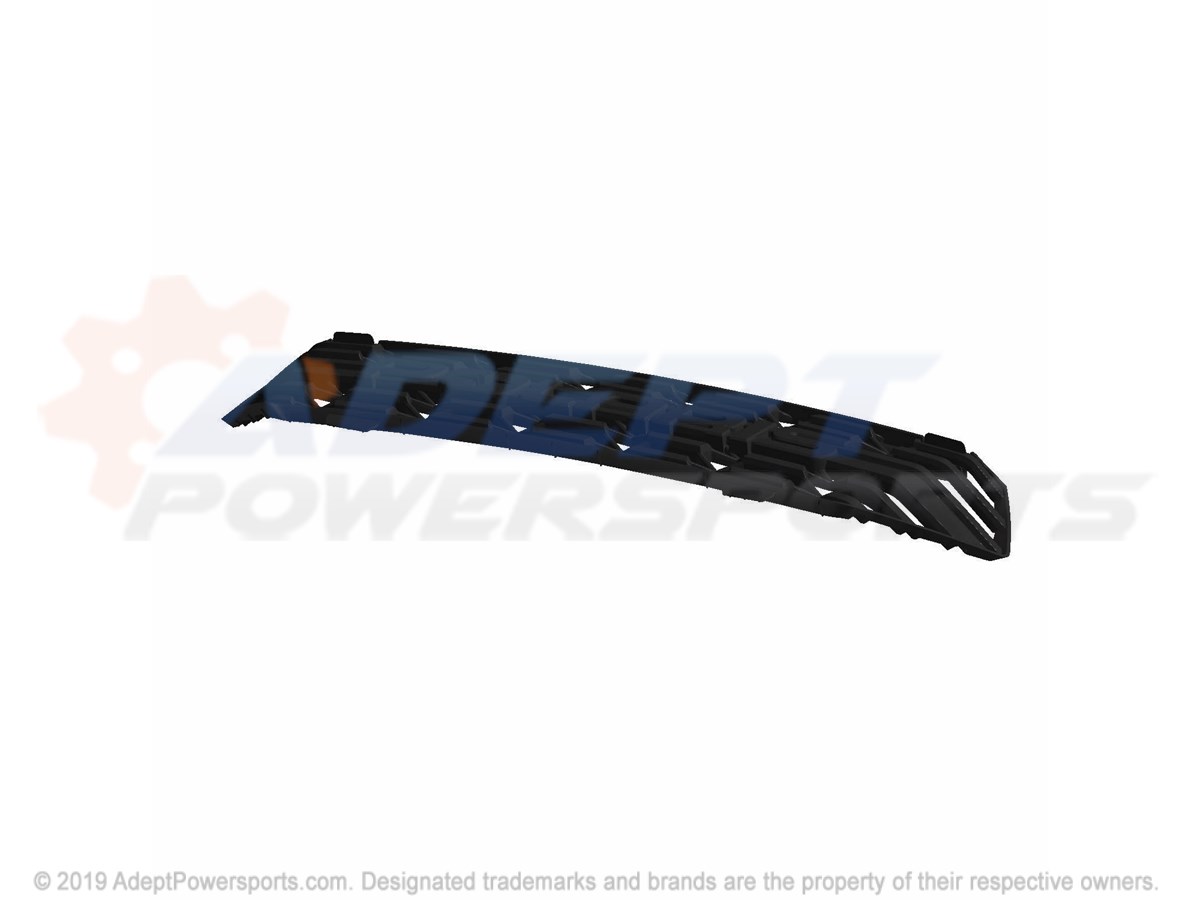

9	GRILL-FRONT, BLK Part #: 5455128-070 Required per assembly: 1 Currently Not Available

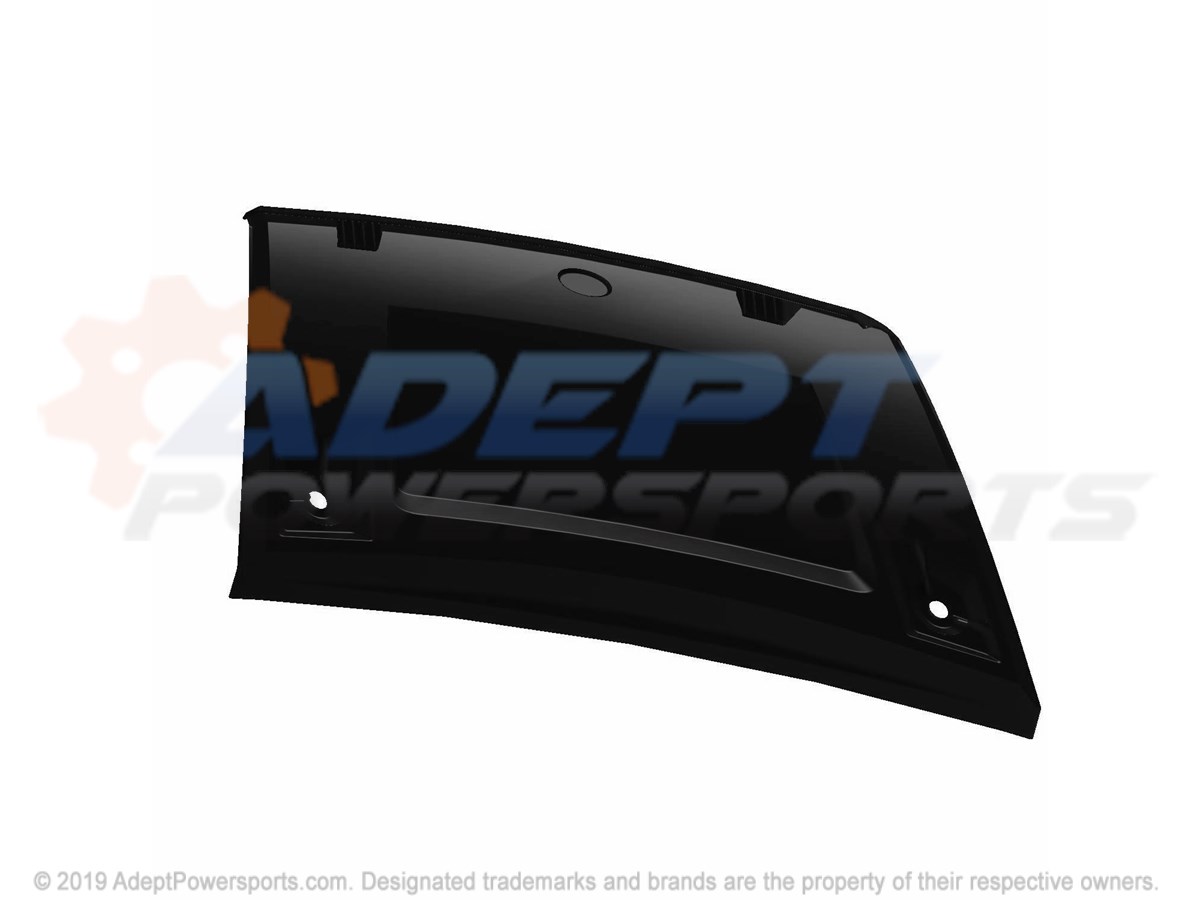

10	HOOD-BASIC, STLTH, GRAY Part #: 5455967-804 Required per assembly: 1 Note: U99AG/BG Currently Not Available
10	HOOD-BASIC, STEELY, BLUE Part #: 5455967-765 Required per assembly: 1 Note: U99AP/BP Currently Not Available
11	SCREW Part #: 7519045 Required per assembly: 8 Currently Not Available
12	GROMMET, LATCH Part #: 5413428 Required per assembly: 2 Currently Not Available
13	WASHER Part #: 7555919 Required per assembly: 2 Note: Washer Currently Not Available
14	LATCH-1/4 TURN Part #: 5451143 Required per assembly: 2 Currently Not Available
