Hood And Front Body Work replacement parts for 2021 Polaris RZR XP 4 Turbo (R02)

OEM Parts Polaris 2021 Polaris RZR XP 4 Turbo (R02) Hood And Front Body Work

HOOD AND FRONT BODY WORK Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

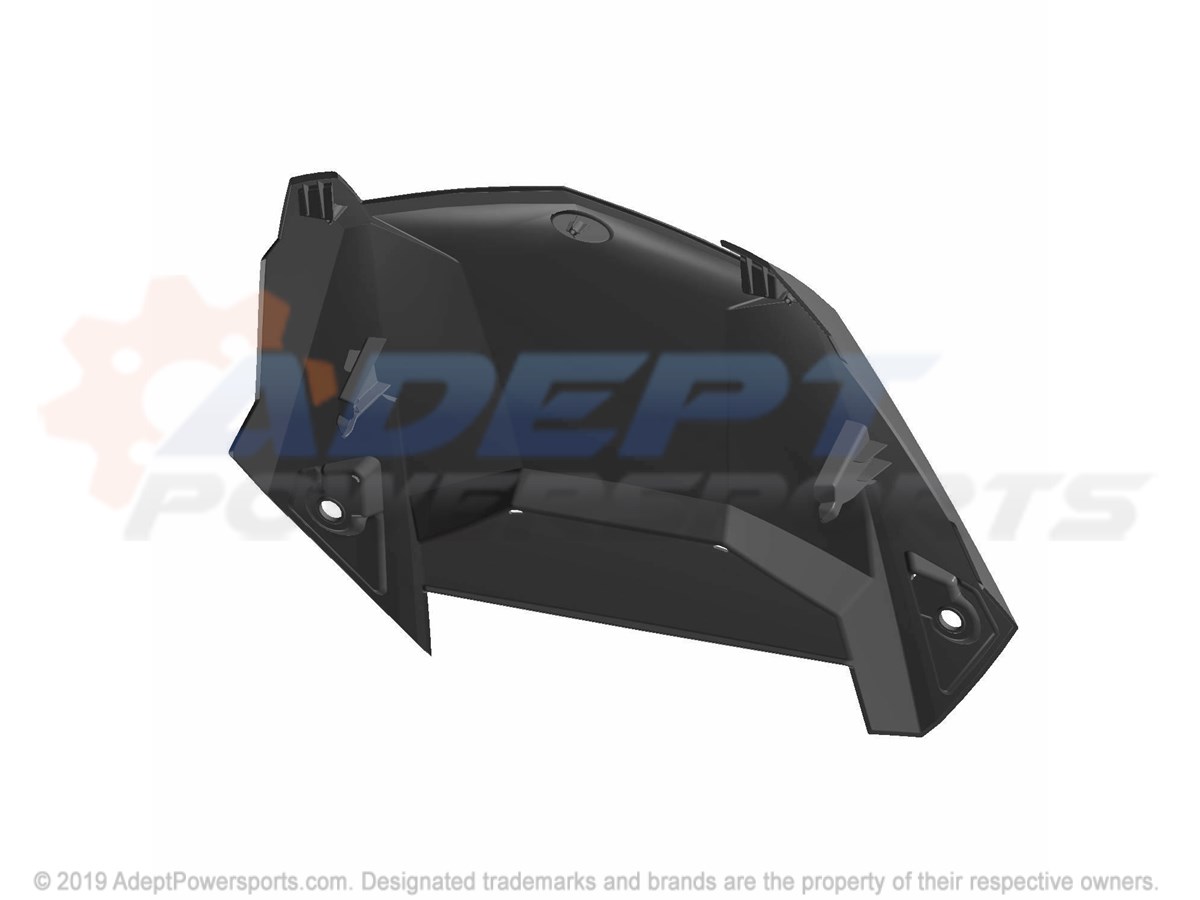

1	FENDER, FRONT, FLAIR, LH, BLACK Part #: 5439760-070 Required per assembly: 1 Currently Not Available

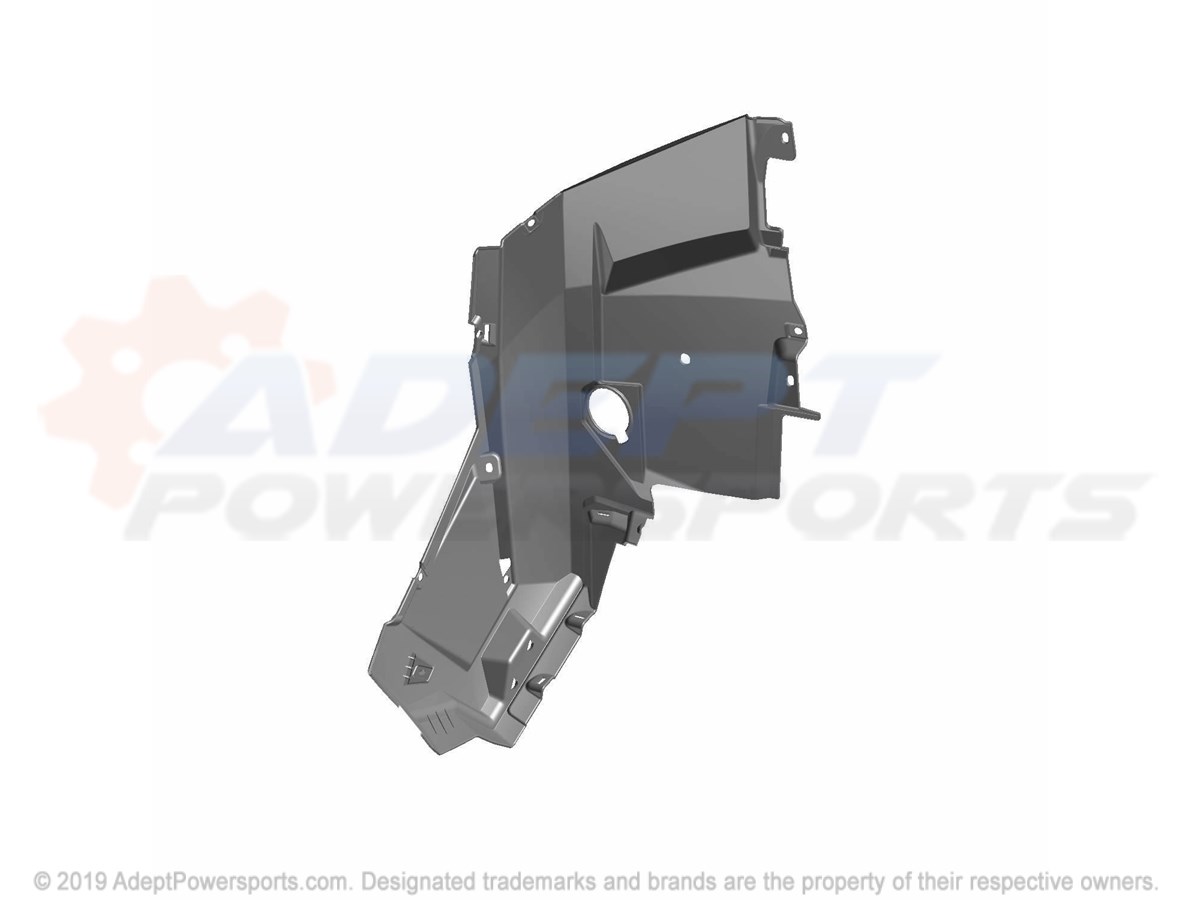

2	FENDER, FRONT, FLAIR, RH, BLACK Part #: 5439761-070 Required per assembly: 1 Currently Not Available

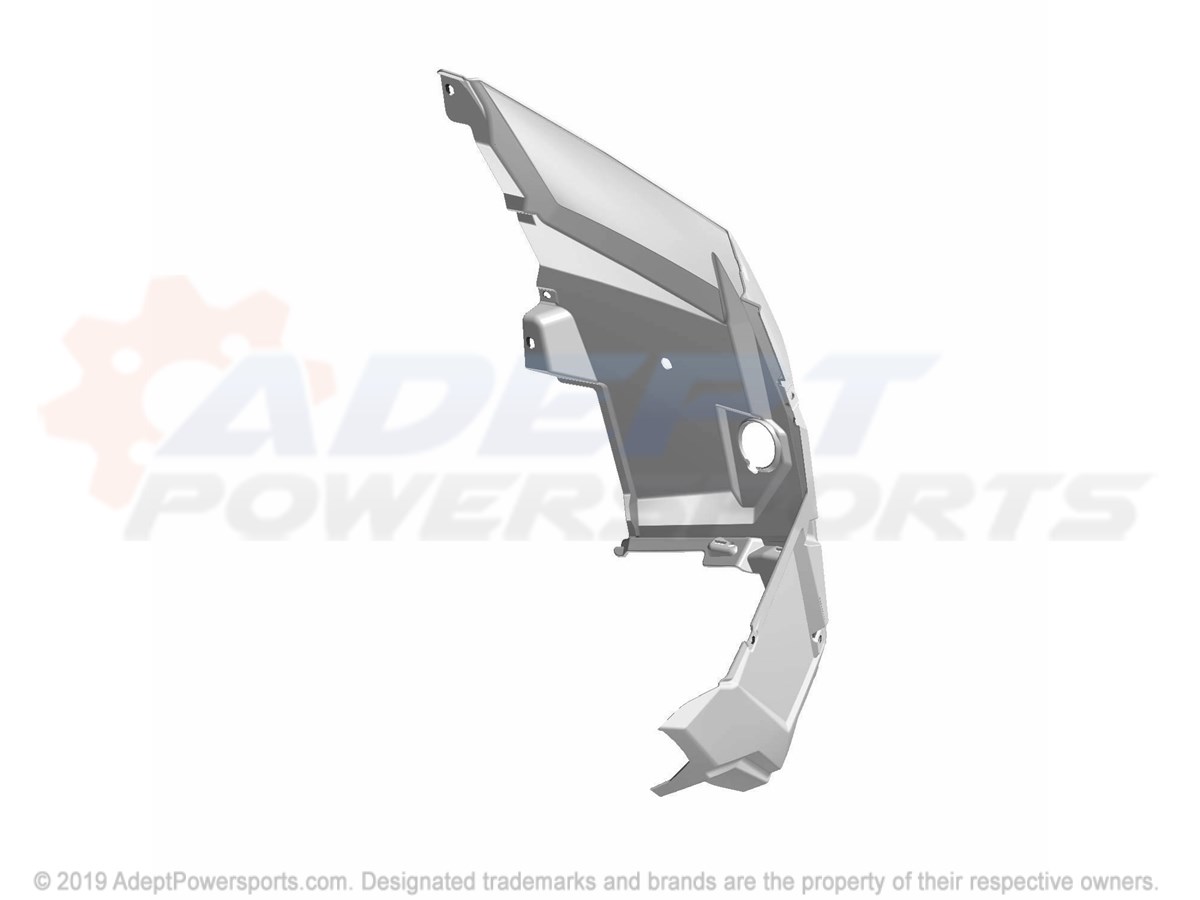

3	FENDER-FR, PNTD, LH, GH.GRAY Part #: 5454653-728 Required per assembly: 1 Note: AG Currently Not Available
3	FENDER-FR, PNTD, LH, SANDS, MET Part #: 5454653-555 Required per assembly: 1 Note: AX Currently Not Available
4	FENDER-FR, PNTD, RH, SANDS, MET Part #: 5454654-555 Required per assembly: 1 Note: AX Currently Not Available
4	FENDER-FR, PNTD, RH.GH.GRAY Part #: 5454654-728 Required per assembly: 1 Note: AG Currently Not Available
5	HOOD-CENTER, PNT, SNDS, MET Part #: 5454429-555 Required per assembly: 1 Note: AX Currently Not Available
5	HOOD-CENTER, PNT, PERF.RED Part #: 5454429-799 Required per assembly: 1 Note: AG Currently Not Available
6	LATCH-1/4 TURN Part #: 5451143 Required per assembly: 2 Currently Not Available
7	GROMMET, LATCH Part #: 5413428 Required per assembly: 2 Currently Not Available
8	WASHER Part #: 7555919 Required per assembly: 2 Note: Washer Currently Not Available
9	GROMMET-4MM Part #: 5437772 Required per assembly: 2 Currently Not Available
10	SCREW Part #: 7519650 Required per assembly: 6 Currently Not Available
11	SCREW Part #: 7519840 Required per assembly: 2 Currently Not Available
12	SCREW Part #: 7519841 Required per assembly: 2 Currently Not Available
13	NUT, U-TYPE Part #: 7547674 Required per assembly: 14 ~~$2.99~~ $1.73 - + Add to cart
14	GRILLE-CENTER, HOOD, BLK Part #: 5454297-070 Required per assembly: 1 Currently Not Available
15	SCREW Part #: 7518238 Required per assembly: 3 ~~$3.79~~ $1.73 - + Add to cart
16	SCR-TXTH-M6X1.0X20 T40 ZPB Part #: 7519112 Required per assembly: 2 Currently Not Available
