OEM Parts Polaris 2021 Polaris RZR XP 4 1000 High Lifter (R02) Front Shock Mounting

2021 Polaris RZR XP 4 1000 High Lifter (R02) Z21N4M99AG - Front Shock Mounting

FRONT SHOCK MOUNTING Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
2
Polaris 7556153 Washer, Flat

WASHER, FLAT

Part #: 7556153 Required per assembly: 4 Note: Washer
$3.99
$2.30
-
+
Add to cart
3
Polaris 5450644 Spacer, Spring

SPACER, SPRING

Part #: 5450644 Required per assembly: 2
Currently Not Available
4

RETAINER-SPRING, CAST

Part #: 5634606 Required per assembly: 2
Currently Not Available
5
Polaris 7044897 Shock-Frt, Rzrxp4, Hc, Piggybk, Lh

SHOCK-FRT, RZRXP4, HC, PIGGYBK, LH

Part #: 7044897 Required per assembly: 1 Note: M99AL
Currently Not Available
5
Polaris 7044898 Shock-Frt, Rzrxp4, Hc, Piggybk, Rh

SHOCK-FRT, RZRXP4, HC, PIGGYBK, RH

Part #: 7044898 Required per assembly: 1 Note: M99AL
Currently Not Available
6

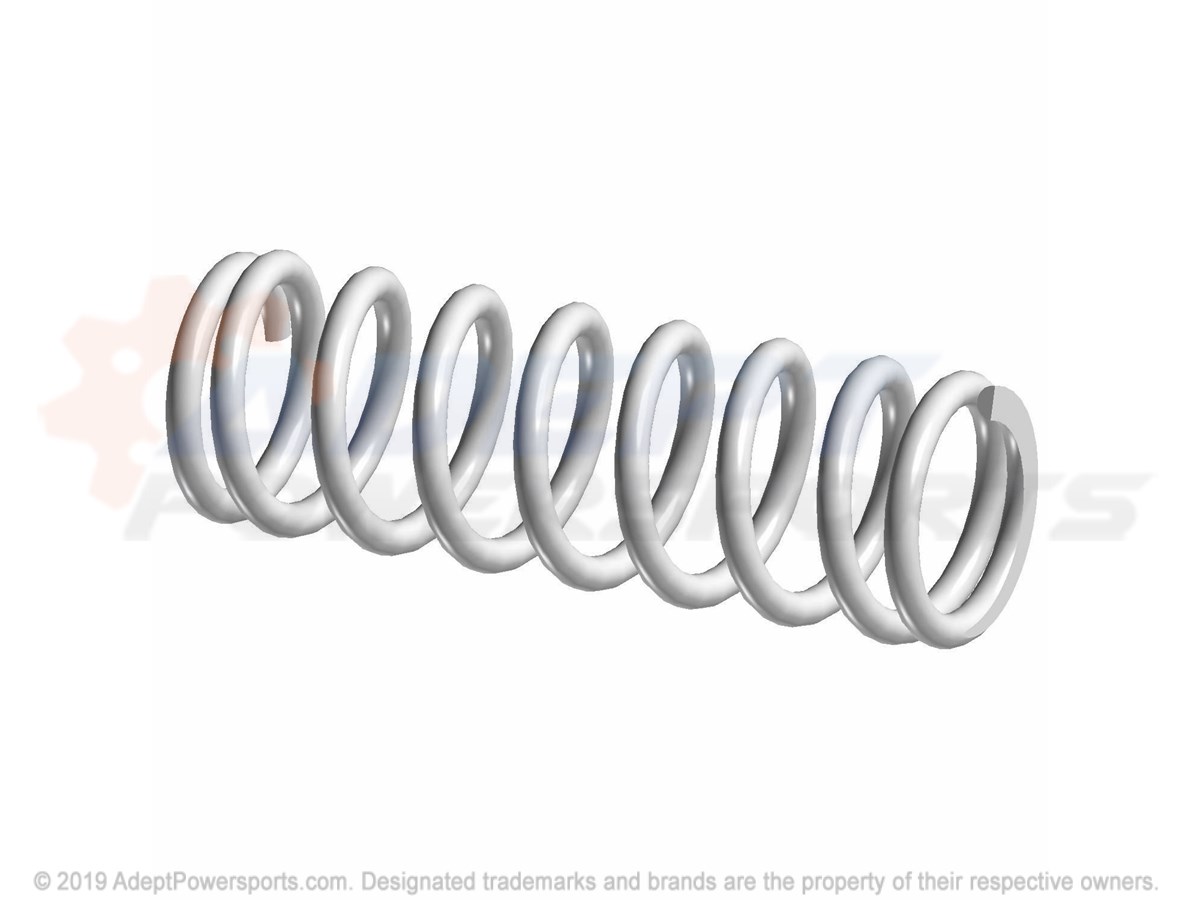

Polaris 7044600-707 Spr-325, 13.25Fl, 3.04-3.04Id, Pm

SPR-325, 13.25FL, 3.04-3.04ID, PM

Part #: 7044600-707 Required per assembly: 2
Currently Not Available
7
Polaris 7044286-707 Spg-350#, 3.38Fl, 3.04-3.04Id, Pm

SPG-350#, 3.38FL, 3.04-3.04ID, PM

Part #: 7044286-707 Required per assembly: 2
Currently Not Available
8
Polaris 7519285 Scr-Hxfl-M10x1.25X55 10.9 Zod

SCR-HXFL-M10X1.25X55 10.9 ZOD

Part #: 7519285 Required per assembly: 4
Currently Not Available
