OEM Parts Polaris 2021 Polaris RZR XP Turbo (R02) Front Shock Mounting

2021 Polaris RZR XP Turbo (R02) Z21NAE92AG/BG/AX/BX - Front Shock Mounting

FRONT SHOCK MOUNTING Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 7044855 Shock-Front, Rzrxp, Piggybk, Lh

SHOCK-FRONT, RZRXP, PIGGYBK, LH

Part #: 7044855 Required per assembly: 1
Currently Not Available
1
Polaris 7044856 Shock-Front, Rzrxp, Piggybk, Rh

SHOCK-FRONT, RZRXP, PIGGYBK, RH

Part #: 7044856 Required per assembly: 1
Currently Not Available
2

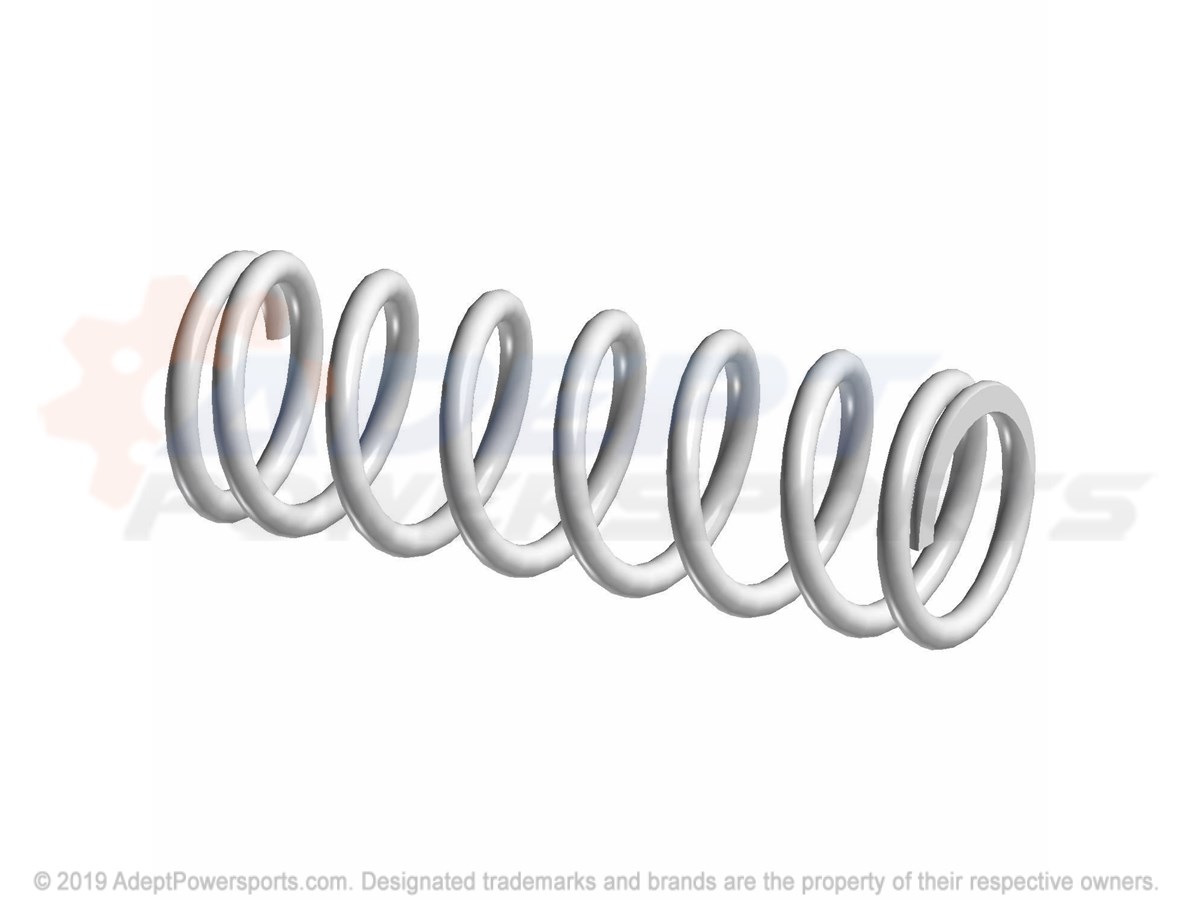

Polaris 7044490-589 Sp-260, 12.75Fl, 3.04-3.04, Id, Om

SP-260, 12.75FL, 3.04-3.04, ID, OM

Part #: 7044490-589 Required per assembly: 2 Note: AX
Currently Not Available
2
Polaris 7044490-799 Sp-260, 12.75Fl, 3.04-3.04Id, Red

SP-260, 12.75FL, 3.04-3.04ID, RED

Part #: 7044490-799 Required per assembly: 2 Note: AG
Currently Not Available
3

SP-300-PROG, 3.75FL, 3.04ID, OR, M

Part #: 7044425-589 Required per assembly: 2 Note: AX
Currently Not Available
3

SPR-300-PROG, 3.75FL, 3.04ID, RED

Part #: 7044425-799 Required per assembly: 2 Note: AG
Currently Not Available
4
Polaris 5450644 Spacer, Spring

SPACER, SPRING

Part #: 5450644 Required per assembly: 2
Currently Not Available
5

RETAINER-SPRING, CAST

Part #: 5634606 Required per assembly: 2
Currently Not Available
6
Polaris 7519285 Scr-Hxfl-M10x1.25X55 10.9 Zod

SCR-HXFL-M10X1.25X55 10.9 ZOD

Part #: 7519285 Required per assembly: 4
Currently Not Available
7
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
8
Polaris 7556153 Washer, Flat

WASHER, FLAT

Part #: 7556153 Required per assembly: 4 Note: Washer
$3.99
$2.30
-
+
Add to cart
