Hood And Front Body Work replacement parts for 2021 Polaris RZR XP 1000 Sport/Premium (R01)

OEM Parts Polaris 2021 Polaris RZR XP 1000 Sport/Premium (R01) Hood And Front Body Work

HOOD AND FRONT BODY WORK Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FENDER, FRONT, FLAIR, LH, BLACK Part #: 5439760-070 Required per assembly: 1 Currently Not Available
2	FENDER, FRONT, FLAIR, RH, BLACK Part #: 5439761-070 Required per assembly: 1 Currently Not Available

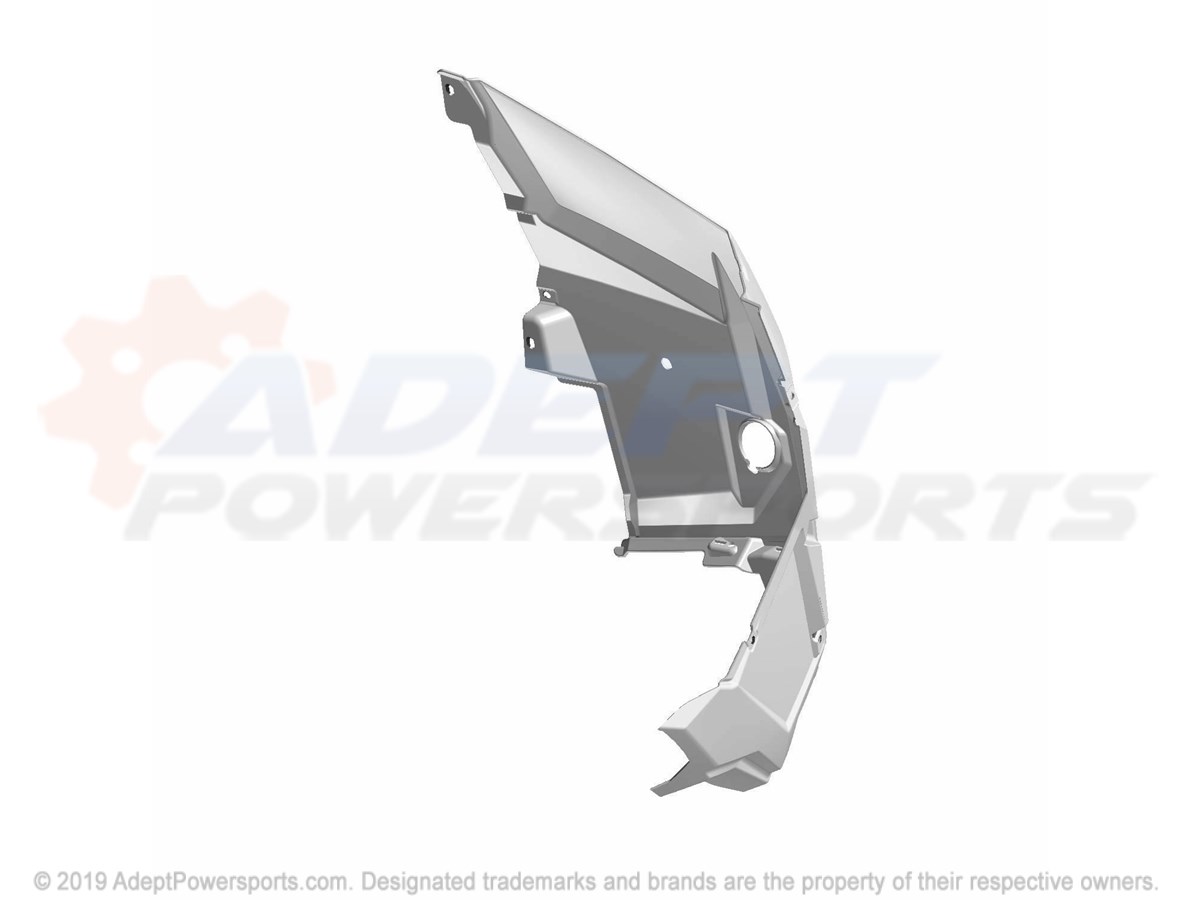

3	FENDER-FR, PNTD, LH, WHITE Part #: 5454653-599 Required per assembly: 1 Note: E99BC Currently Not Available
3	FENDER-FR, PNTD, LH, C.BLK Part #: 5454653-266 Required per assembly: 1 Note: E99BK Currently Not Available
3	FENDER-FR, PNTD, LH, MT, NAVY, BLUE Part #: 5454653-726 Required per assembly: 1 Note: K99BP Currently Not Available
3	FENDER-FR, PNTD, LH, ST, GRY, NM Part #: 5454653-804 Required per assembly: 1 Note: K99BG Currently Not Available
4	FENDER, FR, PNT, RC, RH, ST.GR, NM Part #: 5456373-804 Required per assembly: 1 Note: K99BG Currently Not Available
4	FENDER-FR, PNTD, RH, C.BLK Part #: 5454654-266 Required per assembly: 1 Note: E99BK Currently Not Available
4	FENDER, FR, PNTD, RC, RH, M, NVY, BLU Part #: 5456373-726 Required per assembly: 1 Note: K99BP Currently Not Available
4	FENDER-FR, PNTD, RH, WHITE Part #: 5454654-599 Required per assembly: 1 Note: E99BC Currently Not Available
5	HOOD-CENTER, TXT, BLK Part #: 5455450-070 Required per assembly: 1 Currently Not Available
6	LATCH-1/4 TURN Part #: 5451143 Required per assembly: 2 Currently Not Available
7	GROMMET, LATCH Part #: 5413428 Required per assembly: 2 Currently Not Available
8	WASHER Part #: 7555919 Required per assembly: 2 Note: Washer Currently Not Available
9	GROMMET-4MM Part #: 5437772 Required per assembly: 2 Currently Not Available
10	SCREW Part #: 7519650 Required per assembly: 8 Currently Not Available
11	SCREW Part #: 7519840 Required per assembly: 2 Currently Not Available
12	SCREW Part #: 7519841 Required per assembly: 2 Currently Not Available
13	NUT, U-TYPE Part #: 7547674 Required per assembly: 14 ~~$2.99~~ $1.73 - + Add to cart
