Rear Caliper replacement parts for 2021 Polaris RZR Turbo S4/Velocity/Lifted LE (R02)

OEM Parts Polaris 2021 Polaris RZR Turbo S4/Velocity/Lifted LE (R02) Rear Caliper

REAR CALIPER Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-BRK-CAL-RL-DB, WT Part #: 1913219 Required per assembly: 1 Note: INCL. ALL Currently Not Available
1	ASM-BRK-CAL-RR-DB, WT Part #: 1913220 Required per assembly: 1 Note: INCL. ALL Currently Not Available
2	ASM-CAL/MNT, REAR, TURBO, S, MP Part #: 1913221 Required per assembly: 1 Currently Not Available
3	PISTON, BRAKE, GROOVED Part #: 5138774 Required per assembly: 1 Currently Not Available
4	PISTON, BRAKE, GROOVED Part #: 5138832 Required per assembly: 1 ~~$19.99~~ $11.50 - + Add to cart
5	RING, SQUARE, MOLDED, (.099) Part #: 5410779 Required per assembly: 1 Currently Not Available
6	RING, SQUARE, MOLDED, (.134) Part #: 5410780 Required per assembly: 1 ~~$9.99~~ $5.75 - + Add to cart
7	BOOT, BUSHING Part #: 5412505 Required per assembly: 1 Currently Not Available
8	BOOT, PIN, SEAL Part #: 5412506 Required per assembly: 1 Currently Not Available
9	SCREW, BLEEDER Part #: 7081343 Required per assembly: 1 Currently Not Available
10	SCREW, SOCKET, SET Part #: 7518863 Required per assembly: 1 Currently Not Available

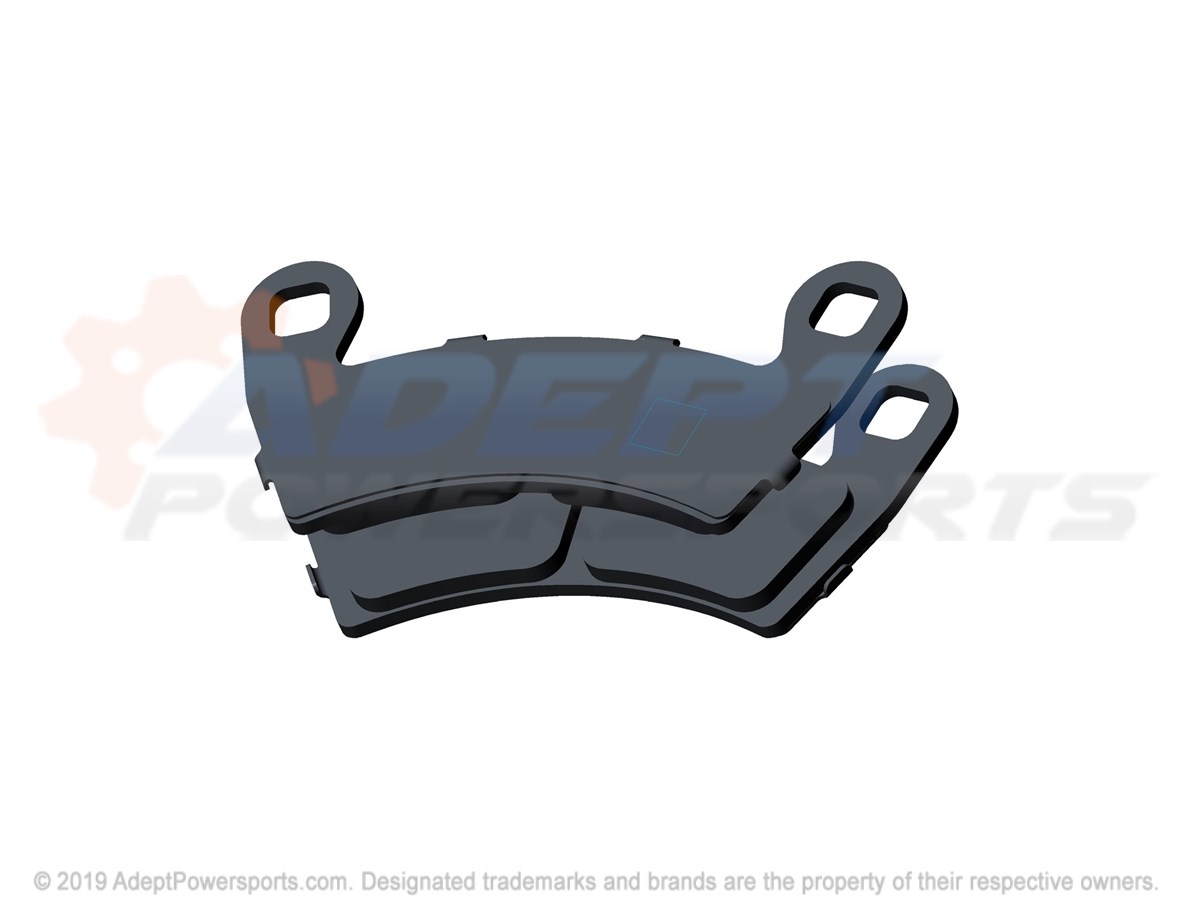

11	K-ASM, PAD, BRAKE, DB, 1.375 Part #: 2208078 Required per assembly: 1 Note: INCL. 2 PADS Currently Not Available
12	SEAL, CALIPER, INNER Part #: 5412907 Required per assembly: 2 Currently Not Available
