2021 Suzuki
LT Z50 QuadSport
Frame

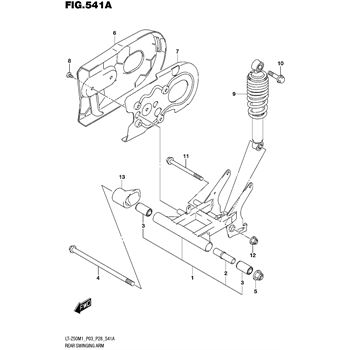

2021 Suzuki LT-Z50 QuadSport - Frame
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location
Part Description
1
FRAME (BLACK)
Part #: 41100-43G10-019
Required per assembly: 1
$1,822.02
-
+
Add to cart
2
PLATE, MOUNTING, LH
Part #: 41921-43G00
Required per assembly: 1
Not Available
3
BOLT
Part #: 01550-0816B
Required per assembly: 2
$4.43
-
+
Add to cart
4
HOLDER, BATTERY
Part #: 41541-43G00
Required per assembly: 1
$38.97
$34.03
-
+
Add to cart
5
BOLT
Part #: 09113-06001
Required per assembly: 1
$4.43
-
+
Add to cart
