Transmission replacement parts for 2021 Yamaha MT-10

OEM Parts Yamaha 2021 Yamaha MT 10 Transmission

TRANSMISSION Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	AXLE, MAIN, (15T) Part #: 2CR-17411-00-00 Required per assembly: 1 $177.99 $158.55 - + Add to cart
2	HOUSING, BEARING, 1 Part #: 2CR-15163-00-00 Required per assembly: 1 $166.99 $145.09 - + Add to cart
3	BEARING Part #: 93306-20652-00 Required per assembly: 1 $91.98 $75.80 - + Add to cart
4	COLLAR Part #: 90387-28003-00 Required per assembly: 1 $32.99 $23.48 - + Add to cart
5	GEAR, 5TH, PINION, (21T) Part #: 2CR-17151-00-00 Required per assembly: 1 $126.98 $109.47 - + Add to cart
6	WASHER Part #: 90209-25011-00 Required per assembly: 2 $9.49 $7.09 - + Add to cart
7	CIRCLIP Part #: 93440-28184-00 Required per assembly: 2 $5.49 $3.64 - + Add to cart
8	GEAR, 3RD, PINION, (19/19T) Part #: 2CR-17131-01-00 Required per assembly: 1 $400.99 $361.22 - + Add to cart
9	COLLAR Part #: 90387-25023-00 Required per assembly: 1 $45.99 $35.40 - + Add to cart
10	GEAR, 6TH, PINION, (24T) Part #: 2CR-17161-00-00 Required per assembly: 1 $134.99 $114.46 - + Add to cart
11	GEAR, 2ND, PINION, (17T) Part #: B3L-17121-00-00 Required per assembly: 1 $176.99 $129.71 - + Add to cart
12	WASHER, CLAW Part #: 90214-25004-00 Required per assembly: 1 $10.49 $7.11 - + Add to cart
13	WASHER, CLAW Part #: 90214-25003-00 Required per assembly: 1 $10.49 $7.12 - + Add to cart
14	BEARING Part #: 93306-27214-00 Required per assembly: 1 $91.98 $76.52 - + Add to cart
15	SCREW Part #: 90149-06081-00 Required per assembly: 3 $9.49 $6.05 - + Add to cart
16	DRIVE AXLE ASSEMBLY Part #: 2CR-17402-00-00 Required per assembly: 1 $269.99 $253.02 - + Add to cart
17	BEARING Part #: 93305-20605-00 Required per assembly: 1 $156.99 $135.63 - + Add to cart
18	COLLAR Part #: 90387-30012-00 Required per assembly: 1 $32.99 $25.19 - + Add to cart
19	CIRCLIP, OUTER Part #: 93440-62032-00 Required per assembly: 1 $12.49 $10.05 - + Add to cart
20	COLLAR Part #: 90387-31003-00 Required per assembly: 1 $23.98 $17.68 - + Add to cart
21	GEAR, 2ND, WHEEL, (37T) Part #: BW8-17221-00-00 Required per assembly: 1 $195.99 $169.96 - + Add to cart
22	WASHER Part #: 90209-28008-00 Required per assembly: 3 $9.49 $6.11 - + Add to cart
23	CIRCLIP Part #: 93440-31187-00 Required per assembly: 3 $9.49 $6.12 - + Add to cart
24	GEAR, 6TH, WHEEL, (30T) Part #: 2CR-17261-00-00 Required per assembly: 1 $184.99 $159.86 - + Add to cart
25	COLLAR Part #: 90387-28004-00 Required per assembly: 2 $36.99 $27.84 - + Add to cart
26	GEAR, 4TH, WHEEL, (30T) Part #: 2CR-17241-01-00 Required per assembly: 1 $187.99 $161.41 - + Add to cart
27	WASHER, CLAW Part #: 90214-29002-00 Required per assembly: 1 $9.49 $7.20 - + Add to cart
28	WASHER, CLAW Part #: 90214-28002-00 Required per assembly: 1 $9.49 $6.99 - + Add to cart
29	GEAR, 3RD, WHEEL, (35T) Part #: B67-17231-01-00 Required per assembly: 1 $223.99 $193.25 - + Add to cart
30	GEAR, 5TH, WHEEL, (29T) Part #: 2CR-17251-00-00 Required per assembly: 1 $184.99 $160.08 - + Add to cart
31	COLLAR Part #: 90387-25008-00 Required per assembly: 1 $33.99 $24.03 - + Add to cart
32	GEAR, 1ST, WHEEL, (39T) Part #: B60-17211-00-00 Required per assembly: 1 $163.99 $147.27 - + Add to cart

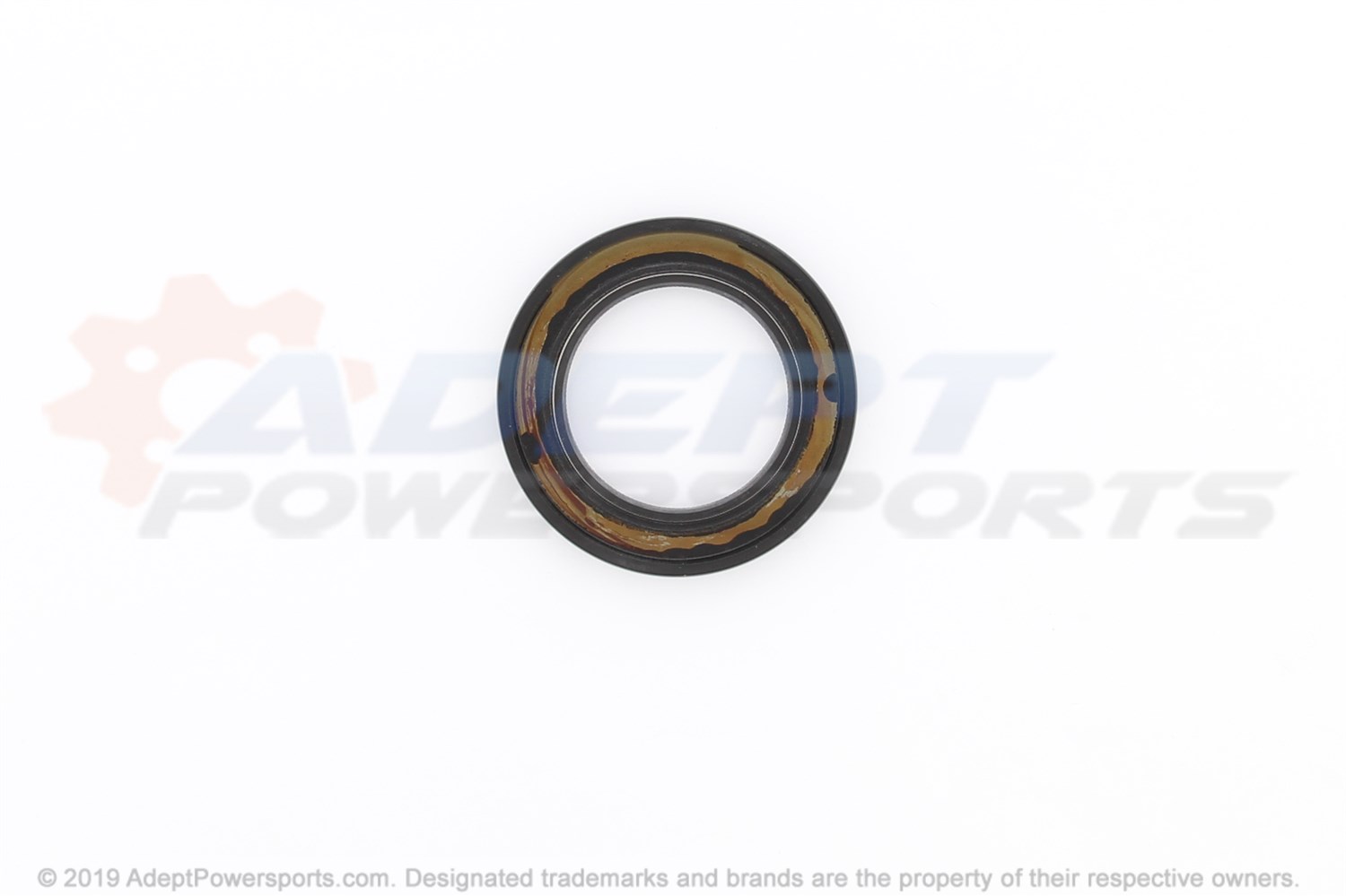

33	OIL, SEAL, SD-TYPE Part #: 93102-40330-00 Required per assembly: 1 $29.98 $21.08 - + Add to cart
34	WASHER, PLATE Part #: 90201-257H0-00 Required per assembly: 1 $10.49 $7.88 - + Add to cart
35	BEARING Part #: 93306-205A2-00 Required per assembly: 1 $75.98 $62.90 - + Add to cart
36	CIRCLIP, OUTER Part #: 93440-52009-00 Required per assembly: 1 $12.49 $9.57 - + Add to cart
