Deck Hatch 1 replacement parts for 2021 Yamaha 190 FSH Deluxe

OEM Parts Yamaha 2021 Yamaha 190 FSH Deluxe Deck Hatch 1

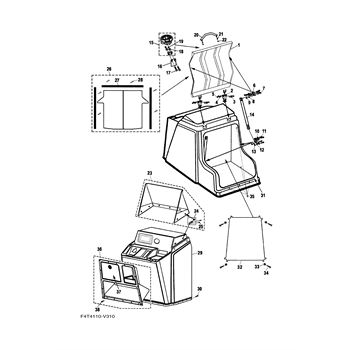

DECK HATCH 1 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	LID, LOCKER, BOW Part #: F4T-U476A-00-00 Required per assembly: 1 $695.20 $662.00 - + Add to cart
2	HINGE 5 Part #: F4A-U2826-00-00 Required per assembly: 2 $93.82 $74.07 - + Add to cart
3	SCREW, TAPPING Part #: 90162-10S10-00 Required per assembly: 8 $6.11 $1.44 - + Add to cart
5	CUSHION, RUBBER Part #: F1T-U5741-00-00 Required per assembly: 4 $4.07 $1.51 - + Add to cart
6	SCREW, #8, X, 3/4" Part #: 90167-08S12-00 Required per assembly: 4 $6.11 $1.29 - + Add to cart
7	STOPPER, CABLE Part #: F3M-U1468-00-00 Required per assembly: 1 $23.44 $18.13 - + Add to cart
8	SCREW, BRACKET Part #: 90169-10SA4-00 Required per assembly: 2 $6.11 $1.36 - + Add to cart
9	FLOOR HATCH COMP. 3 Part #: F4T-U5108-00-00 Required per assembly: 1 $1,724.72 $1,617.93 - + Add to cart
10	HINGE 5 Part #: F4A-U2826-10-00 Required per assembly: 2 $94.84 $77.10 - + Add to cart
11	SCREW, TAPPING Part #: 90162-10S10-00 Required per assembly: 12 $6.11 $1.44 - + Add to cart
13	SEAL Part #: F4T-U3262-00-00 Required per assembly: 1 $40.78 $29.45 - + Add to cart
14	HATCH, BOW Part #: F4T-U512B-00-00 Required per assembly: 1 $587.50 $571.30 - + Add to cart
15	HINGE 5 Part #: F4A-U2826-10-00 Required per assembly: 2 $94.84 $77.10 - + Add to cart
16	SCREW, TAPPING Part #: 90162-10S10-00 Required per assembly: 12 $6.11 $1.44 - + Add to cart
17	LATCH Part #: F3M-U5532-00-00 Required per assembly: 1 $23.44 $18.13 - + Add to cart
18	CATCH Part #: F3M-U4848-00-00 Required per assembly: 1 $11.21 $5.59 - + Add to cart
19	SCREW, TRUSS, HEAD, TAPPING Part #: 90169-10SA6-00 Required per assembly: 3 $5.08 $0.83 - + Add to cart
20	SEAL Part #: F3R-U3262-00-00 Required per assembly: 1 $13.25 $10.57 - + Add to cart
21	DOOR ASSEMBLY Part #: F4T-U5720-00-00 Required per assembly: 1 $172.37 $150.03 - + Add to cart
22	BOX Part #: F4T-U4278-10-00 Required per assembly: 1 $395.75 $375.65 - + Add to cart
23	SCREW, TAPPING Part #: 90167-08SA8-00 Required per assembly: 28 $6.11 $1.13 - + Add to cart
24	BRACKET Part #: F1T-U4949-01-00 Required per assembly: 2 $21.41 $16.62 - + Add to cart
25	SCREW, #10, X, 1-1/4 Part #: 90161-10S20-00 Required per assembly: 6 $6.11 $1.36 - + Add to cart
26	LOCK ASSEMBLY Part #: F3H-U5540-10-00 Required per assembly: 1 $43.85 $33.23 - + Add to cart
27	LEVER, HATCH, LOCK Part #: F3H-U2844-10-00 Required per assembly: 1 $5.59 $4.31 - + Add to cart
28	LOCK ASSEMBLY Part #: F3H-U5540-00-00 Required per assembly: 1 $43.85 $33.23 - + Add to cart
29	LEVER, HATCH, LOCK Part #: F3H-U2844-00-00 Required per assembly: 1 $10.18 $4.97 - + Add to cart
