Crankcase Cover 1 replacement parts for 2021 Yamaha Raptor 700R California

OEM Parts Yamaha 2021 Yamaha Raptor 700R California Crankcase Cover 1

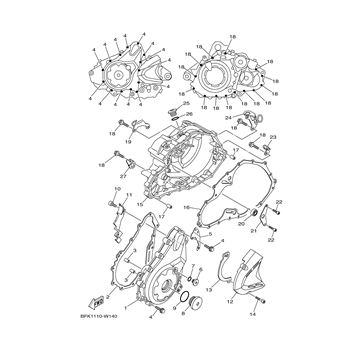

CRANKCASE COVER 1 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	COVER, CRANKCASE, 1 Part #: 1S3-15411-00-00 Required per assembly: 1 ~~$259.99~~ $223.97 - + Add to cart
2	GASKET, CRANKCASE, COVER, 1 Part #: 1S3-15451-00-00 Required per assembly: 1 ~~$19.98~~ $16.54 - + Add to cart
3	PIN, DOWEL, (3VD) Part #: 99530-10114-00 Required per assembly: 2 ~~$2.64~~ $2.24 - + Add to cart
4	BOLT, FLANGE Part #: 95022-06030-00 Required per assembly: 14 ~~$1.80~~ $1.38 - + Add to cart
5	STAY 2 Part #: BFK-14494-00-00 Required per assembly: 1 ~~$8.49~~ $6.53 - + Add to cart
6	PLUG, STRAIGHT, SCREW Part #: 90340-14016-00 Required per assembly: 1 ~~$19.48~~ $14.98 - + Add to cart
7	O-RING (2H9) Part #: 93210-14369-00 Required per assembly: 1 ~~$8.49~~ $5.70 - + Add to cart
8	PLUG, STRAIGHT, SCREW Part #: 90340-36004-00 Required per assembly: 1 ~~$20.98~~ $15.72 - + Add to cart
9	O-RING Part #: 93210-35804-00 Required per assembly: 1 ~~$0.60~~ $0.48 - + Add to cart
10	BOLT, HEXAGON, SOCKET, HEAD Part #: 91312-05014-00 Required per assembly: 1 ~~$3.20~~ $2.69 - + Add to cart
11	PLATE Part #: 1S3-15113-00-00 Required per assembly: 1 Not Available
12	COVER, CRANKCASE, 2 Part #: 1S3-15421-00-00 Required per assembly: 1 ~~$25.98~~ $19.66 - + Add to cart
13	GUIDE, CHAIN Part #: 1S3-17466-00-00 Required per assembly: 1 ~~$21.98~~ $15.72 - + Add to cart
14	BOLT, SOCKET Part #: 91317-06025-00 Required per assembly: 2 ~~$2.64~~ $2.01 - + Add to cart
15	COVER, CRANKCASE, 3 Part #: 1S3-15431-00-00 Required per assembly: 1 ~~$387.99~~ $357.07 - + Add to cart
16	GASKET, CRANKCASE, COVER, 3 Part #: 1S3-15462-00-00 Required per assembly: 1 ~~$21.98~~ $17.68 - + Add to cart
17	PIN, DOWEL Part #: 99530-10120-00 Required per assembly: 2 ~~$3.35~~ $2.51 - + Add to cart
18	BOLT, FLANGE Part #: 95022-06030-00 Required per assembly: 14 ~~$1.80~~ $1.38 - + Add to cart
19	HOLDER, CLUTCH, CABLE Part #: 1S3-15441-00-00 Required per assembly: 1 ~~$22.98~~ $18.60 - + Add to cart
20	OIL SEAL Part #: 93101-14164-00 Required per assembly: 1 ~~$12.49~~ $9.53 - + Add to cart
21	HOLDER Part #: 1S3-15118-00-00 Required per assembly: 1 ~~$7.49~~ $6.31 - + Add to cart
22	BOLT, HEXAGON, SOCKET, HEAD Part #: 91317-06012-00 Required per assembly: 2 ~~$9.49~~ $6.05 - + Add to cart
23	CLAMP Part #: 90461-10011-00 Required per assembly: 1 ~~$13.49~~ $10.46 - + Add to cart
24	HOLDER Part #: 1S3-1546C-00-00 Required per assembly: 1 ~~$31.98~~ $22.41 - + Add to cart
25	PLUG Part #: 4H7-15189-00-00 Required per assembly: 1 ~~$33.99~~ $25.37 - + Add to cart
26	O-RING Part #: 93210-20802-00 Required per assembly: 1 $0.95 - + Add to cart
27	CLAMP Part #: 90462-08046-00 Required per assembly: 1 ~~$8.49~~ $5.10 - + Add to cart
