Rear Brake Panel replacement parts for 2022 Honda TRX520FE2

OEM Parts Honda 2022 Honda TRX520FE2 Rear Brake Panel

REAR BRAKE PANEL Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

F 2210
001	SHOE, SET, BRAKE Part #: 06430-HN0-A20 Required per assembly: 1 $53.08 $52.32 - + Add to cart
001	SHOE, SET, BRAKE Part #: 06430-HN0-A30 Required per assembly: 1 $67.36 $56.17 - + Add to cart
002	COVER, ASSEMBLY, DRUM Part #: 40520-HP0-A00 Required per assembly: 1 $57.69 - + Add to cart
003	RING, DAMPER Part #: 42624-HN5-M00 Required per assembly: 1 $3.70 - + Add to cart
004	PANEL, SET, RR., BRAKE Part #: 43010-HR3-A20 Required per assembly: 1 $130.11 $103.76 - + Add to cart
005	WASHER, ANCHOR, PIN Part #: 43102-319-000 Required per assembly: 1 $7.46 $6.53 - + Add to cart
006	TUBE (3.5X1005) Part #: 43132-HR3-A20 Required per assembly: 1 $4.28 - + Add to cart
007	DUST, SEAL, BRAKE, CAM Part #: 43134-300-000 Required per assembly: 1 $3.17 $2.94 - + Add to cart
008	CAM, RR., BRAKE Part #: 43141-HA7-671 Required per assembly: 1 $31.08 $25.91 - + Add to cart
008	CAM, RR., BRAKE Part #: 43141-HA7-670 Required per assembly: 1 $41.17 $34.32 - + Add to cart
009	INDICATOR, BRAKE Part #: 43145-HN5-M00 Required per assembly: 1 $2.01 $1.86 - + Add to cart
010	ARM, RR., BRAKE Part #: 43410-HN2-000 Required per assembly: 1 $26.06 $21.72 - + Add to cart
011	SPRING, RR. Part #: 43415-HM7-000 Required per assembly: 1 $8.64 $7.49 - + Add to cart
012	NUT, BRAKE, ADJUSTING Part #: 43459-HM5-A10 Required per assembly: 2 $10.27 $9.68 - + Add to cart
013	DRUM, RR., BRAKE Part #: 43620-HR3-A20 Required per assembly: 1 $95.93 $76.50 - + Add to cart

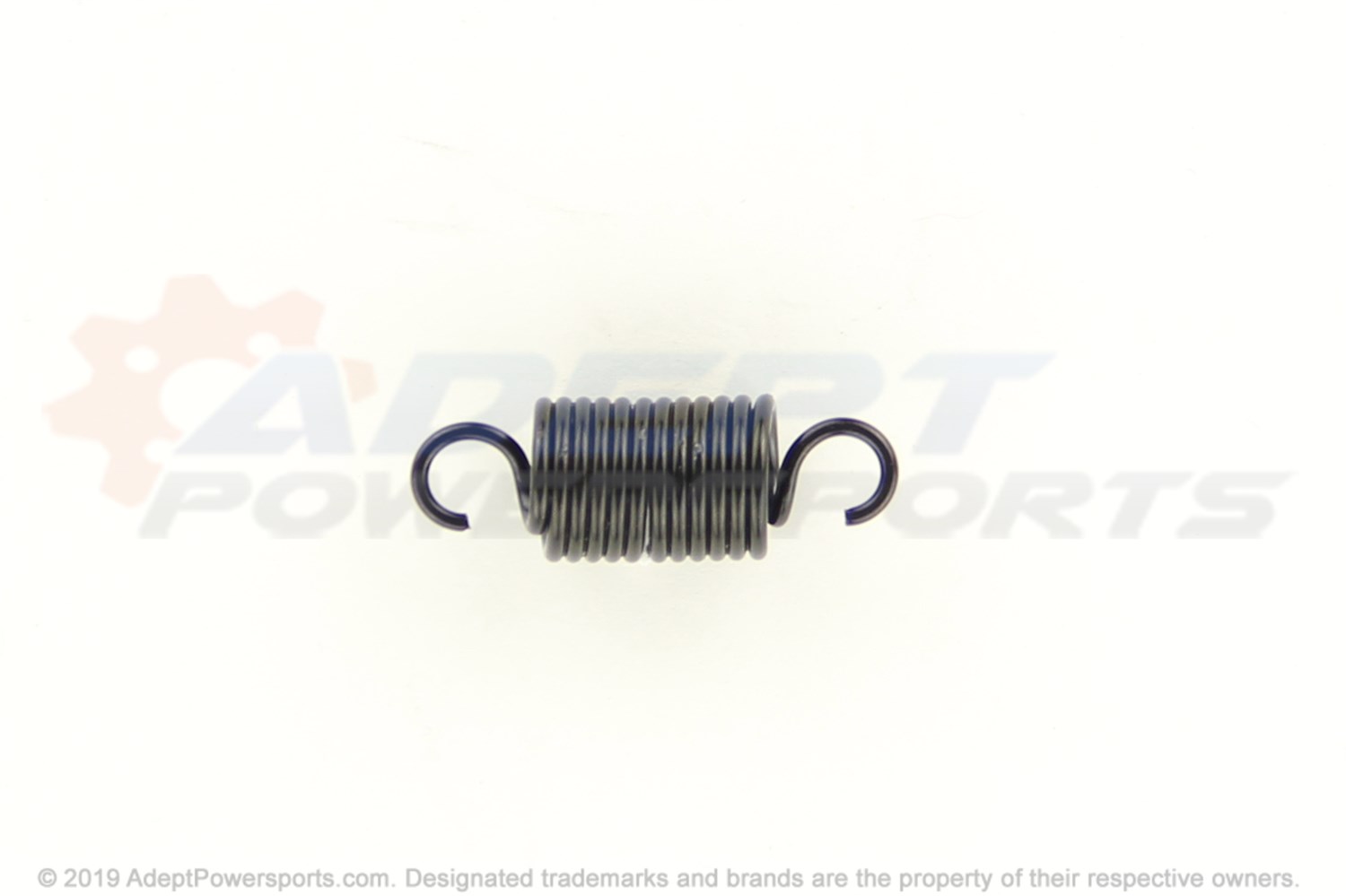

014	SPRING, FR. Part #: 45133-329-000 Required per assembly: 2 $3.91 $3.55 - + Add to cart
015	BOLT, SEALING, (8MM) Part #: 90109-371-000 Required per assembly: 1 $3.73 $3.39 - + Add to cart
016	BOLT, STUD, (10X25) Part #: 90151-HA7-670 Required per assembly: 4 $7.47 $6.55 - + Add to cart
017	GASKET (8MM) Part #: 90471-580-000 Required per assembly: 1 $3.96 - + Add to cart
018	BEARING (63/28U) Part #: 91002-KY0-981 Required per assembly: 1 $44.46 $37.08 - + Add to cart
019	DUST SEAL (17X23X3) Part #: 91206-968-003 Required per assembly: 1 $5.06 $4.60 - + Add to cart
020	DUST SEAL (44X58X8) Part #: 91251-HF7-003 Required per assembly: 1 $16.18 $13.09 - + Add to cart
021	DUST SEAL (41X76X19) Part #: 91253-HM7-003 Required per assembly: 1 $20.80 $17.34 - + Add to cart
022	O-RING (75X3.2) Part #: 91320-HM7-702 Required per assembly: 1 $3.98 $3.62 - + Add to cart
023	O-RING (199X3.1) Part #: 91355-HN2-003 Required per assembly: 1 $15.32 $12.77 - + Add to cart
024	NUT, FLANGE, (8MM) Part #: 94050-08000 Required per assembly: 1 Note: Sold in multiples of 5 only $2.01 $1.96 - + Add to cart
025	PIN, SPLIT, (2.5X30) Part #: 94201-25300 Required per assembly: 2 $2.07 $1.91 - + Add to cart
026	CIRCLIP (68MM) Part #: 94520-68000 Required per assembly: 1 $6.31 $6.08 - + Add to cart
027	CLIP, TUBE, (C6.5) Part #: 95002-35000 Required per assembly: 1 $1.80 $1.67 - + Add to cart
028	SPRING, A, BRAKE, ROD Part #: 95014-73100 Required per assembly: 2 $2.32 $2.15 - + Add to cart
029	JOINT, B, BRAKE, ARM Part #: 95015-32001 Required per assembly: 2 $1.98 $1.83 - + Add to cart
030	BOLT, FLANGE, (8X45) Part #: 95701-08045-00 Required per assembly: 1 $2.48 $2.29 - + Add to cart
031	BOLT, FLANGE, (6X16) Part #: 96001-06016-00 Required per assembly: 6 $2.09 $1.93 - + Add to cart
