OEM Parts Kawasaki 2022 Kawasaki KX450SR Front Brake

2022 Kawasaki KX450SR KX450-LNFNN - Front Brake

Front Brake Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
120

BOLT-SOCKET, 8X40

Part #: 120CA0840 Required per assembly: 2
$2.89
$2.08
-
+
Add to cart
14079

HOLDER, ASSEMBLY, FR, CALIPE

Part #: 14079-0586 Required per assembly: 1
$160.14
$157.69
-
+
Add to cart
32085

STOPPER, PAD

Part #: 32085-1361 Required per assembly: 1
$7.09
-
+
Add to cart
41080

DISC, FR, 270MM, WAVE

Part #: 41080-0692 Required per assembly: 1
$340.36
$337.13
-
+
Add to cart
43048

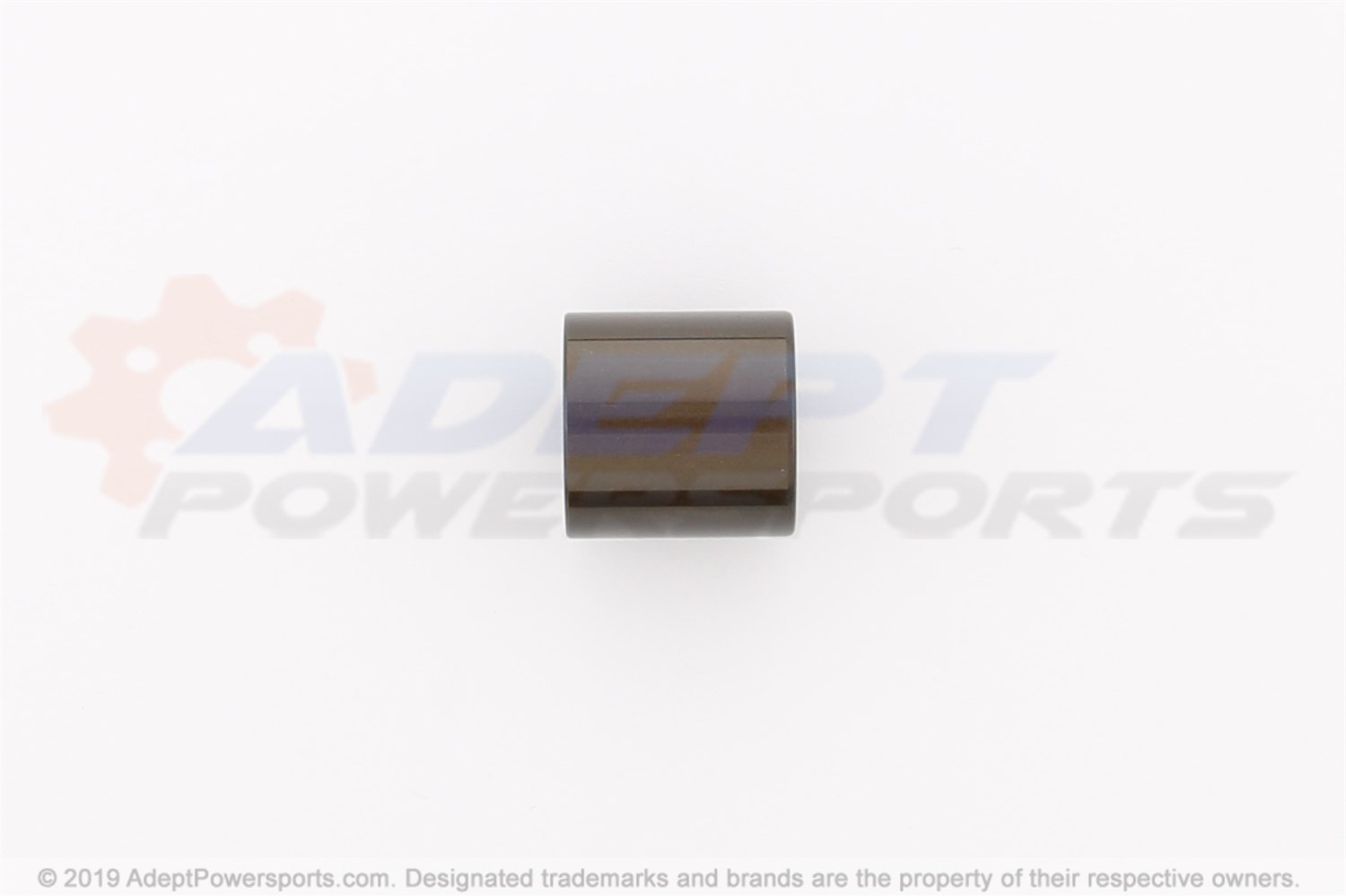

PISTON-CALIPER

Part #: 43048-1095 Required per assembly: 2
$35.95
$33.21
-
+
Add to cart
43049

PACKING, PISTON, SEAL

Part #: 43049-1060 Required per assembly: 2
$19.80
$16.50
-
+
Add to cart
43049A

PACKING, PISTON, SEAL

Part #: 43049-1061 Required per assembly: 2
$10.85
$9.25
-
+
Add to cart
43056

BREATHER-BRAKE

Part #: 43056-1056 Required per assembly: 1
$14.65
$12.33
-
+
Add to cart
43057

CAP-BREATHER

Part #: 43057-1001 Required per assembly: 1
$5.04
$3.94
-
+
Add to cart
43080

CALIPER-SUB-ASSEMBLY, FR

Part #: 43080-0157 Required per assembly: 1
$284.33
$279.02
-
+
Add to cart
43082

PAD, ASSEMBLY, BRAKE

Part #: 43082-1266 Required per assembly: 1
$51.87
$47.34
-
+
Add to cart
49006

BOOT, CALIPER

Part #: 49006-1088 Required per assembly: 1
$11.91
$10.10
-
+
Add to cart
49006A

BOOT, CALIPER

Part #: 49006-1242 Required per assembly: 1
$5.61
$4.36
-
+
Add to cart
92144

SPRING, PAD

Part #: 92144-1721 Required per assembly: 1
$8.62
-
+
Add to cart
92150

BOLT, HANGER

Part #: 92150-1691 Required per assembly: 1
$12.31
$10.43
-
+
Add to cart
92151

BOLT, DISC, PLATE, 6MM

Part #: 92151-1799 Required per assembly: 4
$4.25
$3.36
-
+
Add to cart
