Engine Hatch 2 replacement parts for 2022 Yamaha GP1800R HO with Audio

OEM Parts Yamaha 2022 Yamaha GP1800R HO with Audio Engine Hatch 2

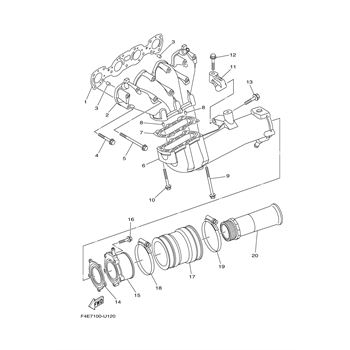

ENGINE HATCH 2 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BOLT, WITH, WASHER Part #: 90119-06803-00 Required per assembly: 2 ~~$9.16~~ $3.84 - + Add to cart
2	HOOK, LID, LOCK Part #: F4P-U517F-00-00 Required per assembly: 1 ~~$28.55~~ $21.15 - + Add to cart
3	NUT Part #: F3X-U517E-00-00 Required per assembly: 2 ~~$6.11~~ $1.36 - + Add to cart
4	PACKING Part #: F4P-U1743-00-00 Required per assembly: 2 ~~$4.07~~ $1.51 - + Add to cart
5	CAP Part #: F4P-U5568-00-00 Required per assembly: 1 ~~$7.12~~ $2.80 - + Add to cart
6	NUT Part #: F3X-U517E-00-00 Required per assembly: 4 ~~$6.11~~ $1.36 - + Add to cart
7	COVER, CENTER Part #: F4P-U5554-00-00 Required per assembly: 1 $181.51 - + Add to cart
8	ORNAMENT LH Part #: F4P-U517W-01-98 Required per assembly: 1 ~~$87.70~~ $77.54 - + Add to cart
8	ORNAMENT LH Part #: F4P-U517W-01-P4 Required per assembly: 1 ~~$87.70~~ $69.54 - + Add to cart
9	CLIP Part #: F3Y-U153K-00-00 Required per assembly: 1 ~~$6.11~~ $1.44 - + Add to cart
10	ORNAMENT RH (LGB) Part #: F4P-U517X-00-98 Required per assembly: 1 ~~$79.54~~ $60.46 - + Add to cart
10	ORNAMENT RH Part #: F4P-U517X-01-P4 Required per assembly: 1 ~~$87.70~~ $69.54 - + Add to cart
11	CLIP Part #: F3Y-U153K-00-00 Required per assembly: 1 ~~$6.11~~ $1.44 - + Add to cart
12	PLATE, FIX Part #: F2X-U5175-00-00 Required per assembly: 2 ~~$6.11~~ $1.97 - + Add to cart
13	RIVET (EU0) Part #: 90267-48938-00 Required per assembly: 2 Note: Sold in multiples of 5 only ~~$5.49~~ $4.97 - + Add to cart
14	SPACER Part #: F4P-U5239-00-00 Required per assembly: 2 ~~$6.11~~ $1.66 - + Add to cart
15	BOLT, WITH, WASHER Part #: 90119-06820-00 Required per assembly: 2 ~~$9.16~~ $3.84 - + Add to cart
16	BRACKET, ASSEMBLY, 1 Part #: F4P-UF88B-00-00 Required per assembly: 1 ~~$34.67~~ $25.67 - + Add to cart
17	BRACKET, ASSEMBLY, 2 Part #: F4P-UF88C-00-00 Required per assembly: 1 ~~$34.67~~ $25.67 - + Add to cart
18	BOLT, FIX Part #: F4P-U5176-00-00 Required per assembly: 2 ~~$2.02~~ $0.91 - + Add to cart
19	NUT, LOCK Part #: F2N-U142L-00-00 Required per assembly: 2 ~~$6.11~~ $1.51 - + Add to cart
20	GROMMET Part #: 90480-19800-00 Required per assembly: 4 ~~$16.30~~ $12.84 - + Add to cart
21	BOLT, WITH, WASHER Part #: 90119-05803-00 Required per assembly: 4 ~~$8.15~~ $4.46 - + Add to cart
22	CUSHION, RUBBER Part #: F1W-U3768-01-00 Required per assembly: 2 ~~$6.11~~ $1.59 - + Add to cart
23	ORNAMENT, METER Part #: F4P-U826F-01-00 Required per assembly: 1 ~~$31.60~~ $25.67 - + Add to cart
24	DAMPER 2 Part #: F0X-U515E-02-00 Required per assembly: 1 ~~$2.02~~ $1.13 - + Add to cart
25	COVER METER Part #: F4P-U8262-00-00 Required per assembly: 1 ~~$12.23~~ $9.81 - + Add to cart
26	SCREW Part #: F2S-U13C1-00-00 Required per assembly: 2 ~~$7.12~~ $2.65 - + Add to cart
27	SCREW Part #: F3X-U7823-12-00 Required per assembly: 2 ~~$5.99~~ $1.32 - + Add to cart
28	SCREW Part #: F3X-U7823-12-00 Required per assembly: 2 ~~$5.99~~ $1.32 - + Add to cart
29	GLOVE BOX HATCH ASSEMBLY Part #: F4P-U1708-00-00 Required per assembly: 1 ~~$127.48~~ $110.24 - + Add to cart
30	SEAL Part #: F3X-U2723-00-00 Required per assembly: 1 ~~$7.12~~ $2.42 - + Add to cart
31	NUT Part #: F3X-U517E-00-00 Required per assembly: 8 ~~$6.11~~ $1.36 - + Add to cart
32	INNER, CASE Part #: F4P-U591L-00-00 Required per assembly: 1 ~~$58.13~~ $46.84 - + Add to cart
33	BRACKET Part #: F2C-U826C-00-00 Required per assembly: 4 ~~$9.16~~ $4.22 - + Add to cart
34	RIVET 1 Part #: F4P-U516R-01-00 Required per assembly: 8 ~~$11.21~~ $5.35 - + Add to cart
35	BOLT, WITH, WASHER Part #: 90119-08828-00 Required per assembly: 4 ~~$7.12~~ $2.57 - + Add to cart
36	BOLT Part #: F4P-U1355-00-00 Required per assembly: 4 ~~$5.08~~ $0.98 - + Add to cart
37	GLOVE BOX COVER ASSEMBLY Part #: F4P-U4705-00-00 Required per assembly: 1 ~~$61.18~~ $48.35 - + Add to cart
38	PACKING CASE Part #: F4P-U519D-00-00 Required per assembly: 1 ~~$45.89~~ $37.77 - + Add to cart
39	MIRROR ASSEMBLY 1 Part #: F4P-U590D-01-00 Required per assembly: 1 ~~$149.93~~ $111.86 - + Add to cart
39	MIRROR ASSEMBLY 1 Part #: F4P-U590D-30-00 Required per assembly: 1 ~~$165.22~~ $128.49 - + Add to cart
40	BOLT, WITH, WASHER Part #: 90119-06304-00 Required per assembly: 2 ~~$4.84~~ $4.75 - + Add to cart
41	MIRROR ASSEMBLY 2 Part #: F4P-U590E-01-00 Required per assembly: 1 ~~$149.93~~ $111.86 - + Add to cart
41	MIRROR ASSEMBLY 2 Part #: F4P-U590E-30-00 Required per assembly: 1 ~~$165.22~~ $128.49 - + Add to cart
42	BOLT, WITH, WASHER Part #: 90119-06304-00 Required per assembly: 2 ~~$4.84~~ $4.75 - + Add to cart
43	RFM., DASH, BOARD, 1 Part #: F4P-U974A-00-00 Required per assembly: 1 ~~$17.32~~ $12.08 - + Add to cart
44	NUT, LOCK Part #: F2N-U142L-00-00 Required per assembly: 2 ~~$6.11~~ $1.51 - + Add to cart
45	SCREW Part #: F3X-U7823-12-00 Required per assembly: 2 ~~$5.99~~ $1.32 - + Add to cart
46	RFM., DASH, BOARD, 2 Part #: F4P-U974B-00-00 Required per assembly: 1 ~~$15.28~~ $12.08 - + Add to cart
47	NUT, LOCK Part #: F2N-U142L-00-00 Required per assembly: 2 ~~$6.11~~ $1.51 - + Add to cart
48	SCREW Part #: F3X-U7823-12-00 Required per assembly: 2 ~~$5.99~~ $1.32 - + Add to cart
