Frame replacement parts for 2022 Yamaha MT-07 CA

OEM Parts Yamaha 2022 Yamaha MT 07 CA Frame

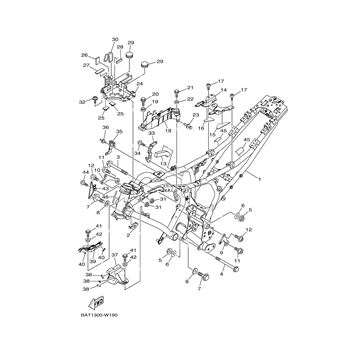

FRAME Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FRAME COMP. Part #: BAT-21110-11-00 Required per assembly: 1 $1,563.33 - + Add to cart
2	PLATE 1 Part #: 1WS-2191B-00-00 Required per assembly: 1 $18.98 $15.03 - + Add to cart
3	BOLT, FLANGE Part #: 90105-10219-00 Required per assembly: 1 $8.49 $5.64 - + Add to cart
4	BOLT, FLANGE Part #: 90105-10349-00 Required per assembly: 1 $16.48 $12.90 - + Add to cart
5	NUT Part #: 90179-10024-00 Required per assembly: 2 $11.49 $8.63 - + Add to cart
6	WASHER, PLATE Part #: 90201-10035-00 Required per assembly: 2 $4.50 $3.76 - + Add to cart
7	BOLT, FLANGE Part #: 90105-12092-00 Required per assembly: 2 $15.49 $11.66 - + Add to cart
8	WASHER, PLATE Part #: 90201-13020-00 Required per assembly: 2 $3.95 $2.98 - + Add to cart
9	STAY, ENGINE, 1 Part #: BAT-21315-00-00 Required per assembly: 1 $18.48 $15.15 - + Add to cart
10	STAY, ENGINE, 2 Part #: BAT-21316-00-00 Required per assembly: 1 $18.48 $15.15 - + Add to cart
11	BOLT, HEXAGON, SOCKET, HEAD Part #: 90110-10044-00 Required per assembly: 2 $6.49 $4.05 - + Add to cart
12	BOLT, HEXAGON, SOCKET, HEAD Part #: 90110-08111-00 Required per assembly: 4 $3.85 $2.87 - + Add to cart
13	DAMPER, PLATE Part #: 90520-20003-00 Required per assembly: 1 $9.49 $6.15 - + Add to cart
14	BRACKET, SEAT, FITTING Part #: BAT-21946-00-00 Required per assembly: 1 $64.98 $52.90 - + Add to cart
15	SEAT 1 Part #: B4C-2112B-00-00 Required per assembly: 1 $4.95 $3.81 - + Add to cart
16	SHEET, 2 Part #: BAT-2113C-00-00 Required per assembly: 1 $4.70 $3.96 - + Add to cart
17	BOLT, BUTTON, HEAD Part #: 92012-06010-00 Required per assembly: 4 $4.65 $2.40 - + Add to cart
18	COVER 3 Part #: 1WS-2117N-00-00 Required per assembly: 1 $10.99 $8.32 - + Add to cart
19	COLLAR Part #: 90387-1001B-00 Required per assembly: 1 Not Available
20	BOLT, WITH, WASHER Part #: 90119-06209-00 Required per assembly: 1 $6.49 $5.35 - + Add to cart
21	BLOT, FLANGE, DEEP, RECESS Part #: 95D32-06012-00 Required per assembly: 1 $9.49 $6.40 - + Add to cart
22	COLLAR Part #: 90387-06106-00 Required per assembly: 1 $8.49 $5.32 - + Add to cart
23	RIVET Part #: 90269-06002-00 Required per assembly: 1 $9.49 $6.05 - + Add to cart
24	BRACKET Part #: 1WS-21158-00-00 Required per assembly: 1 $72.98 $60.42 - + Add to cart
25	CLAMP (3YL) Part #: 90464-25160-00 Required per assembly: 2 $12.49 $9.56 - + Add to cart
26	DAMPER, PLATE Part #: 90520-01004-00 Required per assembly: 1 $0.90 $0.74 - + Add to cart
27	DAMPER, SEAT Part #: 3UF-24737-00-00 Required per assembly: 1 $4.90 $4.07 - + Add to cart
28	DAMPER Part #: 5DM-28371-00-00 Required per assembly: 2 $7.99 $5.32 - + Add to cart
29	GROMMET Part #: 90480-30167-00 Required per assembly: 2 $11.49 $9.06 - + Add to cart
30	BAND, TOOL Part #: 4XV-21376-00-00 Required per assembly: 1 $11.99 $10.01 - + Add to cart
31	NUT, FLANGE, (7NB) Part #: 95780-06500-00 Required per assembly: 2 $2.95 $1.87 - + Add to cart
32	BOLT, HEXAGON, SOCKET, BUTTON Part #: 90111-06122-00 Required per assembly: 1 $6.49 $4.16 - + Add to cart
33	BRACKET 8 Part #: 1WS-2161J-00-00 Required per assembly: 1 $9.49 $7.94 - + Add to cart
34	BOLT, BUTTON, HEAD Part #: 92017-06010-00 Required per assembly: 1 $5.49 $3.01 - + Add to cart
35	BRACKET 2 Part #: 1WS-2175U-00-00 Required per assembly: 1 $38.99 $30.56 - + Add to cart
36	RIVET Part #: 90269-07077-00 Required per assembly: 1 $9.49 $6.80 - + Add to cart
37	COVER 4 Part #: 1WS-2117R-00-00 Required per assembly: 1 $6.99 $5.76 - + Add to cart
38	PLATE, DAMPER Part #: 1HX-27415-00-00 Required per assembly: 3 $7.49 $6.27 - + Add to cart
39	COVER 5 Part #: 1WS-2117T-01-00 Required per assembly: 1 $5.49 $4.63 - + Add to cart
40	PLATE, DAMPER Part #: 1HX-27415-00-00 Required per assembly: 2 $7.49 $6.27 - + Add to cart
41	BOLT, FLANGE, DEEP, RECESS Part #: 95D07-06012-00 Required per assembly: 2 $0.28 $0.25 - + Add to cart
42	COLLAR Part #: 90387-062M9-00 Required per assembly: 2 $10.49 $6.49 - + Add to cart
43	GUIDE, CABLE Part #: BU2-21288-00-00 Required per assembly: 1 $21.98 $18.16 - + Add to cart
44	BOLT, FLANGE Part #: 95027-06010-00 Required per assembly: 1 $3.54 $2.43 - + Add to cart
45	SEAL Part #: 5VN-21268-00-00 Required per assembly: 2 Not Available
46	PROTECTOR, FUEL, TANK Part #: 3HA-24141-00-00 Required per assembly: 1 $15.49 $10.95 - + Add to cart
