Radiator & Hose replacement parts for 2022 Yamaha Sidewinder SRX LE

OEM Parts Yamaha 2022 Yamaha Sidewinder SRX LE Radiator & Hose

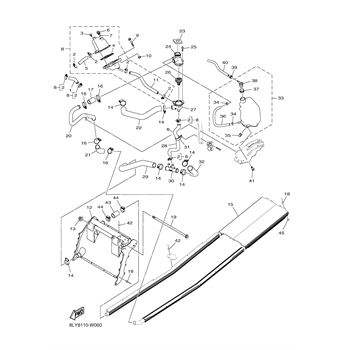

RADIATOR & HOSE Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HOSE 2 Part #: 8JP-E243E-00-00 Required per assembly: 1 ~~$5.49~~ $3.76 - + Add to cart
2	CLAMP, HOSE Part #: 8JP-F1823-00-00 Required per assembly: 8 ~~$4.20~~ $3.18 - + Add to cart
3	SCREW, 6 Part #: 8KC-RA295-00-00 Required per assembly: 6 ~~$0.40~~ $0.35 - + Add to cart
4	SEAL Part #: 8KC-E2877-00-00 Required per assembly: 1 ~~$8.49~~ $4.69 - + Add to cart
5	HOSE 2 Part #: 8KC-E243E-00-00 Required per assembly: 1 ~~$10.49~~ $6.99 - + Add to cart
6	PLUG, DRAIN Part #: 8JP-F15A1-00-00 Required per assembly: 1 ~~$20.98~~ $15.26 - + Add to cart
7	O-RING, 3 Part #: 8JP-RAF05-00-00 Required per assembly: 1 ~~$0.45~~ $0.32 - + Add to cart
8	TANK ASSEMBLY Part #: 8KC-E2490-00-00 Required per assembly: 1 ~~$191.99~~ $155.98 - + Add to cart
9	BOLT FLANGE M6X1.0X Part #: 8KN-RA183-00-00 Required per assembly: 2 ~~$0.95~~ $0.79 - + Add to cart
10	NUT, FLANGE, M6-1.0 Part #: 8JM-RA322-00-00 Required per assembly: 2 ~~$0.28~~ $0.25 - + Add to cart
11	HOSE, 3 Part #: 8KC-E243F-00-00 Required per assembly: 1 ~~$22.98~~ $16.90 - + Add to cart
12	HEAT EXCHANGER ASSEMBLY Part #: 8MG-E2440-00-00 Required per assembly: 1 ~~$626.99~~ $573.46 - + Add to cart
13	NUT, FLG., LOCKING Part #: 8JP-RA362-00-00 Required per assembly: 1 ~~$1.89~~ $1.38 - + Add to cart
14	CLAMP, 26 Part #: 8JP-RAB29-00-00 Required per assembly: 6 ~~$3.50~~ $2.50 - + Add to cart
15	HEAT EXCHANGER ASSEMBLY Part #: 8MG-E2440-10-00 Required per assembly: 1 ~~$340.99~~ $294.99 - + Add to cart
16	CLAMP, 22 Part #: 8JP-RAB24-00-00 Required per assembly: 6 ~~$4.79~~ $3.61 - + Add to cart
17	HOSE, 4 Part #: 8KC-E244G-00-00 Required per assembly: 1 ~~$3.95~~ $2.98 - + Add to cart
18	RIVET, 12 Part #: 8JP-RA521-00-00 Required per assembly: 1 ~~$1.95~~ $1.44 - + Add to cart
19	BOLT, ENGINE, MOUNTING, 1 Part #: 8KC-F1481-00-00 Required per assembly: 1 $32.37 - + Add to cart
20	PIPE 1 Part #: 8KC-E2481-00-00 Required per assembly: 1 ~~$48.99~~ $42.96 - + Add to cart
21	HOSE 5 Part #: 8MG-E244H-00-00 Required per assembly: 1 ~~$19.48~~ $14.08 - + Add to cart
22	HOSE 1 Part #: 8KC-E243A-00-00 Required per assembly: 1 ~~$37.99~~ $27.05 - + Add to cart
23	CAP, RADIATOR Part #: 8JP-E2462-00-00 Required per assembly: 1 ~~$45.99~~ $33.61 - + Add to cart
24	NECK, FILLER Part #: 8KC-E2521-00-00 Required per assembly: 1 ~~$17.48~~ $12.87 - + Add to cart
25	SCREW, M5X0.8X20 Part #: 8JP-RA244-00-00 Required per assembly: 3 ~~$0.45~~ $0.34 - + Add to cart
26	THERMOSTAT ASSEMBLY Part #: 8JP-E2410-00-00 Required per assembly: 1 ~~$89.98~~ $66.66 - + Add to cart
27	HOUSING, THERMOSTAT Part #: 8KC-E2417-00-00 Required per assembly: 1 ~~$103.98~~ $82.06 - + Add to cart
28	HOSE 8 Part #: 8KC-E2552-00-00 Required per assembly: 1 ~~$35.99~~ $25.54 - + Add to cart
29	HOSE 6 Part #: 8KC-E244J-00-00 Required per assembly: 1 ~~$35.99~~ $26.13 - + Add to cart
30	JOINT Part #: 8KC-E2446-00-00 Required per assembly: 1 ~~$12.99~~ $9.31 - + Add to cart
31	CLAMP, 3 Part #: 8KC-RAB05-00-00 Required per assembly: 1 ~~$8.49~~ $6.99 - + Add to cart
32	HOSE 7 Part #: 8KC-E2551-00-00 Required per assembly: 1 ~~$28.98~~ $20.37 - + Add to cart
33	RECOVERY TANK ASSEMBLY Part #: 8KC-F1870-00-00 Required per assembly: 1 ~~$114.98~~ $95.68 - + Add to cart
34	CLAMP, HOSE-10.8, MM Part #: 8JM-RAC02-00-00 Required per assembly: 2 Note: Sold in multiples of 5 only ~~$4.95~~ $3.81 - + Add to cart
35	NUT, CLIP, M6 Part #: 8JP-RA354-00-00 Required per assembly: 2 ~~$0.96~~ $0.68 - + Add to cart
36	HOSE, 6, (25, FEET) Part #: 8JP-RA910-00-00 Required per assembly: 1 Not Available
37	STOPPER Part #: 8KC-E2437-00-00 Required per assembly: 1 ~~$9.49~~ $5.65 - + Add to cart
38	VALVE, CHECK, 1 Part #: 8JP-F4362-00-00 Required per assembly: 1 ~~$49.99~~ $36.39 - + Add to cart
39	CLAMP, 3 Part #: 8KC-RAB02-00-00 Required per assembly: 1 ~~$1.60~~ $1.21 - + Add to cart
40	HOSE, 3, (50, FEET) Part #: 8JP-RA907-00-00 Required per assembly: 1 ~~$356.14~~ $323.76 - + Add to cart
41	BOLT 1 Part #: 8LN-K7537-00-00 Required per assembly: 2 ~~$2.64~~ $2.22 - + Add to cart
42	RIVET, 11 Part #: 8JP-RA520-00-00 Required per assembly: 1 ~~$0.75~~ $0.59 - + Add to cart
43	HOSE, 4 Part #: 8MF-E244G-00-00 Required per assembly: 1 ~~$10.49~~ $6.41 - + Add to cart
44	CLAMP, 22 Part #: 8MF-RAB24-00-00 Required per assembly: 2 ~~$4.95~~ $3.64 - + Add to cart
45	WASHER, FLAT, .194X.50 Part #: 8JM-RA411-00-00 Required per assembly: 4 ~~$0.28~~ $0.25 - + Add to cart
