Side Panel replacement parts for 2022 Yamaha Transporter Lite

OEM Parts Yamaha 2022 Yamaha Transporter Lite Side Panel

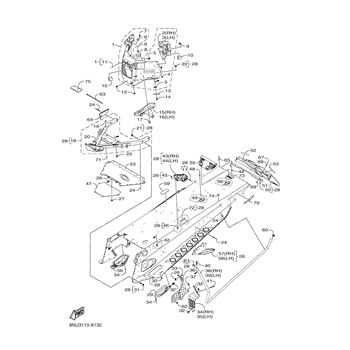

SIDE PANEL Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SIDE PANEL COMP. (R.H) Part #: 8NU-K810G-00-00 Required per assembly: 1 $185.99 $173.97 - + Add to cart
2	VENT, FRONT, 2 Part #: 8NS-K715J-00-00 Required per assembly: 1 $16.98 $14.03 - + Add to cart
3	VENT, FRONT, 1 Part #: 8NS-K715H-00-00 Required per assembly: 1 $16.98 $14.03 - + Add to cart
4	NUT, SPRING Part #: 8NV-RA346-00-00 Required per assembly: 10 $1.14 $0.95 - + Add to cart
5	PROTECTOR 3 Part #: 8NS-K7553-00-00 Required per assembly: 1 $18.48 $15.06 - + Add to cart
6	PROTECTOR 5 Part #: 8NS-K7555-00-00 Required per assembly: 1 $11.49 $9.39 - + Add to cart
7	PAD 1 Part #: 8NS-K7151-00-00 Required per assembly: 2 $53.99 $38.63 - + Add to cart
8	DAMPER, NOISE, 14 Part #: 8NT-K7274-00-00 Required per assembly: 1 $8.49 $6.73 - + Add to cart
9	DAMPER, NOISE, 11 Part #: 8NT-K7271-00-00 Required per assembly: 1 Not Available
10	PROTECTOR 2 Part #: 8NS-K7552-00-00 Required per assembly: 1 $5.49 $4.54 - + Add to cart
11	DAMPER, NOISE, 13 Part #: 8NT-K7273-00-00 Required per assembly: 1 $18.48 $15.06 - + Add to cart
12	SCREW, 10-12X3/4 Part #: 8KC-RA290-00-00 Required per assembly: 2 $2.25 $1.71 - + Add to cart
13	HOOK 2 Part #: 8KC-K715T-00-00 Required per assembly: 1 $4.20 $3.24 - + Add to cart
14	HOOK 1 Part #: 8KC-K715S-00-00 Required per assembly: 1 $4.04 $3.24 - + Add to cart
15	NUT, CLIP, 10 Part #: 8JP-RA352-00-00 Required per assembly: 2 Note: Sold in multiples of 2 only $1.85 $1.35 - + Add to cart
16	LABEL, WARNING, 1 Part #: 8NT-K7761-S0-00 Required per assembly: 1 $12.49 $10.51 - + Add to cart
17	SIDE PANEL COMP. (L.H) Part #: 8NU-K810F-00-00 Required per assembly: 1 $140.99 $127.33 - + Add to cart
18	DAMPER, NOISE, 16 Part #: 8NT-K7276-00-00 Required per assembly: 1 $32.99 $21.11 - + Add to cart
19	DAMPER, NOISE, 17 Part #: 8NS-K7277-00-00 Required per assembly: 1 $6.99 $5.70 - + Add to cart
20	PROTECTOR 4 Part #: 8NS-K7554-00-00 Required per assembly: 1 $12.49 $10.09 - + Add to cart
21	LABEL, WARNING, 1 Part #: 8NT-K7761-70-00 Required per assembly: 1 Not Available
