Floor Cover - Protector replacement parts for 2023 Honda SXS1000M3D

OEM Parts Honda 2023 Honda SXS1000M3D Floor Cover - Protector

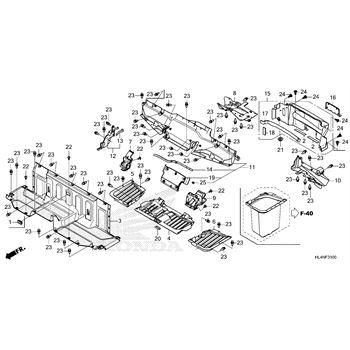

FLOOR COVER - PROTECTOR Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

F 0710
001	CAP Part #: 31652-HP0-A01 Required per assembly: 1 $2.58 $2.10 - + Add to cart
002	NUT Part #: 31653-HP0-A01 Required per assembly: 1 $2.41 $2.23 - + Add to cart
003	SOCKET, ACCESSORY Part #: 31655-HP0-A01 Required per assembly: 1 $28.42 $22.66 - + Add to cart
004	PROTECTOR, R., FLOOR Part #: 50443-HL4-AK0 Required per assembly: 1 $95.71 - + Add to cart
005	PROTECTOR, L., FLOOR Part #: 50444-HL4-AK0 Required per assembly: 1 $113.96 - + Add to cart
006	COVER, FR., FLOOR Part #: 64100-HL4-AK0 Required per assembly: 1 $453.66 - + Add to cart
007	STAY, A, FR., FLOOR Part #: 64101-HL4-A00 Required per assembly: 2 $6.38 $6.04 - + Add to cart
008	STAY, B, FR., FLOOR Part #: 64102-HL4-A01 Required per assembly: 1 $17.58 $15.98 - + Add to cart
009	LID, FR., FLOOR, NH1, (BLACK) Part #: 64105-HL4-A00ZA Required per assembly: 1 $7.15 $6.52 - + Add to cart
010	COVER, PEDAL Part #: 64110-HL4-AK0 Required per assembly: 1 $15.84 $13.27 - + Add to cart
011	RUBBER, BRAKE, SPRING, COVER Part #: 64111-HL4-AK0 Required per assembly: 1 $4.47 - + Add to cart
012	RUBBER, SENSOR, HARNESS, COVER Part #: 64112-HL4-AK0 Required per assembly: 1 $4.60 - + Add to cart
013	NET, FR., CARGO Part #: 81543-HL4-F01 Required per assembly: 1 $89.45 $74.59 - + Add to cart
014	GROMMET, RUBBER Part #: 81544-HL4-F00 Required per assembly: 15 $2.71 $2.51 - + Add to cart
015	SEAL, RUBBER Part #: 81545-HL4-F00 Required per assembly: 1 $5.31 $4.94 - + Add to cart
016	SEAL, RUBBER Part #: 81546-HL4-F00 Required per assembly: 1 $1.90 $1.75 - + Add to cart
017	NET, STORAGE, (PASSENGER, SIDE) Part #: 81547-HL4-F00 Required per assembly: 1 $13.84 $11.54 - + Add to cart
018	RIVET, PUSH, PULL Part #: 81548-HL4-F00 Required per assembly: 4 $1.52 $1.39 - + Add to cart
019	STORAGE, SUB-ASSEMBLY, INSTRUMENT, PANEL, (LOWER), NH167L(GRAPHITE, BLACK) Part #: 81549-HL4-F00ZC Required per assembly: 1 $212.16 - + Add to cart
020	CLIP, NET, HOOK, NH167L(GRAPHITE, BLACK) Part #: 84661-T0A-003ZC Required per assembly: 4 $10.60 $9.95 - + Add to cart
021	SCREW, PAN, (6X14) Part #: 90106-KBV-000 Required per assembly: 10 $5.28 $4.80 - + Add to cart
022	SCREW, PAN, (6X16) Part #: 90117-HL5-E60 Required per assembly: 2 $5.09 $4.63 - + Add to cart
023	SCREW, TAPPING, (4X10), (PO) Part #: 90132-SS0-000 Required per assembly: 4 $4.22 $3.84 - + Add to cart
024	SCREW, PAN, (5.5X16) Part #: 90145-HL4-F00 Required per assembly: 2 $2.11 $1.96 - + Add to cart
025	NUT Part #: 90305-SH3-000 Required per assembly: 2 $7.78 $7.47 - + Add to cart
026	CLIP, SPLASH, GUARD, (EACH) Part #: 90653-HC4-900 Required per assembly: 30 $1.67 $1.52 - + Add to cart
027	NUT, CLIP, (5MM) Part #: 90677-KAN-961 Required per assembly: 4 $5.46 $4.96 - + Add to cart
