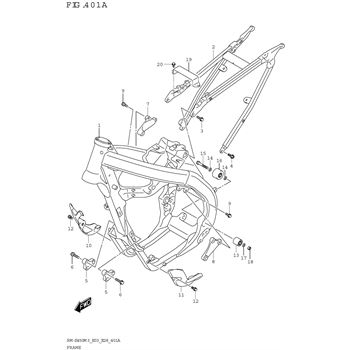

Frame replacement parts for 2023 Suzuki RM-Z450

OEM Parts Suzuki 2023 Suzuki RM Z450 Frame

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FRAME Part #: 41100-37K10 Required per assembly: 1 $3,503.12 - + Add to cart
2	RAIL, SEAT Part #: 41200-37K00 Required per assembly: 1 $849.37 $726.21 - + Add to cart
3	BOLT, REAR Part #: 09103-08288 Required per assembly: 2 Note: BOLT, HOOK; $4.22 $3.80 - + Add to cart
4	BOLT (8X20) Part #: 09103-08505 Required per assembly: 2 Note: BOLT, NO.2; $3.77 $3.39 - + Add to cart
5	BRACKET, ENGINE, MOUNT, FRONT Part #: 41991-37K00 Required per assembly: 2 $57.47 $51.72 - + Add to cart
6	BOLT (10X32) Part #: 09103-10342 Required per assembly: 4 $4.74 $4.27 - + Add to cart
7	BRACKET, ENG, MTG, UPPER, RH Part #: 41931-37K01 Required per assembly: 1 $96.28 $86.65 - + Add to cart
8	BRACKET, ENG, MTG, UPPER, LH Part #: 41941-37K02 Required per assembly: 1 $96.28 $86.65 - + Add to cart
9	BOLT (8X20) Part #: 09103-08505 Required per assembly: 4 Note: BOLT, NO.2; $3.77 $3.39 - + Add to cart
10	PROTECTOR, FRONT, RH Part #: 42520-28H11 Required per assembly: 1 $21.77 $19.59 - + Add to cart
11	PROTECTOR, FRONT, LH Part #: 42530-28H20 Required per assembly: 1 $32.93 $29.64 - + Add to cart
12	BOLT Part #: 09116-06177 Required per assembly: 3 Note: BOLT, CHAIN GUIDE; $2.95 $2.66 - + Add to cart
13	ROLLER, CHAIN, CONTROL Part #: 43910-37F00 Required per assembly: 1 $74.07 $66.66 - + Add to cart
14	WASHER Part #: 09181-08167 Required per assembly: 2 Note: WASHER (8X16X1.0); $2.39 $2.15 - + Add to cart
15	BOLT Part #: 09103-08207 Required per assembly: 1 $3.03 $2.73 - + Add to cart
16	ROLLER, CHAIN, CONTROL Part #: 43910-37F00 Required per assembly: 1 $74.07 $66.66 - + Add to cart
17	WASHER (8X12X1) Part #: 09181-08111 Required per assembly: 1 Note: WASHER; $2.43 $2.19 - + Add to cart
18	NUT Part #: 08319-2108A Required per assembly: 1 Note: NUT, T/F SHIFT LEVER; $2.67 $2.40 - + Add to cart
19	BRIDGE, SEAT, RAIL, UPPER Part #: 41542-46K00 Required per assembly: 1 $15.19 $13.67 - + Add to cart
20	BOLT Part #: 01547-0612A Required per assembly: 2 $2.45 $2.21 - + Add to cart
