Ventilation System replacement parts for 2023 Yamaha 252S

OEM Parts Yamaha 2023 Yamaha 252S Ventilation System

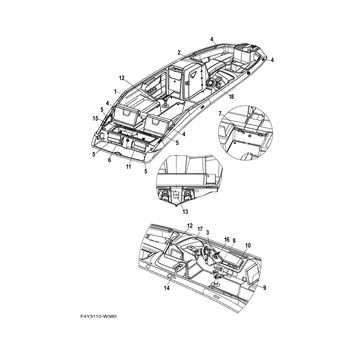

VENTILATION SYSTEM Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BLOWER ASSEMBLY Part #: F1C-U8340-00-00 Required per assembly: 2 $53.03 $42.31 - + Add to cart
2	SCREW, #10, X, 3/4&QUO Part #: 90169-10SA1-00 Required per assembly: 4 $6.11 $1.44 - + Add to cart
3	HOSE, VENTILATOR, 1 Part #: F4Y-U213F-00-00 Required per assembly: 1 $27.53 $21.91 - + Add to cart
4	HOSE, VENTILATOR, 1 Part #: F1C-U213F-23-00 Required per assembly: 1 $32.63 $28.92 - + Add to cart
5	HOSE, VENTILATOR, 1 Part #: F3A-U213F-00-00 Required per assembly: 1 $21.41 $15.86 - + Add to cart
6	HOSE, VENTILATOR, 1 Part #: F1T-U213F-00-00 Required per assembly: 1 $10.18 $6.43 - + Add to cart
7	HOSE, VENTILATOR, 1 Part #: F3F-U213F-10-00 Required per assembly: 1 $34.67 $25.67 - + Add to cart
8	VENTILATOR, OUTLET Part #: F3M-U2139-00-00 Required per assembly: 4 $14.27 $12.84 - + Add to cart
9	SCREW, TAPPING Part #: 90167-08SA8-00 Required per assembly: 16 $6.11 $1.13 - + Add to cart
10	TRIM, HATCH, 2 Part #: F4Y-U5516-20-00 Required per assembly: 1 $575.26 $548.72 - + Add to cart
11	COVER, AIR, VENT Part #: F4Y-U5516-31-00 Required per assembly: 1 $368.20 $356.70 - + Add to cart
12	SCREW, TAPPING Part #: 90167-08SA3-00 Required per assembly: 12 Not Available
13	SCREW, TRUSS, HEAD, TAPPING Part #: 90169-10SA3-00 Required per assembly: 4 $6.11 $1.36 - + Add to cart
14	BAND, HOSE Part #: 90601-200U8-00 Required per assembly: 12 $7.12 $2.10 - + Add to cart
15	SCREW, #8, X, 5/8" Part #: 90167-08S10-00 Required per assembly: 12 $6.11 $0.91 - + Add to cart
16	CLAMP Part #: 90464-99805-00 Required per assembly: 21 $0.51 $0.38 - + Add to cart
17	NUT Part #: 90170-08S00-00 Required per assembly: 2 Note: FOR-000821~ SEE NOTE FOR REF. # 9 $6.11 $1.29 - + Add to cart
18	WASHER, LOCK, (#8) Part #: 90204-08S00-00 Required per assembly: 2 $6.11 $1.29 - + Add to cart
19	WASHER, #8, FLAT Part #: 90201-08S00-00 Required per assembly: 2 $4.07 $0.60 - + Add to cart
20	VENT, AIR Part #: F1C-U7851-00-00 Required per assembly: 1 $8.15 $2.57 - + Add to cart
