Exhaust 1 replacement parts for 2023 Yamaha 252XE California

OEM Parts Yamaha 2023 Yamaha 252XE California Exhaust 1

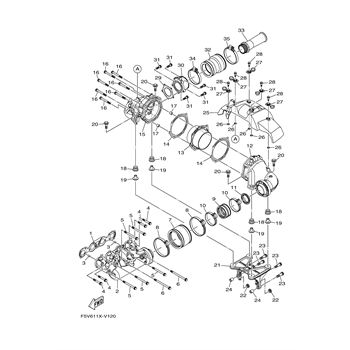

EXHAUST 1 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	GASKET, EXHAUST, PIPE Part #: 6DE-14613-00-00 Required per assembly: 1 ~~$51.99~~ $51.39 - + Add to cart
2	MUFFLER 1 Part #: 6DE-14711-00-00 Required per assembly: 1 ~~$928.49~~ $924.23 - + Add to cart
3	PIN, DOWEL Part #: 93608-16M16-00 Required per assembly: 2 ~~$2.79~~ $2.54 - + Add to cart
4	BOLT, WITH, WASHER Part #: 90119-08034-00 Required per assembly: 4 ~~$4.49~~ $4.08 - + Add to cart
5	BOLT, WITH, WASHER Part #: 90119-08097-00 Required per assembly: 5 ~~$6.99~~ $6.35 - + Add to cart
6	BOLT, WITH, WASHER Part #: 90119-08164-00 Required per assembly: 2 ~~$7.49~~ $6.80 - + Add to cart
7	JOINT, EXHAUST, 1 Part #: 6DE-14615-00-00 Required per assembly: 1 ~~$113.48~~ $111.86 - + Add to cart
8	HOSE CLAMP ASSEMBLY Part #: 90450-99M18-00 Required per assembly: 2 ~~$86.98~~ $70.34 - + Add to cart
9	JOINT, EXHAUST, 2 Part #: 6DE-14625-00-00 Required per assembly: 1 ~~$86.47~~ $78.61 - + Add to cart
10	HOSE CLAMP ASSEMBLY Part #: 90450-95001-00 Required per assembly: 2 ~~$29.48~~ $29.45 - + Add to cart
11	SEAL, EXHAUST Part #: 6DE-14642-00-00 Required per assembly: 1 ~~$131.99~~ $130.00 - + Add to cart
12	OUTER, COVER, EXHAUST Part #: 6DE-41113-00-00 Required per assembly: 1 ~~$796.49~~ $796.20 - + Add to cart
13	CATALYST ASSEMBLY Part #: 6DE-14740-00-00 Required per assembly: 1 ~~$1,783.49~~ $1,760.90 - + Add to cart
14	GASKET, EXHAUST, OUTER, COVER Part #: 6DE-41114-00-00 Required per assembly: 2 ~~$51.99~~ $51.39 - + Add to cart
15	OUTER, COVER, EXHAUST Part #: 6DE-41123-00-00 Required per assembly: 1 $673.73 - + Add to cart
16	BOLT, WITH, WASHER Part #: 90119-08021-00 Required per assembly: 7 ~~$9.13~~ $8.30 - + Add to cart
17	PIN, DOWEL Part #: 99530-12016-00 Required per assembly: 2 ~~$4.88~~ $4.05 - + Add to cart
18	GROMMET Part #: 90480-21M63-00 Required per assembly: 4 ~~$17.48~~ $12.49 - + Add to cart
19	COLLAR Part #: 90387-11008-00 Required per assembly: 4 ~~$19.98~~ $19.64 - + Add to cart
20	BOLT, WITH, WASHER Part #: 90119-10011-00 Required per assembly: 4 ~~$6.49~~ $5.88 - + Add to cart
21	STAY, MUFFLER, 2 Part #: 6DE-14781-00-00 Required per assembly: 1 $574.45 - + Add to cart
22	GROMMET Part #: 90480-13014-00 Required per assembly: 2 ~~$9.49~~ $6.73 - + Add to cart
23	BOLT, FLG., (SMALL, HEAD) Part #: 95024-10050-00 Required per assembly: 4 ~~$6.49~~ $4.43 - + Add to cart
24	PIN, DOWEL Part #: 99530-14016-00 Required per assembly: 2 ~~$3.79~~ $3.14 - + Add to cart
25	PROTECTOR, MUFFLER, 1 Part #: 6DE-14718-00-00 Required per assembly: 1 $121.35 - + Add to cart
26	GASKET Part #: 90430-09004-00 Required per assembly: 5 ~~$4.99~~ $4.54 - + Add to cart
27	COVER Part #: 66V-15779-00-00 Required per assembly: 5 ~~$3.49~~ $3.18 - + Add to cart
28	BOLT Part #: 90109-06M99-00 Required per assembly: 5 ~~$8.49~~ $4.90 - + Add to cart
29	GASKET, MUFFLER, DAMPER, 2 Part #: 6BH-14749-00-00 Required per assembly: 1 ~~$26.59~~ $24.18 - + Add to cart
30	PIPE, TAIL Part #: 6BH-14784-01-00 Required per assembly: 1 ~~$184.99~~ $182.92 - + Add to cart
31	BOLT, FLANGE, DEEP, RECESS Part #: 95E34-08035-00 Required per assembly: 5 ~~$2.85~~ $2.42 - + Add to cart
32	PIPE, OUTLET Part #: 6S5-E4752-01-00 Required per assembly: 1 ~~$34.67~~ $26.43 - + Add to cart
33	PIPE 1 Part #: 6CS-1475A-00-00 Required per assembly: 2 ~~$208.99~~ $205.62 - + Add to cart
34	HOSE CLAMP ASSEMBLY Part #: 90450-99808-00 Required per assembly: 1 ~~$11.21~~ $5.13 - + Add to cart
35	HOSE CLAMP ASSEMBLY Part #: 90450-99809-00 Required per assembly: 1 ~~$11.21~~ $5.50 - + Add to cart
