Control Cable replacement parts for 2023 Yamaha 252SD

OEM Parts Yamaha 2023 Yamaha 252SD Control Cable

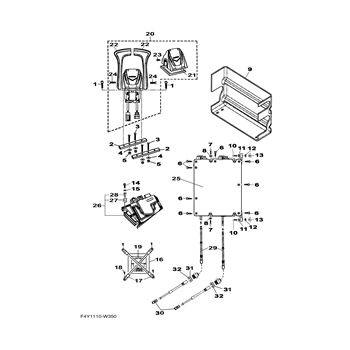

CONTROL CABLE Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SCREW, PAN, HEAD Part #: 90157-10S16-00 Required per assembly: 4 $5.08 $0.91 - + Add to cart
2	PLATE Part #: F3F-U1348-00-00 Required per assembly: 2 $11.21 $6.43 - + Add to cart
3	SCREW, COUNTERSUNK Part #: 90151-10S20-00 Required per assembly: 4 $0.46 $0.38 - + Add to cart
4	WASHER, #10, FLAT Part #: 90201-10S00-00 Required per assembly: 4 $4.99 $0.56 - + Add to cart
5	NUT, SELF-LOCKING Part #: 90185-10S00-00 Required per assembly: 4 $5.08 $1.06 - + Add to cart
6	SCREW, PAN, HEAD Part #: 90157-05815-00 Required per assembly: 8 $6.11 $1.59 - + Add to cart
7	SCREW, TAPPING Part #: 90169-10SA0-00 Required per assembly: 4 $6.11 $1.36 - + Add to cart
8	WASHER, #10, FLAT Part #: 90201-10S00-00 Required per assembly: 4 $4.99 $0.56 - + Add to cart
9	COVER Part #: F3F-U7437-00-00 Required per assembly: 1 $160.13 $132.47 - + Add to cart
10	SCREW Part #: 90149-10SC4-00 Required per assembly: 4 $5.08 $3.02 - + Add to cart
11	WASHER, PLATE Part #: 90201-15S00-00 Required per assembly: 4 $0.15 - + Add to cart
12	WASHER, 5/16X1, 1/2 Part #: 90209-15SA4-00 Required per assembly: 4 $6.11 $1.51 - + Add to cart
13	NUT, WING Part #: 90175-15SA1-00 Required per assembly: 4 $3.04 $1.13 - + Add to cart
14	SCREW, TAPPING Part #: 90167-10S16-00 Required per assembly: 4 $6.11 $1.36 - + Add to cart
15	WASHER, #10, FLAT Part #: 90201-10S00-00 Required per assembly: 4 $4.99 $0.56 - + Add to cart
16	MAT, WATER, LOCK Part #: GJ3-U755J-00-00 Required per assembly: 1 $115.25 $90.70 - + Add to cart
17	EYE STRAP Part #: F3F-U1543-00-00 Required per assembly: 2 $9.67 $7.41 - + Add to cart
18	SCREW, TAPPING Part #: 90167-08SA8-00 Required per assembly: 4 $6.11 $1.13 - + Add to cart
19	CONTROL UNIT Part #: F4Y-68197-01-00 Required per assembly: 1 $489.58 $453.58 - + Add to cart
20	REMOCON. LEVER ASSY. Part #: F3F-6134A-11-00 Required per assembly: 1 $1,463.49 $1,439.41 - + Add to cart
21	GASKET Part #: F3F-67564-00-00 Required per assembly: 1 $152.99 $151.17 - + Add to cart
22	LEVER ASSEMBLY Part #: F3F-6151M-10-00 Required per assembly: 2 $585.99 $576.06 - + Add to cart
23	BOLT Part #: F3F-61355-00-00 Required per assembly: 1 $19.11 $17.37 - + Add to cart
24	SCREW, FLAT, HEAD, TAPPING Part #: F3F-67869-00-00 Required per assembly: 2 $12.46 $11.32 - + Add to cart
25	MOTOR ASSEMBLY Part #: F3F-6140B-01-00 Required per assembly: 1 $1,721.99 $1,708.42 - + Add to cart
26	CONTROL UNIT ASSY Part #: F3F-85590-14-00 Required per assembly: 1 $1,431.49 $1,407.66 - + Add to cart
27	DAMPER, IGNITION, COIL Part #: 6A0-82317-01-00 Required per assembly: 4 $7.49 $7.03 - + Add to cart
28	COLLAR Part #: 90387-06119-00 Required per assembly: 4 $4.90 $4.84 - + Add to cart
29	CABLE, REVERSE Part #: F5V-6149C-01-00 Required per assembly: 2 $322.97 - + Add to cart
30	BALL JOINT ASSEMBLY Part #: F2C-61460-00-00 Required per assembly: 1 $51.53 $46.84 - + Add to cart
31	PACKING C Part #: F1B-61438-00-00 Required per assembly: 1 $2.99 $2.72 - + Add to cart
32	NUT Part #: F1B-6151S-01-00 Required per assembly: 1 $14.49 $14.35 - + Add to cart
