Front Fork replacement parts for 2023 Yamaha MT-10 CA

OEM Parts Yamaha 2023 Yamaha MT 10 CA Front Fork

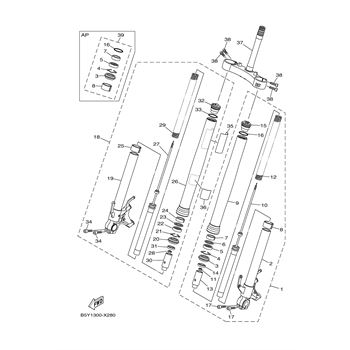

FRONT FORK Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	DAMPER ASSEMBLY (L) Part #: B5Y-23102-00-00 Required per assembly: 1 $1,523.27 $1,384.80 - + Add to cart
2	INNER TUBE COMP.1 Part #: 2CR-23110-01-00 Required per assembly: 1 $549.99 $353.43 - + Add to cart
3	SEAL, DUST Part #: 4PU-23144-00-00 Required per assembly: 1 $26.98 $19.81 - + Add to cart
4	RING, SNAP Part #: 4V4-23153-L0-00 Required per assembly: 1 $10.99 $8.50 - + Add to cart
5	OIL SEAL Part #: 4PU-23145-01-00 Required per assembly: 1 $28.98 $20.61 - + Add to cart
6	WASHER, OIL, SEAL Part #: 4V4-23146-L0-00 Required per assembly: 1 $7.49 $6.35 - + Add to cart
7	METAL, SLIDE, 1 Part #: 2CR-23125-00-00 Required per assembly: 1 $12.99 $9.39 - + Add to cart
8	PISTON, FRONT, FORK Part #: 2CR-23171-00-00 Required per assembly: 1 $30.98 $22.85 - + Add to cart
9	TUBE, OUTER, 2 Part #: 2CR-23136-10-00 Required per assembly: 1 $373.99 $336.65 - + Add to cart
10	CYLINDER, COMP, FRONT, FORK Part #: B5Y-23170-00-00 Required per assembly: 1 $411.99 $404.52 - + Add to cart
11	NUT Part #: 3LC-23357-00-00 Required per assembly: 1 $7.49 $6.31 - + Add to cart
12	SPRING, FRONT, FORK Part #: B5Y-23141-00-00 Required per assembly: 1 $50.99 $44.68 - + Add to cart
13	SPACER Part #: 2CR-23118-00-00 Required per assembly: 1 $12.49 $10.15 - + Add to cart
14	GUIDE, SPRING Part #: 2CR-23117-00-00 Required per assembly: 1 $12.49 $10.46 - + Add to cart
15	BOLT, CAP Part #: 2CR-23111-10-00 Required per assembly: 1 $322.99 $291.98 - + Add to cart
16	O-RING Part #: 39P-23147-00-00 Required per assembly: 1 $9.49 $6.77 - + Add to cart
17	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-08040-00 Required per assembly: 2 $8.49 $5.15 - + Add to cart
18	DAMPER ASSEMBLY (R) Part #: B5Y-23103-00-00 Required per assembly: 1 $1,249.41 $1,135.83 - + Add to cart
19	INNER TUBE COMP.2 Part #: 2CR-23120-01-00 Required per assembly: 1 $538.99 $346.34 - + Add to cart
20	SEAL, DUST Part #: 4PU-23144-00-00 Required per assembly: 1 $26.98 $19.81 - + Add to cart
21	RING, SNAP Part #: 4V4-23153-L0-00 Required per assembly: 1 $10.99 $8.50 - + Add to cart
22	OIL SEAL Part #: 4PU-23145-01-00 Required per assembly: 1 $28.98 $20.61 - + Add to cart
23	WASHER, OIL, SEAL Part #: 4V4-23146-L0-00 Required per assembly: 1 $7.49 $6.35 - + Add to cart
24	METAL, SLIDE, 1 Part #: 2CR-23125-00-00 Required per assembly: 1 $12.99 $9.39 - + Add to cart
25	PISTON, FRONT, FORK Part #: 2CR-23171-00-00 Required per assembly: 1 $30.98 $22.85 - + Add to cart
26	TUBE, OUTER, 2 Part #: 2CR-23136-10-00 Required per assembly: 1 $373.99 $336.65 - + Add to cart
27	CYLINDER, COMP, FRONT, FORK Part #: B5Y-23170-00-00 Required per assembly: 1 $411.99 $404.52 - + Add to cart
28	NUT Part #: 3LC-23357-00-00 Required per assembly: 1 $7.49 $6.31 - + Add to cart
29	SPRING, FRONT, FORK Part #: B5Y-23141-00-00 Required per assembly: 1 $50.99 $44.68 - + Add to cart
30	SPACER Part #: 2CR-23118-00-00 Required per assembly: 1 $12.49 $10.15 - + Add to cart
31	GUIDE, SPRING Part #: 2CR-23117-00-00 Required per assembly: 1 $12.49 $10.46 - + Add to cart
32	BOLT, CAP Part #: 2CR-23111-10-00 Required per assembly: 1 $322.99 $291.98 - + Add to cart
33	O-RING Part #: 39P-23147-00-00 Required per assembly: 1 $9.49 $6.77 - + Add to cart
34	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-08040-00 Required per assembly: 2 $8.49 $5.15 - + Add to cart
35	PROTECTOR Part #: BEB-23472-00-00 Required per assembly: 1 $15.49 $12.19 - + Add to cart
36	SEAL Part #: 5PX-21669-01-00 Required per assembly: 1 $12.99 $9.74 - + Add to cart
37	UNDER BRACKET COMP. Part #: B5Y-23340-00-00 Required per assembly: 1 $632.99 $620.00 - + Add to cart
38	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-08030-00 Required per assembly: 1 $2.54 $2.25 - + Add to cart
39	FORK SEALS KIT Part #: B67-W003B-00-00 Required per assembly: 1 $36.99 $32.40 - + Add to cart
