Engine Bracket replacement parts for 2023 Yamaha Transporter 800

OEM Parts Yamaha 2023 Yamaha Transporter 800 Engine Bracket

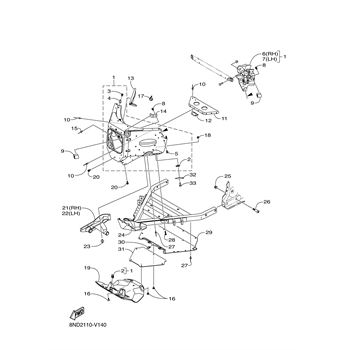

ENGINE BRACKET Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BOLT, FLANGE Part #: 8ND-RA100-00-00 Required per assembly: 1 $3.75 $3.11 - + Add to cart
2	SENSOR, KNOCK Part #: 8ND-H5780-00-00 Required per assembly: 1 $111.98 $87.80 - + Add to cart
3	HANDLE, STARTER Part #: 8ND-E5755-00-00 Required per assembly: 1 $25.98 $19.57 - + Add to cart
4	CAP, HANDLE Part #: 8ND-E5720-00-00 Required per assembly: 1 $2.39 $2.00 - + Add to cart
5	ENGINE BRACKET COMP. Part #: 8ND-F1410-00-00 Required per assembly: 1 $66.98 $58.53 - + Add to cart
6	DAMPER 2 Part #: 8ND-F1486-00-00 Required per assembly: 1 $66.98 $58.53 - + Add to cart
7	BUSH, FLANGE Part #: 8ND-RA818-00-00 Required per assembly: 1 $1.14 $0.95 - + Add to cart
8	BOLT, FLANGE Part #: 8ND-RA117-00-00 Required per assembly: 2 $2.89 $2.31 - + Add to cart
9	NUT, WITH, WASHER, M Part #: 8JP-RA375-00-00 Required per assembly: 1 $0.35 $0.25 - + Add to cart
10	CLAMP, 17 Part #: 8JP-RAB19-00-00 Required per assembly: 1 $2.85 $2.07 - + Add to cart
11	CLAMP, 3 Part #: 8ND-RAB05-00-00 Required per assembly: 1 $3.60 $2.98 - + Add to cart
12	NUT, FLANGE, M6-1.0 Part #: 8JM-RA322-00-00 Required per assembly: 1 $0.28 $0.25 - + Add to cart
13	HOSE CLAMP ASSEMBLY 1 Part #: 8JM-RAA00-00-00 Required per assembly: 2 $3.79 $3.18 - + Add to cart
14	CLAMP, 6 Part #: 8JP-RAB08-00-00 Required per assembly: 2 $2.64 $1.92 - + Add to cart
15	HOSE 2 Part #: 8ND-E243E-10-00 Required per assembly: 2 $64.98 $58.91 - + Add to cart
16	MEMBER 4 Part #: 8ND-F2824-00-00 Required per assembly: 1 $18.48 $15.26 - + Add to cart
17	PLATE, ENGINE, MOUNT Part #: 8NV-F145B-00-00 Required per assembly: 1 $279.99 $274.29 - + Add to cart
18	BOLT, FLANGE Part #: 8ND-RA118-00-00 Required per assembly: 2 $1.14 $0.95 - + Add to cart
19	BOLT, FLANGE Part #: 8ND-RA121-00-00 Required per assembly: 2 $3.50 $2.81 - + Add to cart
20	DAMPER, RUBBER, 1 Part #: 8NV-F1485-00-00 Required per assembly: 2 $42.99 $37.33 - + Add to cart
21	SCREW Part #: 8ND-RA209-00-00 Required per assembly: 4 $3.39 $2.81 - + Add to cart
22	NUT, FLG., LOCKING Part #: 8JP-RA360-00-00 Required per assembly: 2 $1.15 $0.83 - + Add to cart
23	BOLT, FLG., M8X1.25 Part #: 8JP-RA186-00-00 Required per assembly: 5 $0.45 $0.32 - + Add to cart
