Front Fork replacement parts for 2024 Honda CL500A

OEM Parts Honda 2024 Honda CL500A Front Fork

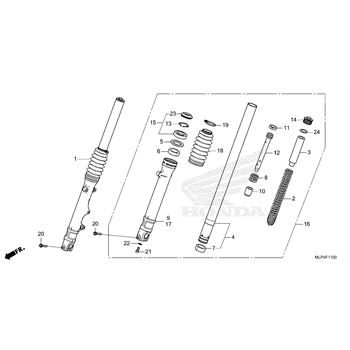

FRONT FORK Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

F 11
001	FORK ASSEMBLY, R. FR. Part #: 51400-MLP-AA1 Required per assembly: 1 $361.53 $288.32 - + Add to cart
002	SPRING, FR. FORK Part #: 51401-MLP-AA1 Required per assembly: 2 $45.49 $36.28 - + Add to cart
003	COLLAR, SPRING Part #: 51402-K87-A31 Required per assembly: 2 $5.97 $5.43 - + Add to cart
004	PIPE, FR. FORK Part #: 51410-K3S-JA1 Required per assembly: 2 $151.15 $120.54 - + Add to cart
005	RING, BACK-UP Part #: 51412-MB4-003 Required per assembly: 2 $11.18 $9.55 - + Add to cart
006	BUSH, GUIDE Part #: 51414-MFJ-A51 Required per assembly: 2 $8.71 $7.55 - + Add to cart
007	BUSH, SLIDER Part #: 51415-MFJ-A51 Required per assembly: 2 $8.71 $7.55 - + Add to cart
008	SPRING, FR., REBOUND Part #: 51416-MM8-881 Required per assembly: 2 $7.07 $6.23 - + Add to cart
009	CASE, R. (LOWER) Part #: 51420-K3S-JA1 Required per assembly: 1 $169.64 $135.29 - + Add to cart
010	PIECE, OIL, LOCK Part #: 51432-MV9-003 Required per assembly: 2 $28.77 $23.98 - + Add to cart
011	RING, PISTON Part #: 51437-MM5-003 Required per assembly: 2 $6.39 $5.66 - + Add to cart
012	PIPE, SEAT Part #: 51440-K3S-JA1 Required per assembly: 2 $12.14 $9.69 - + Add to cart
013	RING Part #: 51447-KA4-711 Required per assembly: 2 $5.44 $4.89 - + Add to cart
014	BOLT, FR., FORK Part #: 51454-MM9-671 Required per assembly: 2 $44.46 $37.06 - + Add to cart
015	SEAL, SET, FR., FORK Part #: 51490-MKL-D81 Required per assembly: 2 $29.12 $24.29 - + Add to cart
016	FORK ASSEMBLY, L. FR. Part #: 51500-MLP-AA1 Required per assembly: 1 $359.98 $287.09 - + Add to cart
017	CASE, L. (LOWER) Part #: 51520-K3S-JA1 Required per assembly: 1 $160.71 $128.17 - + Add to cart
018	BOOT, FR. FORK Part #: 51611-K3S-JA1 Required per assembly: 2 $30.16 $24.06 - + Add to cart
019	BAND, FR., FORK, BOOT Part #: 51612-K87-A31 Required per assembly: 2 $31.42 $28.16 - + Add to cart
020	BOLT, FLANGE, (8X45) Part #: 90109-MR7-000 Required per assembly: 2 $5.92 $5.30 - + Add to cart
021	BOLT, SOCKET, (8MM) Part #: 90116-KV3-701 Required per assembly: 2 $5.26 $4.78 - + Add to cart
022	WASHER (8MM) Part #: 90544-283-000 Required per assembly: 2 $3.89 $3.54 - + Add to cart
023	DUST SEAL (SHOWA) Part #: 91251-MKL-D81 Required per assembly: 2 $12.36 $10.01 - + Add to cart
024	O-RING (33.2X2.4) Part #: 91356-KF0-003 Required per assembly: 2 $5.12 $4.65 - + Add to cart
