Reverse Motor replacement parts for 2024 Honda GL1800B

OEM Parts Honda 2024 Honda GL1800B Reverse Motor

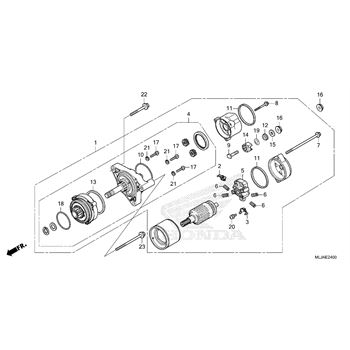

REVERSE MOTOR Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

E 24
001	MOTOR, ASSEMBLY, REVERSE Part #: 31200-MKC-A01 Required per assembly: 1 $713.03 $594.43 - + Add to cart
002	BRUSH, SET, A, CARBON Part #: 31201-MEW-921 Required per assembly: 1 $9.34 $8.07 - + Add to cart
003	BRUSH, SET, B, CARBON Part #: 31202-MEW-921 Required per assembly: 1 $15.17 $12.64 - + Add to cart
004	GEAR ASSEMBLY Part #: 31202-MKC-A01 Required per assembly: 1 $411.33 $332.95 - + Add to cart
005	HOLDER, BRUSH Part #: 31203-MEW-921 Required per assembly: 1 $9.01 $7.78 - + Add to cart
006	SPRING, CARBON, BRUSH Part #: 31204-MEW-921 Required per assembly: 4 $15.08 $12.19 - + Add to cart
007	BOLT SET Part #: 31205-HM8-B61 Required per assembly: 2 $4.70 - + Add to cart
008	BOLT (M5X30) Part #: 31205-MKC-A01 Required per assembly: 3 $3.03 $2.81 - + Add to cart
009	BOLT, TERMINAL Part #: 31206-MEW-921 Required per assembly: 1 $3.60 - + Add to cart
010	RING, SEAL Part #: 31207-179-711 Required per assembly: 1 $5.10 - + Add to cart
011	RING Part #: 31207-HP5-601 Required per assembly: 2 $3.11 $2.90 - + Add to cart
012	INSULATOR Part #: 31208-MEW-921 Required per assembly: 1 $8.36 $7.27 - + Add to cart
013	RING Part #: 31208-MG9-004 Required per assembly: 1 $6.07 $5.42 - + Add to cart
014	STOPPER, TERMINAL Part #: 31209-MEW-921 Required per assembly: 1 $12.42 $10.05 - + Add to cart
015	WASHER Part #: 31210-MEW-921 Required per assembly: 1 $2.81 $2.61 - + Add to cart
016	NUT-WASHER (6MM) Part #: 90071-MB0-000 Required per assembly: 2 $3.04 $2.83 - + Add to cart
017	BOLT (5X39) Part #: 91001-MN5-008 Required per assembly: 3 $3.78 - + Add to cart
018	O-RING (59.6X2.4) Part #: 91309-MN5-008 Required per assembly: 1 $10.04 $8.62 - + Add to cart
019	O-RING Part #: 91320-MB0-000 Required per assembly: 1 $3.47 $3.15 - + Add to cart
020	SCREW-WASHER (5X12) Part #: 93892-05012-08 Required per assembly: 1 $2.18 $2.02 - + Add to cart
021	WASHER, SPRING, (5MM) Part #: 94111-05000 Required per assembly: 3 $2.17 $2.00 - + Add to cart
022	BOLT, FLANGE, (8X38) Part #: 95701-08038-00 Required per assembly: 2 $2.52 $2.33 - + Add to cart
023	BOLT, FLANGE, (8X60) Part #: 95701-08060-00 Required per assembly: 1 $2.52 $2.33 - + Add to cart
