2024 Honda SXS1000M5D PIONEER 1000-5 TRAIL - Side Cover

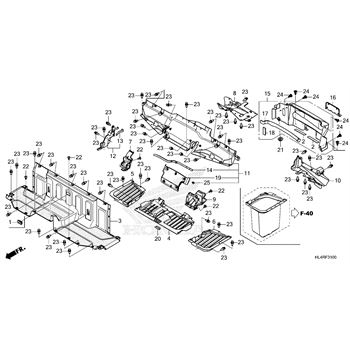

SIDE COVER Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
F 40
001

STORAGE, ASSEMBLY, L., SEAT, (LOWER)

Part #: 50410-HL4-AK0 Required per assembly: 1
$84.75
-
+
Add to cart
002

CUSHION, SEAT, STORAGE, (LOWER)

Part #: 50421-HL4-F00 Required per assembly: 2
$3.15
-
+
Add to cart
003

PLUG, DRAIN

Part #: 50422-HL4-F00 Required per assembly: 1
$2.79
$2.60
-
+
Add to cart
004

SPLASH, GUARD, L., MIDDLE

Part #: 76520-HL4-AK0 Required per assembly: 1
$100.03
-
+
Add to cart
005

CVR, R., RR., SI, *NH1*, (BLACK)

Part #: 83550-HL4-A00ZA Required per assembly: 1
$281.09
-
+
Add to cart
006

COVER, L. RR. SIDE *NH1*(BLACK)

Part #: 83650-HL4-BA0ZA Required per assembly: 1 Note: Area: 6A 7A
$340.62
$309.65
-
+
Add to cart
006

COVER, L. RR. SIDE *NH1*(BLACK)

Part #: 83650-HL4-DA0ZA Required per assembly: 1 Note: Area: 6AC 7AC
$340.62
$309.65
-
+
Add to cart
007

SCREW, PAN, (6X14)

Part #: 90106-KBV-000 Required per assembly: 8
$5.28
$4.80
-
+
Add to cart
008

BOLT, FLANGE, (6MM)

Part #: 90111-162-000 Required per assembly: 2
$3.91
$3.55
-
+
Add to cart
009

BOLT, FLANGE, (6MM)

Part #: 90111-HP0-A00 Required per assembly: 2
$2.22
$2.14
-
+
Add to cart
010

SCREW, PAN, (6X19)

Part #: 90148-HL4-F00 Required per assembly: 1
$2.67
$2.48
-
+
Add to cart
011
Honda 90653-HC4-900 Clip, Splash, Guard, (Each)

CLIP, SPLASH, GUARD, (EACH)

Part #: 90653-HC4-900 Required per assembly: 24
$1.67
$1.52
-
+
Add to cart
