Radiator replacement parts for 2024 Honda SXS1000S4X

OEM Parts Honda 2024 Honda SXS1000S4X Radiator

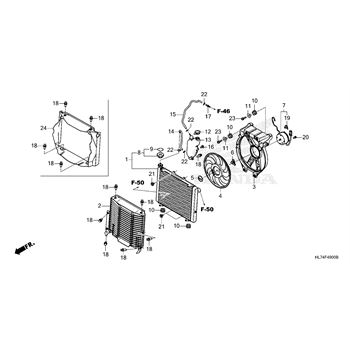

RADIATOR Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

F 49
001	RADIATOR (TOYO) Part #: 19010-HL6-AA1 Required per assembly: 1 $183.64 - + Add to cart
003	STAY, FAN, MOTOR Part #: 19015-HL6-A01 Required per assembly: 1 $140.29 - + Add to cart
004	FAN Part #: 19020-HL6-A01 Required per assembly: 1 ~~$90.67~~ $72.31 - + Add to cart
005	CLIP, FAN Part #: 19021-HL6-A01 Required per assembly: 1 ~~$20.24~~ $16.54 - + Add to cart
006	DRIVE, TORQUE Part #: 19022-HL6-A01 Required per assembly: 1 ~~$35.22~~ $29.97 - + Add to cart
007	MOTOR, ASSEMBLY, FAN Part #: 19030-HL6-A01 Required per assembly: 1 ~~$186.45~~ $175.29 - + Add to cart
008	CAP, RADIATOR Part #: 19037-GEE-710 Required per assembly: 1 ~~$35.08~~ $29.26 - + Add to cart
009	LABEL, RADIATOR, CAP Part #: 19046-PAA-A00 Required per assembly: 1 ~~$4.36~~ $3.96 - + Add to cart
010	RUBBER Part #: 19051-KA3-830 Required per assembly: 4 ~~$4.64~~ $4.22 - + Add to cart
011	COLLAR, RADIATOR, MOUNTING Part #: 19052-HR6-MF0 Required per assembly: 2 $3.07 - + Add to cart
012	CAP, RESERVE, TANK Part #: 19104-MB0-700 Required per assembly: 1 ~~$14.10~~ $11.75 - + Add to cart
013	TANK, RADIATOR, RESERVE Part #: 19110-HL6-A00 Required per assembly: 1 ~~$17.40~~ $14.44 - + Add to cart
014	TUBE, A, RESERVE, TANK Part #: 19111-HL6-A00 Required per assembly: 1 ~~$2.48~~ $2.29 - + Add to cart
015	TUBE, B, RESERVE, TANK Part #: 19112-HL6-A00 Required per assembly: 1 ~~$3.11~~ $2.90 - + Add to cart
016	SCREW, PAN, (6X14) Part #: 90106-KBV-000 Required per assembly: 1 ~~$5.28~~ $4.80 - + Add to cart
017	JOINT, BREATHER, TUBE Part #: 90652-HF7-003 Required per assembly: 1 ~~$11.04~~ $9.43 - + Add to cart
018	CLIP, SPLASH, GUARD, (EACH) Part #: 90653-HC4-900 Required per assembly: 7 ~~$1.67~~ $1.52 - + Add to cart
019	CLIP, CONNECTOR Part #: 91535-STK-003 Required per assembly: 1 ~~$7.36~~ $7.01 - + Add to cart
