Cylinder Head replacement parts for 2024 Honda SXS700M4D

OEM Parts Honda 2024 Honda SXS700M4D Cylinder Head

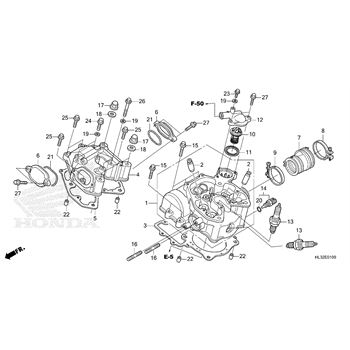

CYLINDER HEAD Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

E 01
001	CYLINDER HEAD Part #: 12200-HN8-F40 Required per assembly: 1 ~~$911.23~~ $737.62 - + Add to cart
002	GUIDE, VALVE, (OS) Part #: 12204-HN2-305 Required per assembly: 4 ~~$22.74~~ $18.95 - + Add to cart
003	GASKET, CYL, HD Part #: 12251-HN8-A61 Required per assembly: 1 ~~$55.79~~ $46.52 - + Add to cart
004	COVER, CYLINDER, HEAD Part #: 12310-HN8-000 Required per assembly: 1 ~~$208.53~~ $189.57 - + Add to cart
005	GASKET, CYL, HD, COVER Part #: 12315-HN8-000 Required per assembly: 1 ~~$19.62~~ $16.36 - + Add to cart
006	COVER, TAPT, ADJ, HOLE Part #: 12351-HN2-010 Required per assembly: 2 ~~$14.42~~ $12.14 - + Add to cart
007	INSULATOR Part #: 16211-HL3-A00 Required per assembly: 1 ~~$32.22~~ $26.87 - + Add to cart
008	BAND, INSULATOR Part #: 16218-MCA-000 Required per assembly: 1 ~~$8.77~~ $7.59 - + Add to cart
009	BAND, INSULATOR Part #: 16218-MGS-D30 Required per assembly: 1 ~~$6.16~~ $5.49 - + Add to cart
010	THERMOSTAT ASSEMBLY Part #: 19300-HN8-013 Required per assembly: 1 ~~$62.47~~ $52.10 - + Add to cart
011	RUBBER, THERMOSTAT Part #: 19305-KV3-010 Required per assembly: 1 ~~$7.29~~ $6.40 - + Add to cart
012	COVER, THERMOSTAT Part #: 19321-HL1-A00 Required per assembly: 1 ~~$31.10~~ $25.17 - + Add to cart
013	S/PLG (CPR6EB-9) Part #: 31916-HN8-F41 Required per assembly: 2 ~~$11.10~~ $9.36 - + Add to cart
014	SENSOR, WATER, TEMP Part #: 37870-KZR-601 Required per assembly: 1 ~~$10.75~~ $9.07 - + Add to cart
015	BOLT, FLANGE, (6X28) Part #: 90004-GHB-680 Required per assembly: 5 ~~$4.99~~ $4.54 - + Add to cart
016	BOLT, STUD, (8X30) Part #: 90035-HL3-A00 Required per assembly: 2 ~~$5.12~~ $4.65 - + Add to cart
017	NUT, CAP, (10MM) Part #: 90201-HA0-000 Required per assembly: 4 ~~$7.44~~ $6.76 - + Add to cart
018	WASHER, PLAIN, (10MM) Part #: 90401-437-000 Required per assembly: 4 ~~$3.83~~ $3.48 - + Add to cart
019	WASHER (6MM) Part #: 90441-706-000 Required per assembly: 6 Note: Serial end: 8734000 ~~$2.19~~ $2.03 - + Add to cart
019	WASHER, SEALING (6MM) Part #: 90441-K1B-H40 Required per assembly: 6 Note: Serial begin: 8734001 ~~$1.46~~ $1.16 - + Add to cart
020	O-RING (9.5X1.9) Part #: 91307-PLC-004 Required per assembly: 1 Note: Serial end: 8742042 ~~$4.72~~ $4.29 - + Add to cart
020	O-RING (9.5X1.9) Part #: 91307-KZR-600 Required per assembly: 1 Note: Serial begin: 8742043 ~~$1.60~~ $1.28 - + Add to cart
021	O-RING (57X2.5) Part #: 91308-500-000 Required per assembly: 2 ~~$8.43~~ $7.33 - + Add to cart
022	PIN, A, DOWEL, (12X16) Part #: 94301-12160 Required per assembly: 4 ~~$3.50~~ $3.18 - + Add to cart
023	BOLT, FLANGE, (6X12) Part #: 95701-06012-08 Required per assembly: 1 ~~$2.67~~ $2.48 - + Add to cart
024	BOLT, FLANGE, (6X20) Part #: 95701-06020-00 Required per assembly: 2 ~~$2.63~~ $2.44 - + Add to cart
025	BOLT, FLANGE, (6X25) Part #: 95701-06025-00 Required per assembly: 4 ~~$2.79~~ $2.60 - + Add to cart
026	BOLT, FLANGE, (6X65) Part #: 95701-06065-00 Required per assembly: 3 ~~$2.52~~ $2.33 - + Add to cart
027	BOLT, FLANGE, (6X20) Part #: 96001-06020-00 Required per assembly: 6 ~~$2.27~~ $2.10 - + Add to cart
